Summary of Contents for Pfeiffer Vacuum MVP 006-4

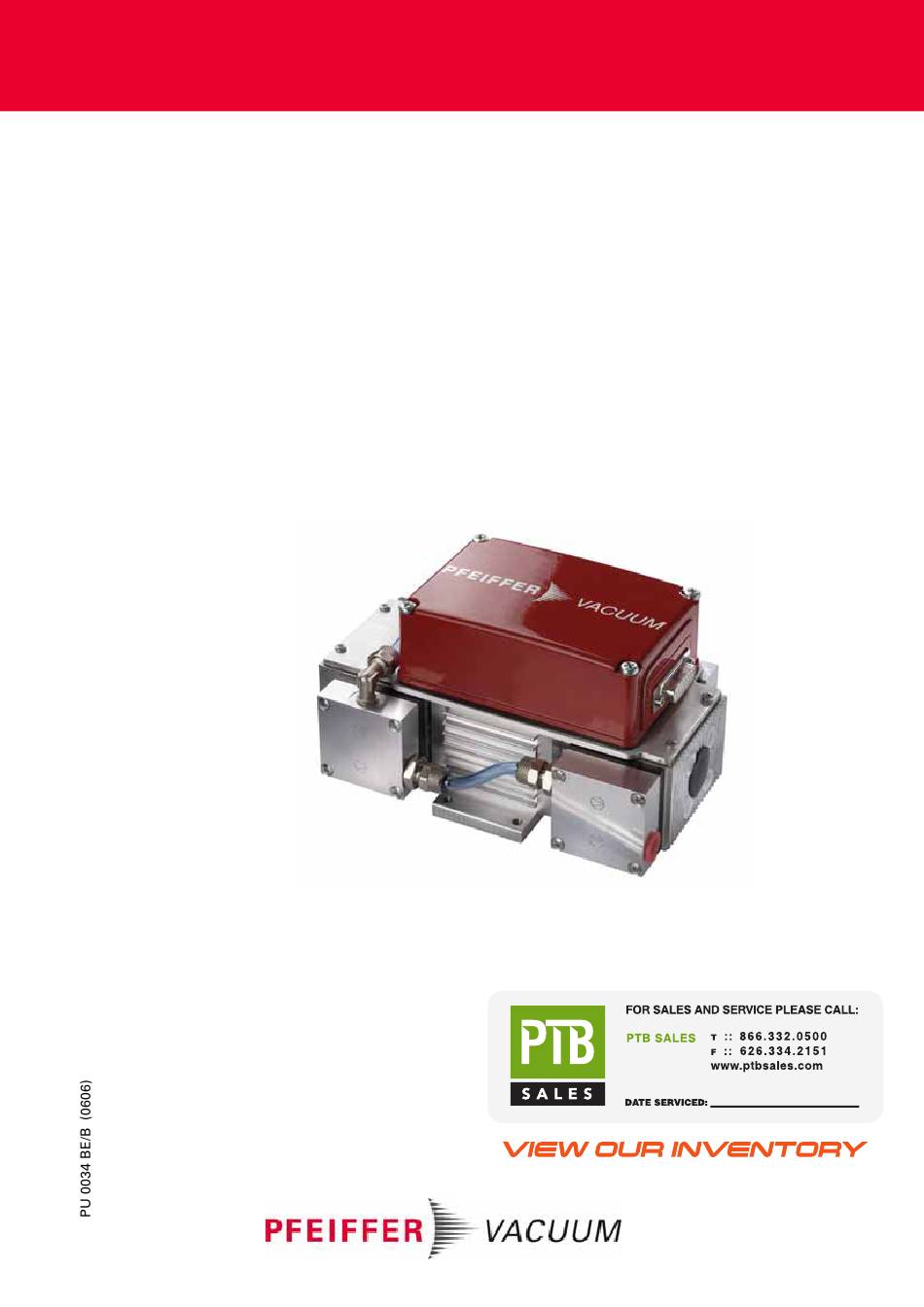

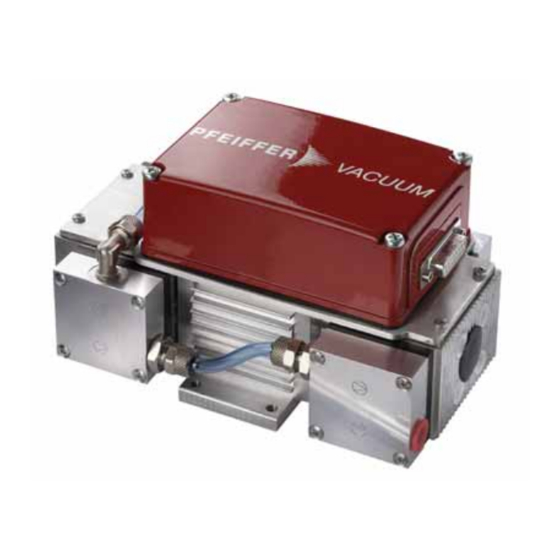

- Page 1 Betriebsanleitung • Operating Instructions Diaphragm Pump MVP 006-4...
-
Page 2: Table Of Contents
Index Page 1. Safety Precautions......3 Please note: Current operating instructions are also available via 1.1. For Your Orientation........... 4 www.pfeiffer-vacuum.net. 1.2. Pictogram Definitions......... 4 2. Understanding The Pump....5 2.1. Main Features ............ 5 3. Installation ........6 3.1. Setting Up The Pump And Location....6 3.2. -
Page 3: Safety Precautions
1. Safety Precautions Obey all relevant safety requirements (regulations and guide- Use only genuine spare parts and accessories. ☞ Otherwise safety and performance of the equipment as lines) and adopt suitable safety measures. ☞ Read and follow all the instructions in this manual. well as the electromagnetic compatibility of the equipment ☞... -
Page 4: For Your Orientation
1.1. For Your Orientation 1.2. Pictogram Definitions Danger of personal injury. Instructions in the text WARNING ➡ Operating instructions: Here you have to do something! Symbols used The following symbols are used throughout in the illustrations: Danger of an explosion. WARNING Intake connection Pressure side... -
Page 5: Understanding The Pump
Diaphragm Pump MVP 006-4 this manual may not be used without the agreement of Membrane head 1 Pfeiffer Vacuum. Only use the power supply units TPS 100 Membrane head 2 Membrane head 3 or TPS 150 to operate the pump. -
Page 6: Installation
3. Installation 3.1. Setting Up The Pump And Location 3.3. Connecting The Pressure Side Obey national safety regulations and safety requirements Pressure can rise to dangerous levels in exhaust CAUTION concerning the use of vacuum and electrical equipment. lines. Therefore, lay exhaust side lines without ➡... -
Page 7: Connecting To Power Supply
Operation with turbopump in turbo mode operation with TPS 150 If the MVP 006-4 is to be operated with a TPD 011 or TMH 071, Turbo mode must be selected. ➡ Connect power supply via connection cable (PM 061 192 -T) with TPS 150. -
Page 8: Operations
L L o o w w - - s s p p e e e e d d m m o o d d e e off. Operation in Turbo mode If the MVP 006-4 is to be operated with a TPD 011 or TMH 071, 4.2. Switching On The Pump Turbo mode must be selected. -
Page 9: What To Do In Case Of Breakdown
➡ Ambient temperature < 5 °C ☞ Warm pump ➡ Pump seized or con-rod ☞ Return the equipment to rough-running Pfeiffer Vacuum service ➡ Long narrow line? ☞ Use line with larger diameter, length Pump does not achieve ultimate total pressure or as short as possible. -
Page 10: Maintenance
6. Maintenance 6.1. Precautionary Measures During Mounting the diaphragm heads ➡ All parts should be cleaned only with alcohol or similar Maintenance Work cleaning agents. Please check diaphragm valves and seals Whenever working on the pump ensure the for mechanical damage and replace if necessary. In case CAUTION motor cannot get switched on. - Page 11 Dismantling the membrane heads Membrane head 1 Membrane head 2 Membrane head 3 Membrane head 4 10 Interhead connection 10.1 Hose fitting 11 Crosshead screw Ansicht A Ansicht B view A view B 10.1 1 1 1 4 4 4 3 3 3 2 2 2 (M4)
-
Page 12: Service
➡ A copy of the completed declaration must accompany the unit; any additional copies must be sent to your local Pfeiffer Vacuum Service Center. Please get in touch with your local Pfeiffer Vacuum represen- tatives if there are any questions regarding contamination. Decontaminate units before returning or possi- WARNING ble disposal. -
Page 13: Technical Data
8. Technical Data Size Unit MVP 006-4 Connections Intake side G 1/8“ (at the pump) Pressure side G 1/8“ (at the pump) Nominal volume flow rate at 3000 min 0,288 Nominal volume flow rate at 1000 min 0,096 Rotational speed, max. -
Page 14: Substances Which Come Into Contact With The Medium
TMH 071 / TPD 011 Swiveling screw-fitting with sealing ring G 1/8” P0 920 773 E for hose DN 6 TPS 100: Power supply unit for MVP 006-4 TPS 150: Power supply unit for MVP 006-4 + TMH 071 / TPD 011... -
Page 15: Contamination Declaration
Declaration of Contamination of Vacuum Equipment and Components The repair and/or service of vacuum components will only be The manufacturer could refuse to accept any equipment carried out if a correctly completed declaration has been without a declaration. submitted. Non-completion will result in delay. This declaration can only be completed and signed by authorised and qualified staff: 1. -
Page 16: Declaration Of Conformity
Directive 98/37/EEC, EU Electromagentic Compatibility Directive 89/336/EEC and EU Low Voltage Directive 73/23/EEC. Produkt/ Product : MVP 006-4 Angewendete Richtlinien, harmonisierte Normen und angewendete nationale Normen: Guidelines, harmonised standards, national standards which have been applied: DIN EN ISO 12100-1; -2... - Page 18 Roots pumps Dry compressing pumps Leak detectors Valves Components and feedthroughs Vacuum measurement Gas analysis System engineering Service Pfeiffer Vacuum Technology AG · Headquarters/Germany Tel. +49-(0) 64 41-8 02-0 · Fax +49-(0) 64 41-8 02-2 02 · info@pfeiffer-vacuum.de · www.pfeiffer-vacuum.net...
