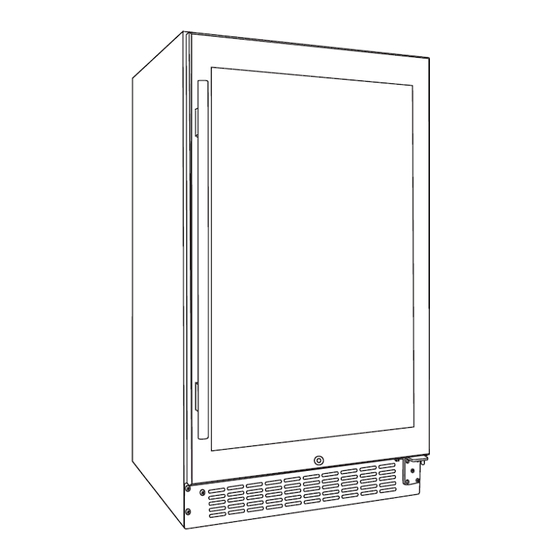

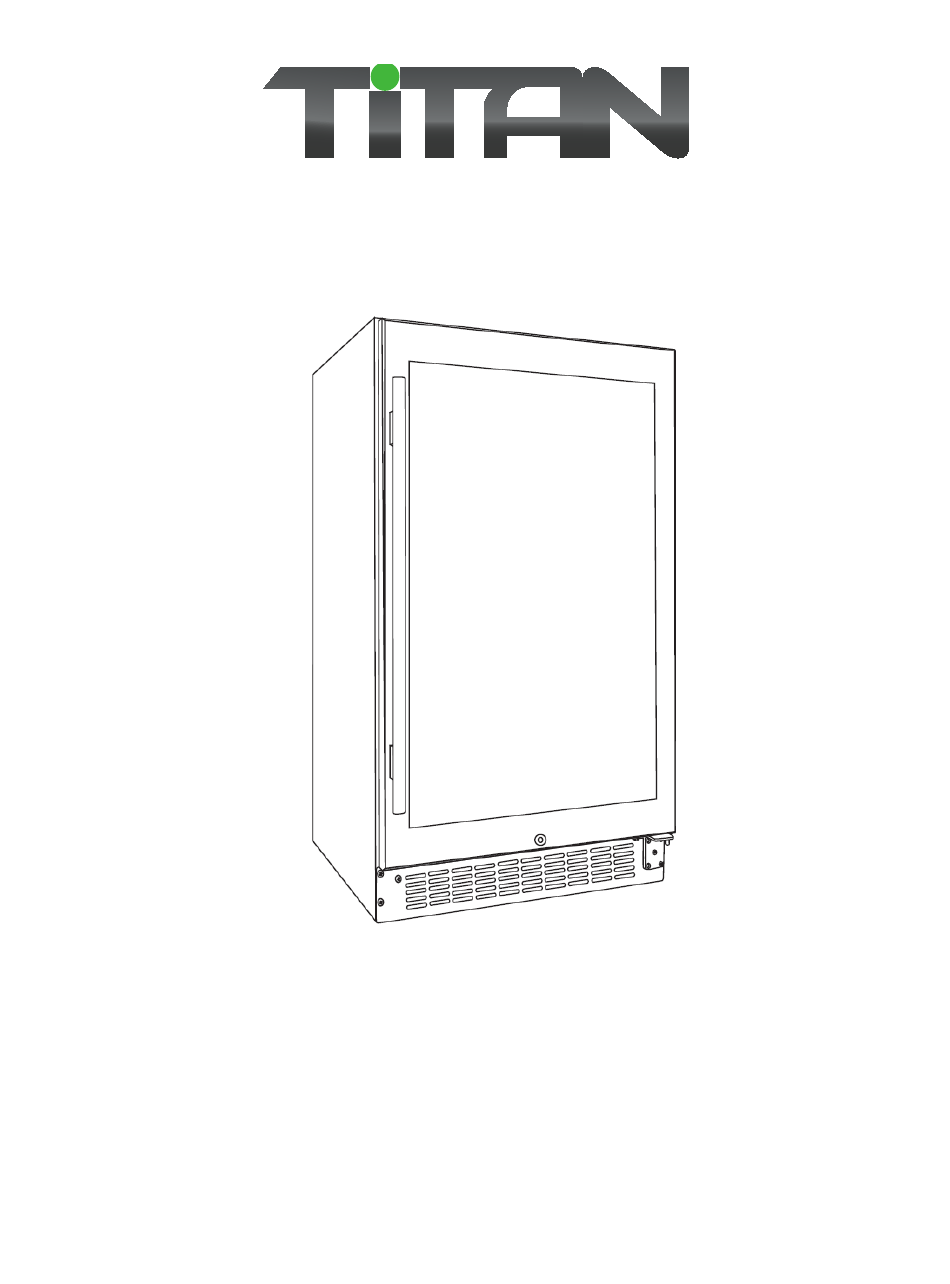

- Page 1 OWNERS MANUAL BEVERAGE COOLER TT-CBC1580SZ/TT-CBC24142SZ TT-CBC1580SZL/TT-CBC24142SZL...
-
Page 2: Table Of Contents
Introduction Identification of Parts Installation Installation Clearance Requirements Electrical Requirements Leveling the Unit Installing the Door Handle and Shelves • DOOR HANDLE • SHELVES Operation • CHECK POINTS BEFORE OPERATION • CONTROL PANEL Storage Sounds Defrosting Preparing the Unit for Storage Cleaning, Care and Maintenance • EXTERIOR • INTERIOR Energy Saving Tips Trouble Shooting 15 Specifications Warranty !IMPORTANT! Instructions Before Using Your Appliance Before use, make sure all packaging labels and materials are removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. It is advised that you keep the original box and packaging materials in case you are ever to move or ship the appliance in the future. Clean the interior surface with a soft cloth. Allow the unit stand for at least 24 hours before use; this allows the cooling system time to settle from transit. This owner’s manual is provided for reference use only. Specifications may change without prior notice. Refer to the product label on the back of your unit for the latest technical information. www.titan-appliances.com... -
Page 3: Important Safety Information
Important Safety Instructions Improper handling can cause serious damage to the Titan appliance and/or injury to the user. This appliance is designed for domestic indoor use only. Use of the unit for industrial or commercial or any other purposes will void the warranty. Please read and follow all instructions before using the appliance to reduce the risk of fire, electric shock or injury." ! SAFETY WARNING! General This product is not intend to be used or operated by children. ♦ Children should be supervised to ensure that they do not play with this appliance. ♦ This unit is heavy. Always use at least two people to move and install the appliance to ♦ prevent injuries. Do not place any other appliances or heavy objects on top of the unit. ♦ Only use in an upright position on a flat, leveled surface and with proper ventilation. ♦ Do not turn the unit upside down, on its side, or at an angle. ♦ Do not place hot or warm food or beverages into the unit until they reach room ♦ temperature. This unit is designed to be used indoors, and must be protected from weather elements ♦ such as direct sunlight, rain, snow or moisture. Do not place the unit near to ovens, grills, or other sources of high heat. ♦ Do not twist or pinch the power supply cord. ♦ Do not use solvent-based cleaning agents or abrasive solutions on the unit, which may ♦ damage or discolor the interior and exterior. Install the appliance in a well-ventilated area with ambient temperature above 50 F and ♦ below 95 The temperature range for this cooler is optimized for beverage storage. Other food ♦... - Page 4 Do not attempt to repair or replace any part of the appliance unless it is specifically ♦ instructed in the manual. Contact customer service if the unit needs service. ♦ Note: Flammable Refrigerant Used! When handling, moving and using the refrigerator: make sure to avoid either damaging the refrigerant tubing, or increasing the risk of a leak. www.titan-appliances.com...
-
Page 5: Introduction
Introduction Congratulations on purchasing your Titan appliance! We at Titan offer products with quality and features that compliment your lifestyle. To find out more about this product and our other products please visit our website at www.titan-appliances.com. This owner’s manual contains important information on how to install, use and keeping your appliance to work efficiently at its peak performance levels. To safely transport your appliance in future, please save the original product packaging. Proof of Purchase: For future reference, please write down the model number and serial number below. Model Number: Serial Number: Date of Purchase: Both the model number and the serial number are located on the product label on the back of your unit and are needed for service under warranty. We suggest stapling your receipt to this manual as it serves as the proof of your purchase and needed for service under your warranty. Before contacting customer service, please ensure that you have done the following: 1. If the unit is damaged when you receive it, please contact the retailer or dealer that sold you the appliance right away. 2. Please read this owner’s manual and follow the instructions and recommendations in order to properly install, operate and maintain the unit. 3. Always refer to the trouble-shooting section of this owner’s manual as it contains valuable information and suggestions on how to solve common issues. 4. For the latest information on this product and additional troubleshooting suggestions please visit our website at www.titan-appliances.com 5. Should you need any help on the warranty service please contact our customer services at service@titan-appliances.com www.titan-appliances.com... -
Page 6: Identification Of Parts
Identification of Parts Note: Depending on the unit’s exposure level to odor, the carbon filter should be replaced every 3-6 months. If the unit is installed in kitchen the replacement should be carried out every 3 months. Tip: Please obtain the model and the serial numbers of the unit prior to installation. www.titan-appliances.com... -
Page 7: Installation
The appliance must be placed in its upright position for at least 24 hours before plugging in and powering on to allow the compressor’s oil to settle. WARNING: Unpacking the Appliance 1. Always have two or more people to shift and install the unit to avoid back or other injuries. 2. Remove packaging materials carefully. Any shipping tape and glue from your appliance should be removed before using. 3. Never use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners when removing the tape or glue. These products can damage the surface of your appliance. IMPORTANT: Do not remove any safety, warning, or product information labels from your appliance. TYPES OF INSTALLATION: This appliance can be installed as a free standing or built-in unit. Keep in mind adequate ventilation and access for service is a must. 1. For free-standing installation: Allows the installation of the appliance in almost any place you desire. • Please follow the stated instructions for electrical requirements, and leveling of the appliance. • 2. For built-in installation: Allows the installation of the appliance under a counter or in a kitchen cabinet. Please ensure to • provide the required clearance space around the appliance. Please make sure to allow adequate ventilation space around and for the back of the unit. • Place the appliance in front of the installation location. Adjust the feet and place the unit flat on • the floor or on a platform depending on your installation requirements. If the electrical outlet for the appliance is behind the cabinet, plug in the appliance. • Push the appliance into position. • Do NOT install the unit behind a closed cabinet door. • www.titan-appliances.com... -
Page 8: Installation Clearance Requirements
b elow to e nsure p roper s ervice a ccess a nd v entilation. Top View - " Back of unit / " / " Door Hinge Side View / " The installation should allow adequate space for the unit to be pulled forward for servicing. The appliance should be placed on a firm and level surface and be able to support the weight when the unit is fully loaded. The appliance must be leveled in order to work properly. The feet of the appliance can be rotated to level and adjust the height of the unit. Please refer to the “Leveling the Unit” section for more details. Please ensure that a standard electrical supply (115 VAC only, 60 Hz) is properly grounded in accordance with National Electrical Code and local codes and ordinances. www.titan-appliances.com... -
Page 9: Electrical Requirements
è Failure to follow these instructions can result in fire, electrical shock, or personal injury. Please make sure you have the following: 1. Proper electrical connection before you move your appliance into its final location. 2. A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances. 3. A separate circuit, serving only your appliance is highly recommended. Use receptacles that cannot be turned off by a switch or pull chain. 4. The fuse (or circuit breaker) rating should be 3 Amps. 5. It is very important to have the appliance properly grounded to minimize possible shock hazard. The following grounding method must be strictly observed: The appliance is equipped with a power supply cord having a 3-prong grounding plug and must • be properly grounded. The cord must be plugged into a mating 3-pronged wall socket and grounded in accordance with • the National Electrical Code and local codes and ordinances. If a mating wall socket is not available, please ensure to have a properly grounded 3-prong wall • receptacle installed by a qualified electrician. Leveling the Unit IMPORTANT: Regardless of which type of installation you choose, the appliance must be properly leveled in order to work properly. The feet at the bottom of the unit can be raised or lowered individually by rotating the plastic sheaths around each of the feet. Rotate the feet until the appliance becomes level. Use a carpenter’s leveling tool to verify the leveling. You may need to make several adjustments to level the unit. Place a carpenter’s level on top of the product to see if the appliance is level from front to back and side to side. To adjust the height of the feet: 1. Turn the leveling feet to the right to lower that side of the unit. 2. Turn the leveling feet to the left to raise that side of the unit. www.titan-appliances.com... -
Page 10: Installing The Door Handle And Shelves
Installing the Door Handle and Shelves THE DOOR HANDLE: 1. Open the door, carefully pull the door gasket around the area where the handle is to be installed, and remove the two pre-installed decorative plugs from the front of the door. (Note: some models do not have decorative plugs installed.) 2. Insert the Phillips head screws through the gasket side of the door and pass through the door. 3. Align the handle with the screws and hand-tighten using a Phillips head screwdriver until the handle is flush against the door frame. (CAUTION: Do not over-tighten the screws as this may cause damage to the handle or to the stainless steel door.) 4. Carefully press the door gasket back into its original position. THE SHELVES: This appliance is equipped with glass shelves. To install: Open the door completely - make sure to open the door all the way before pulling the shelves • out of their track to prevent damaging the door gasket. Slide the shelf on the shelf track and gently push back until it stops. • Install the plastic notches. • To remove: Open the door completely- make sure to open the door all the way before pulling the shelves • out of their track to prevent damaging the door gasket. Remove all the contents sitting on the shelf, if any. • Remove both plastic notches with a screwdriver • Then proceed to pull out the shelf slowly. • www.titan-appliances.com... -
Page 11: Operation
Operation CHECK POINTS BEFORE OPERATION: Have you remove all packing materials and tape from the interior and exterior of the unit? Have you installed the unit properly by following the installation instructions? Has the unit been properly connected to the electrical outlet including proper grounding? Have you leveled the unit? Is the appliance properly located in an area where the ambient temperature is between 50°F and 95°F all year round? Is the clearance of the unit, at least 2 to 3 inches at the rear provided for proper air circulation? THE CONTROL PANEL This unit has a temperature range from 38°F to 65°F (or 3°C to 18°C) The factory preset is 43°F (6°C) BUTTONS Power Button: Press and hold for three seconds to power on the unit. Once pressed the “Power” indicator light will lit up to indicate the unit is running. Press and hold the button for three seconds again, the unit will power off and the “Power” Indicator light will turn off. Light Switch: Press this button to turn on/ off the interior LED light. Increase Temperature: To adjust the temperature, press button to increase the temperature by 1 degree increments. Decrease Temperature: To adjust the temperature, press button to lower the temperature by 1 degree increments. This unit can be displayed in Fahrenheit or Celsius. Press and hold both buttons at the same time for 5 seconds to change the setting. www.titan-appliances.com... - Page 12 This appliance memorizes and saves its set temperature. In case of a power outage, the unit adjusts to its previous temperature setting when power resumes. TEMPERATURE ALARM When the interior temperature is higher than 73 F (23 C), “HI” will be displayed on the panel and a buzzing alarm sound will go off. When the interior temperature is lower than 32 F (0 C), “LO” will be displayed on the panel, the alarm will sound and the malfunction indicator light will go off at the same time. Immediate attention is recommended. DOOR ALARM This unit is equipped with an audible alarm to alert you when the door has been left open. If at any time the door has been left open for more than 5 minutes at a time, the alarm will sound and it will continue to sound until the door is closed completely or the unit is powered off. Note: 1. Run the unit for at least 24 hours before storing your wines/beverages to allow the temperature to stabilize. 2. Please wait at least 5 minutes in between before turning the power off and back on. 3. The ambient environmental conditions determine whether your unit can reach the actual set temperature. 4. There is a temperature allowance of +/- 2 degrees Celsius. www.titan-appliances.com...
-
Page 13: Storage
Storage TT-CBC1580SZ 3 slide-out glass shelves Top shelf - 24 can capacity Second shelf - 24 can capacity Third shelf - 24 can capacity Bottom - 8 can capacity TT-CBC24142SZ 3 slide-out glass shelves Top shelf - 42 can capacity Second shelf - 42 can capacity Third shelf - 42 can capacity Bottom - 16 can capacity TT-CBC1580SZ TT-CBC-24142SZ www.titan-appliances.com... -
Page 14: Sounds
Sounds Some sounds and noises generated by this appliance may not be common to you, however most of these sounds are normal. Hard surfaces like floor and walls may make the sounds seem louder than they actually are. The following are the sounds you may be experiencing and what’s making them. • Rattling sounds – These may come from the flow of the refrigerant or the water line. Make sure nothing is stored on top of the appliance as this may damage the appliance and also create rattling sounds. • High-pitched sound – These may come from the efficient compressor. • Splashing sound – Water running from the evaporator to the water bin. • Gurgling sound -- May be generated due to the refrigerant flowing in the unit. • Fan noise – From the condenser fan circulate air within the unit. Defrosting The unit automatically defrosts under most ambient conditions and refrigerating settings. However some frost may build up under colder settings. Additionally, frost may also build up under more humid ambient conditions. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build-up. If frost prevents the door from closing properly, power the unit off until the frost melts. Use a soft absorbent towel to dry the unit. WARNING: NEVER attempt to remove frost with sharp objects. This may damage the appliance. Preparation the Unit for Storage If the appliance is not to be used for a long time, or will be moving to another place, please ensure to defrost the unit and dry the interior: 1. Disconnect the appliance from the power supply, unplugging the power from the wall socket. 2. Open the door to allow air to circulate to prevent mold, mildew and unpleasant smells to built up inside the unit. IMPORTANT: Keep the unit out of the reach of children. Take additional precautions by removing the door to prevent a child from being trapped inside the unit if necessary. WARNING: NEVER touches the electrical plug with wet hands. NEVER unplug the unit by pulling the electrical cord. www.titan-appliances.com... -
Page 15: Cleaning, Care And Maintenance
2. If the door panel is stainless steel, clean with a cloth dampened with a mild detergent and warm water solution. 3. Use a soft sponge and rinse with clean water. 4. Wipe with a soft clean towel to prevent water spotting. IMPORTANT: DO NOT use solvent based or abrasive cleaners. • NEVER use an abrasive or caustic cleaning agent. Stainless Steel can discolor when exposed to • chlorine gas and moisture. INTERIOR CLEANING 1. Turn the unit off and disconnect from power supply. 2. Open the door and remove contents and shelves. 3. Wait until the unit defrosts. 4. Wipe the interior of the unit with a clean cloth. 5. Reinsert shelves and beverages. 6. Reconnect power to the unit. Energy Saving Tips Ensure the unit is adequately ventilated and is located in the coolest area of the room. ♦ The appliance should be placed away from heat producing appliances, and out of any direct ♦ sunlight. Never obstruct the air vents. ♦ Close the door tightly and do not open the appliance too frequently or for a long period of time. ♦ Do not overload the appliance to allow air to circulate ♦ www.titan-appliances.com... -
Page 16: Trouble Shooting
The ambient temperature is • too low. builds up, try running the cooler at a warmer temperature setting, minimizing The door is opened too • the number of door openings, or unplug frequently. the unit to defrost. The door does not shut The unit is not leveled Make sure the cooler is properly leveled • • properly. properly. before operating. Clean the door gasket. • The door gasket is dirty. Make sure the door gasket is properly • • The door gasket is not installed. • installed incorrectly. Make sure the shelves are installed • The shelves are incorrectly correctly – refer to ‘Installing the Door • installed. Handle and Shelve’ Section of this manual. www.titan-appliances.com... -
Page 17: Specifications
Specifications TT-CBC1580SZL TT-CBC24142SZL MODEL TT-CBC1580SZ TT-CBC24142SZ VOLTAGE 115V/60Hz 115V/60Hz AMPS 1.5A 1.5A INPUT POWER 120W 120W CAPACITY 80 cans 142 cans POWER CORD LENGTH 5.9ft 5.9ft TEMPERATURE RANGE 38 to 65 °F 38 to 65 °F WEIGHT 77lbs 101lbs DIMENSIONS Including handle 32.1H x 25.2D x 15.0W" 33.8H x 25.2D x 23.5W" Features • Seamless stainless steel door with clear glass • Stainless steel towel bar handle • Built-in or freestanding application • Digital temperature controls w/ LED display •... -
Page 18: Warranty
PRODUCT WARRANTY ONE YEAR LIMITED WARRANTY THIS WARRANTY COVERS: The original purchaser within all states in the continental United States (excluding Hawaii and Alaska) for • one year from the date of purchase against defects in materials and workmanship under normal use and service. Titan will be responsible for all transportation costs incurred in the event that service under this warranty • is needed for the first 3 months from original purchase date. Consumer will be responsible for freight cost to Titan’s service department after 3 months to one year. Titan will repair or replace any parts found defective with new, rebuilt, or refurbished parts free of charge. • Titan reserves the right to request a defective part be returned in exchange for the replacement part. • After the one year limited warranty, any labor charges or replacement parts will be the responsibility of • the original owner of the unit. This warranty is not transferable. • THIS WARRANTY DOES NOT COVER: Shipping damage and any damage caused by improper packaging for shipment to Titan. • Cosmetic damage such as scratches and dents or other appearance defects resulting from wear and tear. • Damage while in the possession of a consumer that is not caused by a defect in material or workmanship. • Damage caused by consumer misuse, abuse, tampering, or failure to follow the care and special handling • instructions provided in the owner’s manual. Damage caused by improper installation, maintenance, negligence, commercial use, repairs, or alterations • to the product by anyone not authorized by the manufacturer. Acts of God, such as fire, flood, hurricanes, earthquakes, and tornadoes. • Products sold “as is” or by an unauthorized seller. • Freight and Insurance cost for the warranty service. • Obtaining Warranty Service: Contact Titan Customer Service at service@titan-appliances.com for troubleshooting, assistance and warranty...
