Titan TPZRCO2HT-Z3 Manual

Room CO2, Humidity and
Temperature Sensor
with Zigbee 3.0 wireless communication
The Titan Products Zigbee Z3.0 CO2, Humidity
and Temperature sensor is designed to wirelessly
monitor the environmental conditions within a
space and expose these parameters wirelessly via a
Zigbee 3.0 network.
Ideal for office, retail, school or other commercial
environments, the TPZRCO2HT-Z3 offers benefits
such as:
Drastically reduced install costs and timing
•
due to the ability to remove cabling between
sensors and controllers.
Flexibility of sensor location with the sensor
•
being battery driven and free from associated
cabling.
Accurate monitoring of temperature, CO2 and
•
humidity levels allowing paired controllers
to maintain comfortable conditions aiding
productivity of the individuals within the space.
The CO2 sensor fully supports Automatic
Background Calibration (ABC) to limit the effects of
long term sensor drift. The transmissions from the
TPZRCO2HT-Z3 room sensor are configured via the
Min/Max reporting intervals and the configured
COV (change of value) parameters set within the
relevant measurement clusters.
The TPZRCO2HT-Z3 is supplied in a white IP20
enclosure as standard.
For more information on the TPZRCO2HT-Z3 please
call the sales team on 0161 406 6480.
CO2 Automatic Background Calibration (ABC)
ABC calibration is required to stabilise the CO2
measurement to achieve optimum accuracies. This is
catered for via the ABC process.
The auto-calibration period within the sensor is set to
perform every 24 hours after power up. After initial
calibration, over time, the zero point of the sensor needs to
be re-calibrated to maintain the long term stability of the
sensor. In many applications, this can happen automatically
using the built in auto-calibration function.
For the ABC function to operate correctly, it is important
that the sensor is exposed to a low, unoccupied background
CO2 level at least once during the auto-calibration period.
t: +44 (0)161 406 6480 ● sales@titanproducts.com ● www.titanproducts.com
UK DESIGNED, DEVELOPED AND MANUFACTURED
Ref: SKU 233
Specification
Power Supply: 3.7V, 2600mAh lithium thionyl chloride
battery (AA size)
Battery Life: Up to 5 years (depending on transmission
intervals and based on default settings)
Communications: Zigbee 3.0
Transmission Frequency: 2.4GHz
Transmission Power: 8dBm
Transmission Range: Up to 60m indoor (depending on building
type)
Up to 200m outdoor (line of sight)
Measured Range: Temperature = 0 to 50°C
Humidity = 0 to 100%
CO2 = 0-2000ppm
Accuracy: Temperature = +/- 0.5°C @ 25 °C
Humidity = +/-2%
CO2 = +/-50ppm + 2% of reading
Operating Temperature: 5 to 50°C
Operating Humidity: 5-80% Non-condensing.
Wireless Module Approvals: FCC CFR 47 Part 15
DA00-1407 FCC Public Notice
Radio: EN 300 328:V1.9.1
EMC: EN 301 489-17 V2.2.1
EMC: EN 62479 2010
EMC: EN 301 489-1 V1.9.2
Safety: EN 60950-1:2006
Approvals: CE / RoHS / WEEE
Warranty Period: 24 months (excludes battery)
Enclosure: UL L94-V0 Flame Retardant Polycarbonate
Dimensions: 90mm high, 80mm wide, 29mm deep
Country of Origin: UK
Product Code: TPZRCO2HT-Z3
TPZRCO2HT-Z3/L (LED indication)

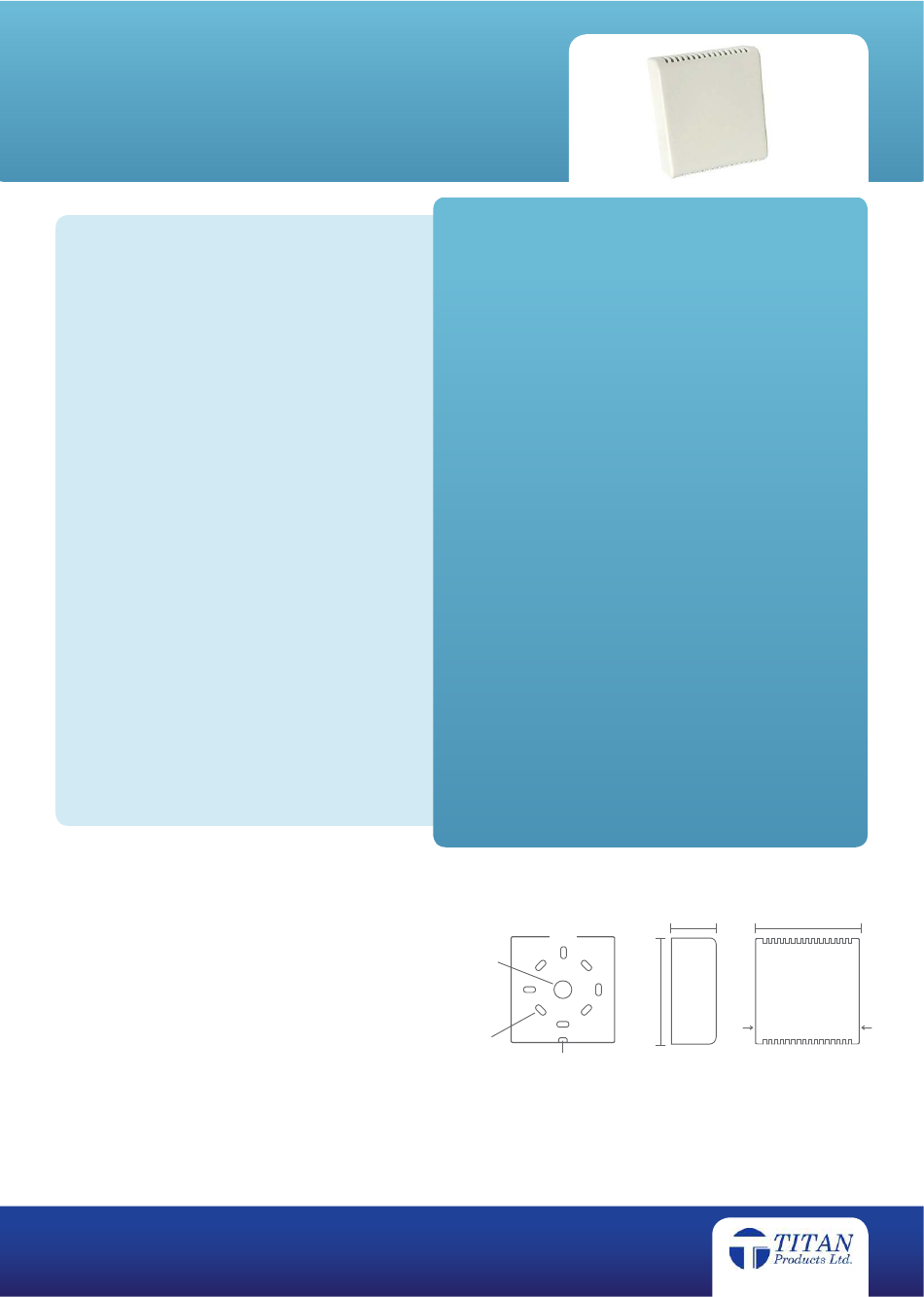

Dimensions
Conduit cut out option
15mm cable
entry
Fixing holes
Option for tamper proof
screw
29mm 80mm
90mm
Quick release (by gripping the sides
towards the bottom and pulling up)
