FRONT AND REAR PANELS

III.1 Front Panel

III.1.1 ON/OFF Button

This button turns the power on /off.

III.1.2 USB Display connector

This connector allows the user to plug and unplug the touch panel (hot insertion
is allowed).
Take into account that the touch panel menu orientation can be rotated 180º. To
rotate the display, click on 'Menu->Conf->System->Display->Rotate Display'.

III.1.3 LEDs

There are three LEDs in the front panel
 ALARM: (Blinking red) An alarm event is taking place.
 SYS: (Green) The codec is on and working.
 PWR: (Blue) Power is on.
Prodys S.L. Tel: +34 91 6896880  Fax: +34 91 6943777  Email:

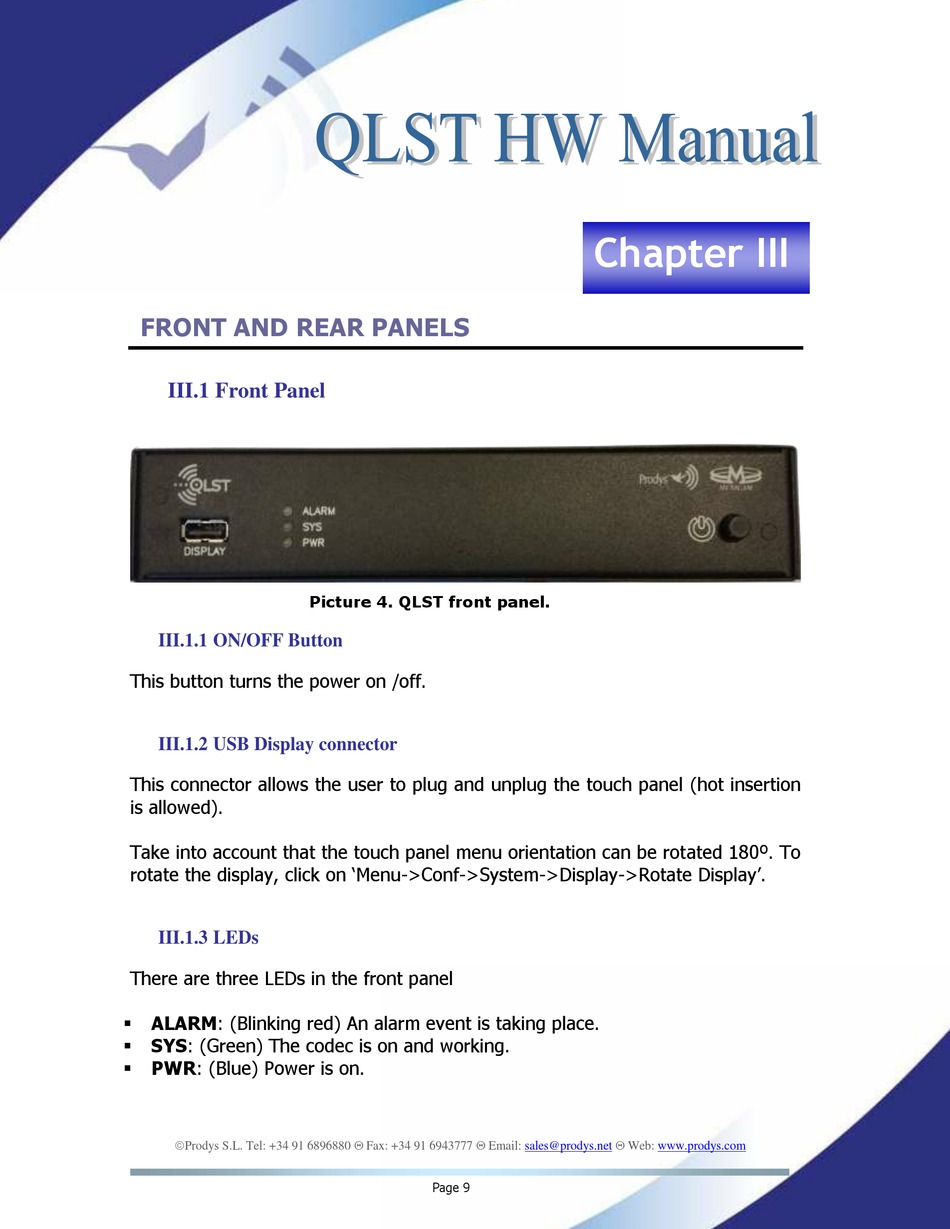

Picture 4. QLST front panel.
