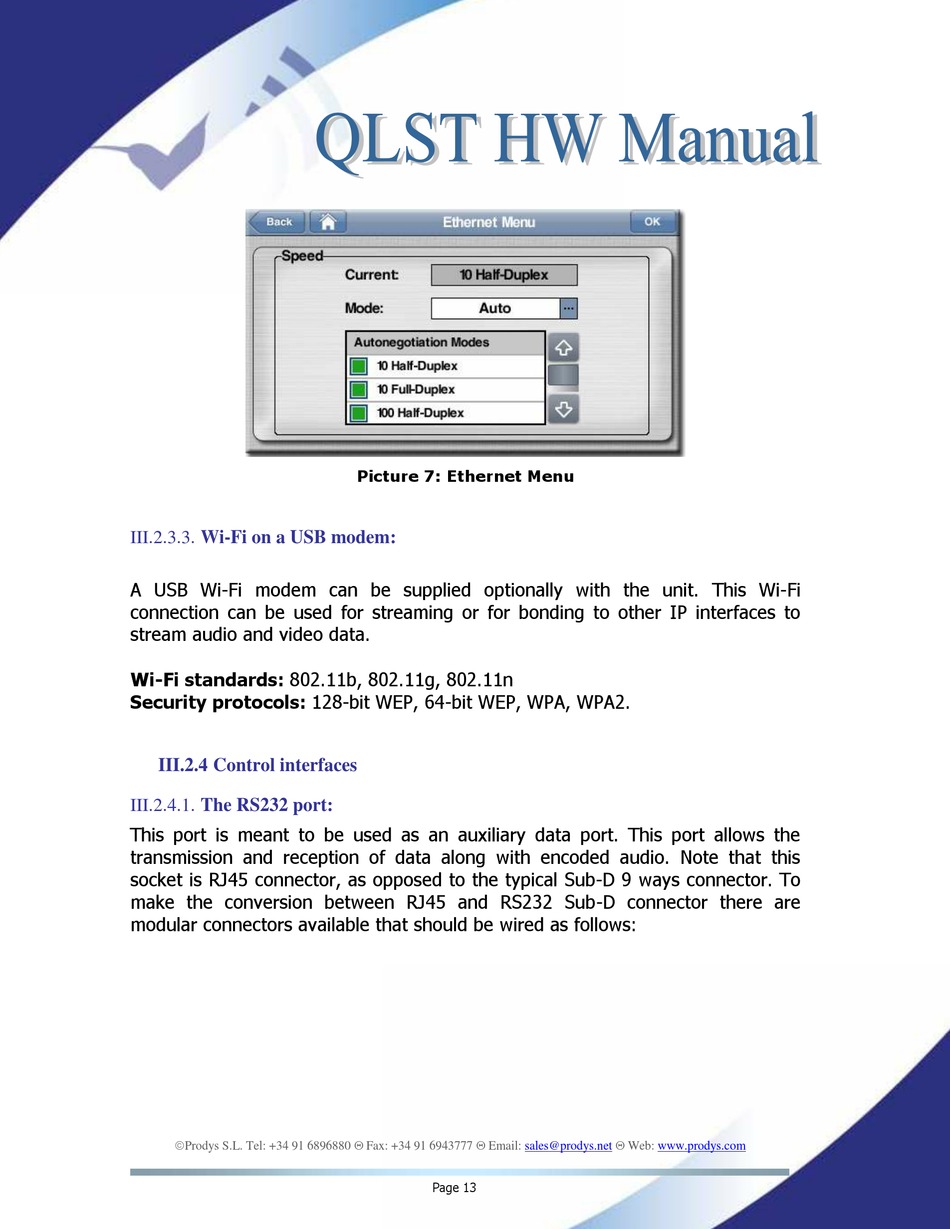

Picture 7: Ethernet Menu

III.2.3.3. Wi-Fi on a USB modem:

A USB Wi-Fi modem can be supplied optionally with the unit. This Wi-Fi
connection can be used for streaming or for bonding to other IP interfaces to
stream audio and video data.
Wi-Fi standards: 802.11b, 802.11g, 802.11n
Security protocols: 128-bit WEP, 64-bit WEP, WPA, WPA2.

III.2.4 Control interfaces

III.2.4.1. The RS232 port:

This port is meant to be used as an auxiliary data port. This port allows the
transmission and reception of data along with encoded audio. Note that this
socket is RJ45 connector, as opposed to the typical Sub-D 9 ways connector. To
make the conversion between RJ45 and RS232 Sub-D connector there are
modular connectors available that should be wired as follows:
