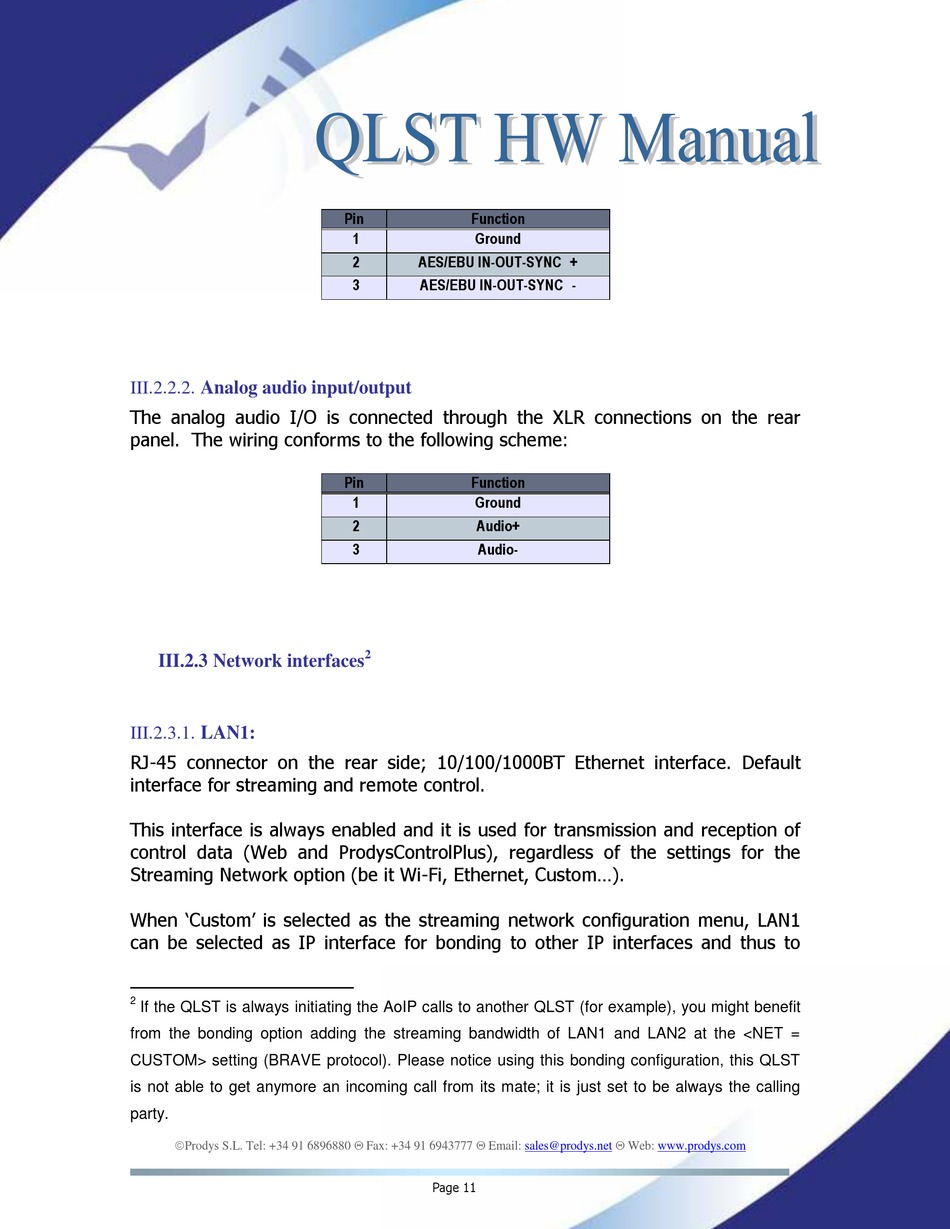

III.2.2.2. Analog audio input/output

The analog audio I/O is connected through the XLR connections on the rear
panel. The wiring conforms to the following scheme:

III.2.3 Network interfaces

III.2.3.1. LAN1:

RJ-45 connector on the rear side; 10/100/1000BT Ethernet interface. Default
interface for streaming and remote control.
This interface is always enabled and it is used for transmission and reception of
control data (Web and ProdysControlPlus), regardless of the settings for the
Streaming Network option (be it Wi-Fi, Ethernet, Custom...).
When 'Custom' is selected as the streaming network configuration menu, LAN1
can be selected as IP interface for bonding to other IP interfaces and thus to
2
If the QLST is always initiating the AoIP calls to another QLST (for example), you might benefit
from the bonding option adding the streaming bandwidth of LAN1 and LAN2 at the <NET =
CUSTOM> setting (BRAVE protocol). Please notice using this bonding configuration, this QLST
is not able to get anymore an incoming call from its mate; it is just set to be always the calling
party.
Prodys S.L. Tel: +34 91 6896880  Fax: +34 91 6943777  Email:
Pin Function
1 Ground
2 AES/EBU IN-OUT-SYNC +
3 AES/EBU IN-OUT-SYNC -
Pin Function
1 Ground
2 Audio+
3 Audio-
2
