The port is always set to 8 DATA bits, NO parity, 1 START bit and 1 STOP bit.
The bit rate can be adjusted to between 300 and 9600 bps via software.
Each QLST acts as a DCE device, therefore the connection to each of the
RS232 ports is wired in the following way:
QLST – Pin 7 connector RJ45.........................Pin 2 PC
QLST – Pin 2 connector RJ45.........................Pin 3 PC
QLST – Pin 3,6 connector RJ45.......................Pin 5 PC
Hardware handshaking signals are ignored.

III.2.4.2. Rear USB slots:

Two USB slots (Host 2.0) are available on the rear side for the connection of
memory storage devices or for future applications.
External storage should be formatted as FAT32
capacity is 2 TB.
3
NTFS format is not supported
Prodys S.L. Tel: +34 91 6896880  Fax: +34 91 6943777  Email:

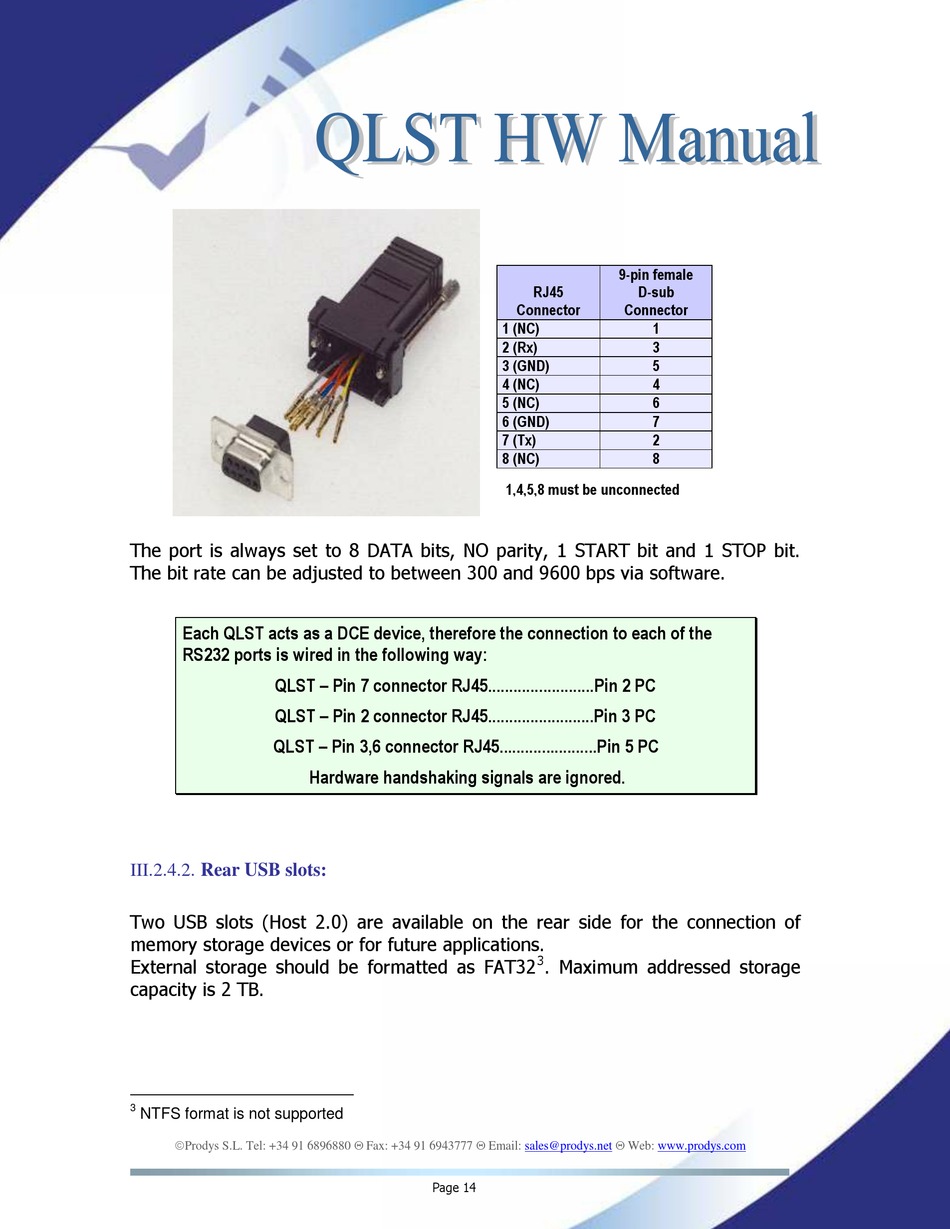

RJ45
Connector
1 (NC)
2 (Rx)
3 (GND)
4 (NC)
5 (NC)
6 (GND)
7 (Tx)
8 (NC)
1,4,5,8 must be unconnected
3
. Maximum addressed storage
sales@prodys.net
Page 14
9-pin female
D-sub
Connector
1
3
5
4
6
7
2
8
