1 - Introduction
1.3
About DynaPro Mini Components
The major components of DynaPro Mini are shown in Figure 1-1. In addition to the components shown,
the device has the following additional features:
DynaPro Mini with Bluetooth LE has a Bluetooth transceiver power button on the back.
All models have a reset button on the bottom intended for manufacturer use only. Do not press the
reset button! Doing so will activate the tamper feature and erase all injected keys; the device
will stop functioning and will have to be returned to the manufacturer for re-configuration.
DynaPro Mini| PIN Encryption Device | Installation and Operation Manual

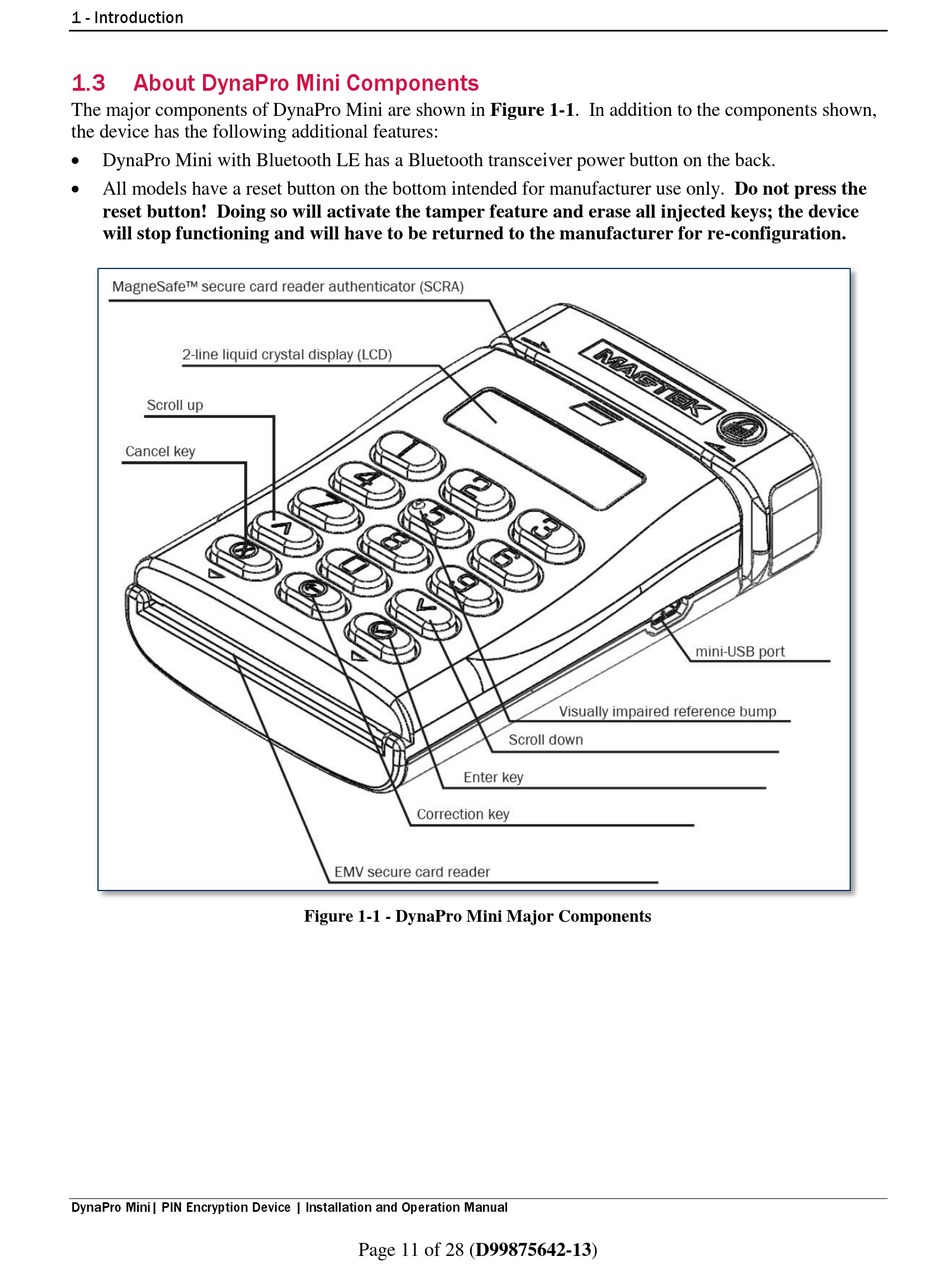

Figure 1-1 - DynaPro Mini Major Components
Page 11 of 28 (D99875642-13)
