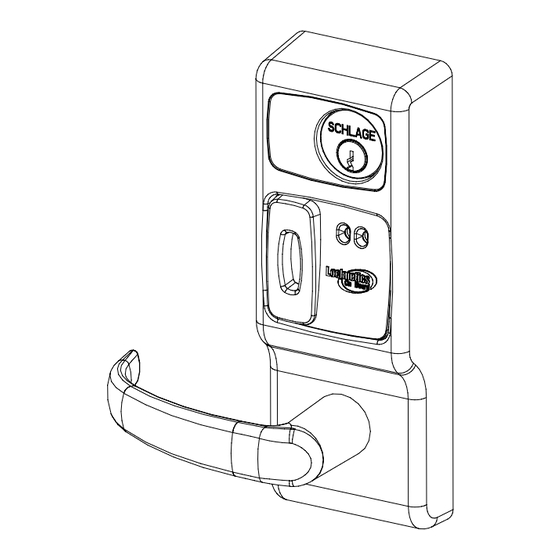

Schlage VIP 5500 Series Installation Manual

Schlage VIP 5500 Series Installation Manual

Open architecture mortise lock

Advertisement

Quick Links

The VIP 5500 series lock is a microprocessor controlled, electromechanical locking system.
It is an open architecture product designed to interface with 3rd party panels encompassing
all the features of the lock, reader, door status and egress (rex/request to exit) indication in
one fire-rated piece of hardware. The 5100 employs a heavy-duty mechanical design tested
and complying with ANSI/BHMA grade 1 standards for performance and reliability. It is pow-
ered by 12 or 24 volts DC with only four wires required - two for power and two for commu-
nications. The lock communicates with a PIB (panel interface board) which communicates
with the panel as if it were separate components of an access control system.
Operationally, the outside lever is normally locked and the inside lever always retracts the
bolt to allow egress. Electronic access control is achieved by entering an"Access Credential"
(magnetic stripe card or Prox fob or card). The panel controls the lock through the PIB.
Please refer to all instruction manuals involved in the installation before you begin.
Functions:
VIP 5594-FSA: (1" AutoBolt) - Fail Safe (unlocked)
VIP 5594-FSE: (1" AutoBolt) - Fail Secure (locked)
VIP 5596-FSA: (3/4" latch) - Fail Safe (unlocked)
VIP 5596-FSE: (3/4" latch) - Fail Secure (locked)
Models:
MG:
Magnetic stripe card reader
PX:
HID Prox card reader
Standard Monitoring Switches:
DSM:
Provides door status via data link to panel interface
KSM:
Provides mechanical key use events via data link to panel interface
REX:
Provides indication of inside lever use for request to exit input via data link
to panel interface
Options:
T3:
Track 3 card reader (data must be ABA track 2 format) - MG only
EXT:
exterior use option - MG only (PX model has this standard)
KD:
Keyed Different, includes Schlage Everest cylinder
KA:
Keyed Alike, includes Schlage Everest cylinder
LC:
Less Cylinder
SLB:
2-3/4" backset, 1/2" latch bolt
OLB:
2-3/8" backset, 1/2" latch bolt
ELB:
2-3/4" backset, 3/4" latch bolt
BEFORE YOU BEGIN:
Standard units are shipped from the factory to fit 1-3/4" doors. Verify the door thickness. If the door is not 1-3/4" thick, verify
that the door thickness option was ordered or consult factory.
PRE-INSTALLATION CHECK:
AN OPEN ARCHITECTURE SYSTEM REQUIRES AT LEAST THREE COMPONENTS - A PANEL INTERFACE BOARD (PIB), AN
ACCESS CONTROL PANEL (BY OTHERS) TO WHICH THE PIB IS CONNECTED AND THE VIP LOCK. SEE DOCUMENTATION FOR
THE ACCESS CONTROL PANEL/SOFTWARE THIS LOCK WILL BE USED WITH FOR ANY PRE-INSTALLATION TESTING
REQUIREMENTS AND REMEDIES. REFER TO THE WIRING INFORMATION INCLUDED WITH THE PIB FOR MORE INFORMATION.
This device complies with part 15 of the FCC rules. Operation is sub-
ject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including any interference that may cause undesired opera-
tion. Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Form 57033 Rev. A

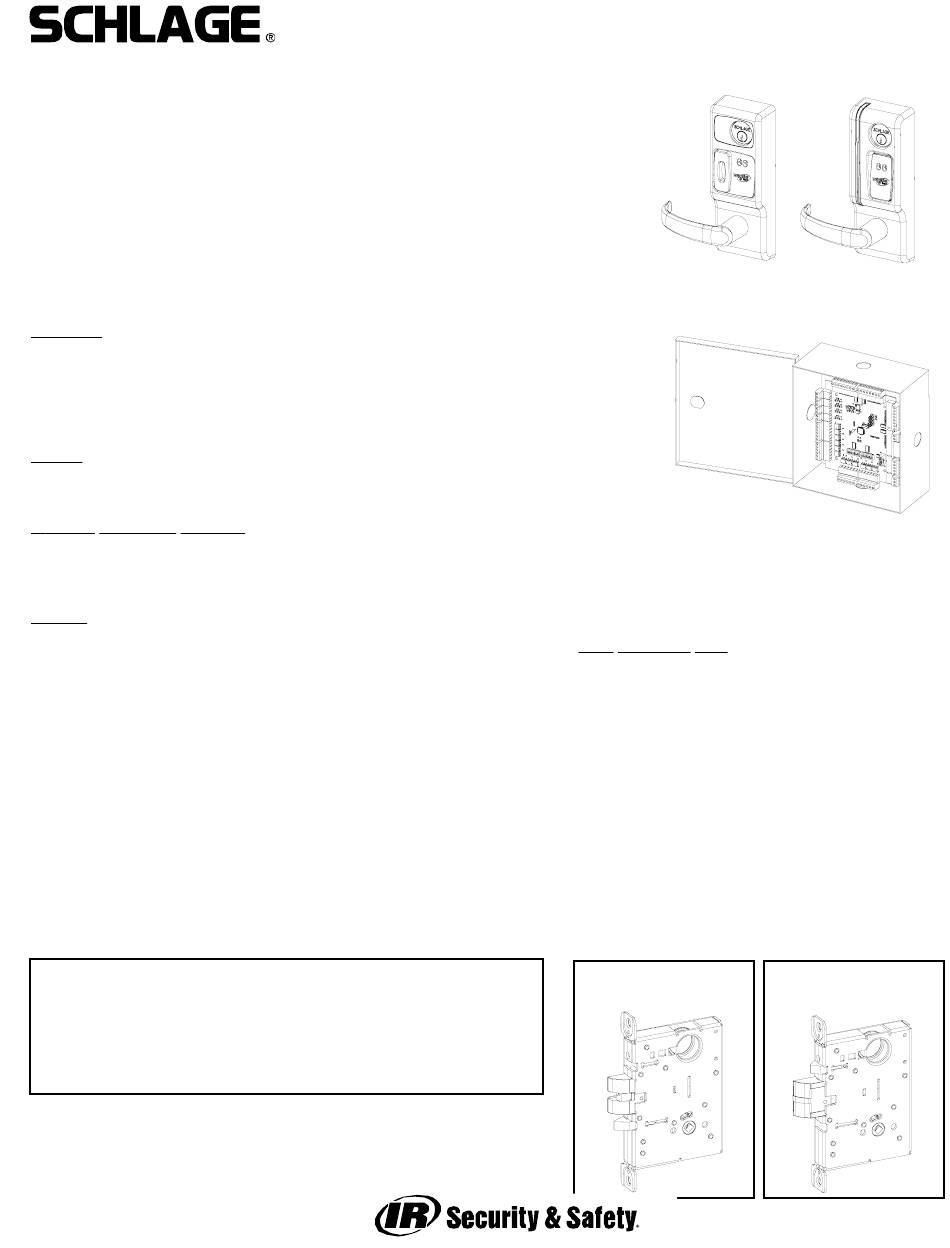

VIP 5500 OPEN ARCHITECTURE MORTISE LOCK
Door Thickness Kits:
Available in 1/8" increments from 1-3/8" to 2-1/2"
INSTALLATION MANUAL
PX
5500 MORTISE LOCK
STANDARD
MG
PIB
5500 MORTISE LOCK
AUTOBOLT
01-05-2004

Advertisement

loading
Need help?

Need help?

Do you have a question about the VIP 5500 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Schlage VIP 5500 Series

  • Page 1 VIP 5500 OPEN ARCHITECTURE MORTISE LOCK INSTALLATION MANUAL The VIP 5500 series lock is a microprocessor controlled, electromechanical locking system. It is an open architecture product designed to interface with 3rd party panels encompassing all the features of the lock, reader, door status and egress (rex/request to exit) indication in one fire-rated piece of hardware.
  • Page 2 VIP 5500 OPEN ARCHITECTURE MORTISE LOCK INSTALLATION MANUAL 1. PREP DOOR AND FRAME (IF NOT ALREADY DONE): A. Determine door hand. B. Mark the horizontal and vertical centerlines for the lock case (on door edge), strike, lever, and inside escutcheon. Note that the backset is actually 2.813”...
  • Page 3 VIP 5500 OPEN ARCHITECTURE MORTISE LOCK INSTALLATION MANUAL FSE & FSA HARD WIRED MODELS REQUIRE WIRING TO BE RUN TO THE MORTISE POCKET FROM THE HINGE SIDE. BELOW IS A SUGGESTED WAY TO DO THIS. A DOOR CORD OR ELECTRIC HINGE OR TRANSFER DEVICE MUST BE USED TO GET WIRING FROM THE FRAME TO THE DOOR.
  • Page 4 E. Line up nearest notch on nut with tab on lock washer and bend tab into notch using nut tool so nut is secure. F. Install exterior gasket (if used). G. Install upper and lower standoffs. RECOMMENDED CAM: CYLINDER SCHLAGE EVEREST: P/N B502-948 SCHLAGE CLASSIC: P/N B502-191 LOCK WASHER NUT TOOL STANDOFFS...
  • Page 5 VIP 5500 OPEN ARCHITECTURE MORTISE LOCK INSTALLATION MANUAL 3. CHANGE HAND (IF NECESSARY): CHANGE PIN NOTE: The locks are shipped as ordered from factory. Follow the steps below to reverse handing: TO CHANGE HAND OF LOCK CASE: A. With bolt fully extended, insert change pin (included in the hardware pack) into hole.
  • Page 6 VIP 5500 OPEN ARCHITECTURE MORTISE LOCK INSTALLATION MANUAL 4. INSTALL STRIKE BOX AND STRIKE: IMPORTANT! Strike included with lock MUST be used for proper operation of mortise lockset. 5. INSTALL LOCK CASE: Install lock case into edge of door. If the lock has the DSM switch, feed the wire harness though the 3/4” hole as shown below.
  • Page 7 VIP 5500 OPEN ARCHITECTURE MORTISE LOCK INSTALLATION MANUAL 7. INSTALL OUTSIDE SPINDLE, OUTSIDE ESCUTCHEON AND BASE PLATE ASSEMBLY: Install outside escutcheon and spindle then install base plate assembly onto inside of door. Use socket cap screws with washers on top standoffs and phillips head screws on lower standoffs. Note that the cam on the outside escutcheon must be positioned with the dot at the 6 o’Clock position and outside spindle must be inserted as shown in details.
  • Page 8 VIP 5500 OPEN ARCHITECTURE MORTISE LOCK INSTALLATION MANUAL 8. MAKE WIRING HARNESS CONNECTIONS : A. Plug MAIN WIRING HARNESS into PC board. B. Plug MAKE FIELD CONNECTIONS TO TERMINAL BLOCK. C. Pug in DOOR STATUS SWITCH as shown. D. Verify correct lock type setting (FSE/FSA) - see dip switch setting. Note: as ordered from the factory. E.
  • Page 9 VIP 5500 OPEN ARCHITECTURE MORTISE LOCK INSTALLATION MANUAL 9. INSTALL INSIDE SPINDLE, BATTERIES, AND INSIDE ESCUTCHEON: A. Assemble spring onto inside spindle as shown. install spindle into cam in lockset. Note that the flat side faces away from the door (See detail). B.
