WARNING: DO NOT connect the pillow speaker circuit Common to earth ground. Grounding of the Common will
defeat the isolation circuitry of the TV and possibly expose the patient to harmful shock currents should a wiring fault
occur.

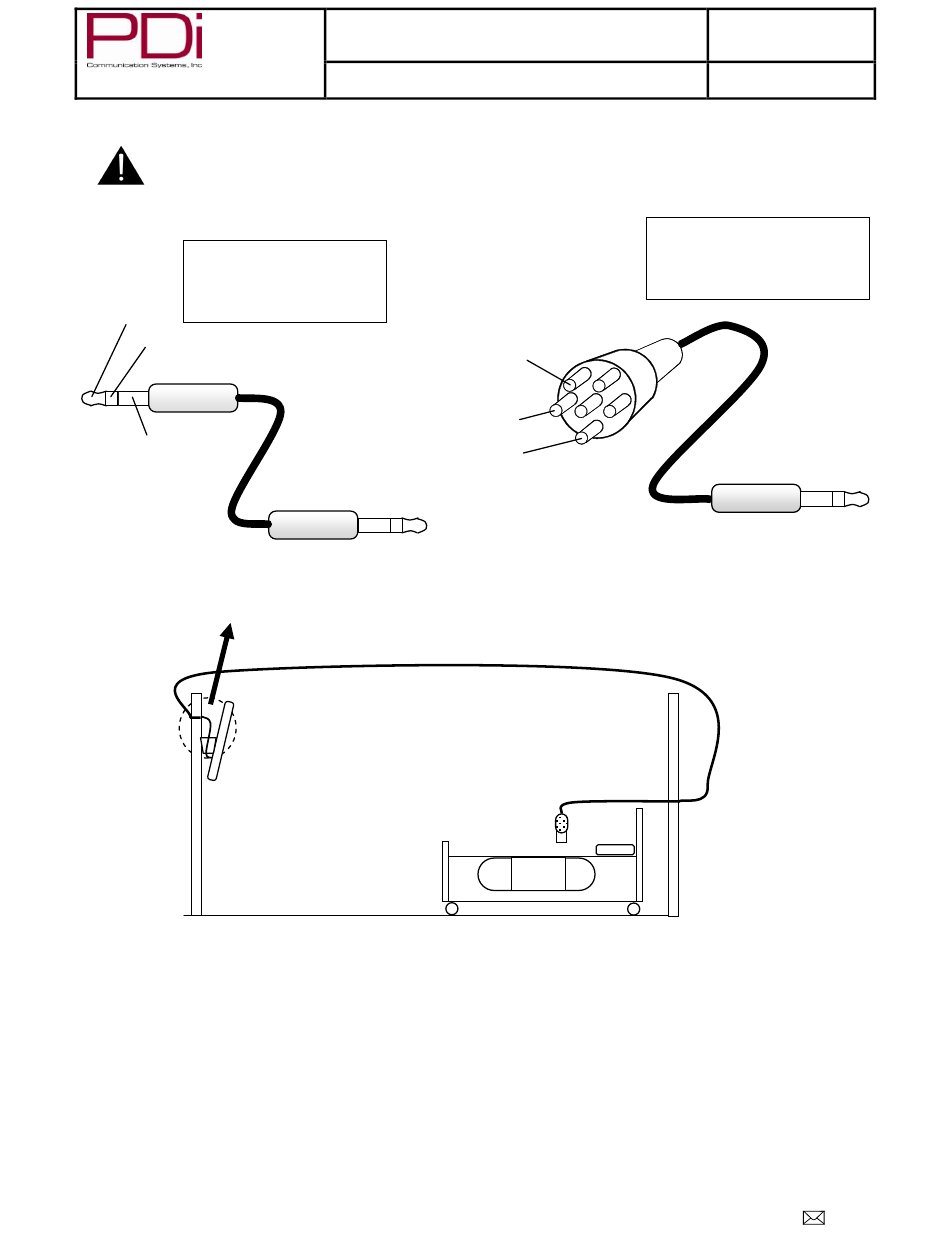

NOTE: A Jumper Cable is NOT supplied with the TV and must be ordered
separately.
¼" to ¼" Jumper
Cable
PD106-417
SPEAKER
DATA / SWITCH
COMMON
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
MODEL NUMBER:
PDI-P19LCDC
TM
Hospital-grade Television
DATA / SWITCH
ACROSS ROOM WIRING
SPEAKER
COMMON
Document Number:
PD196-149R3
Page 9 of 39
¼" to 6-Pin Jumper
Cable
PD106-416
