WALL Mounting With PD168-005 Standard Wall Bracket

(Not supplied with TV)

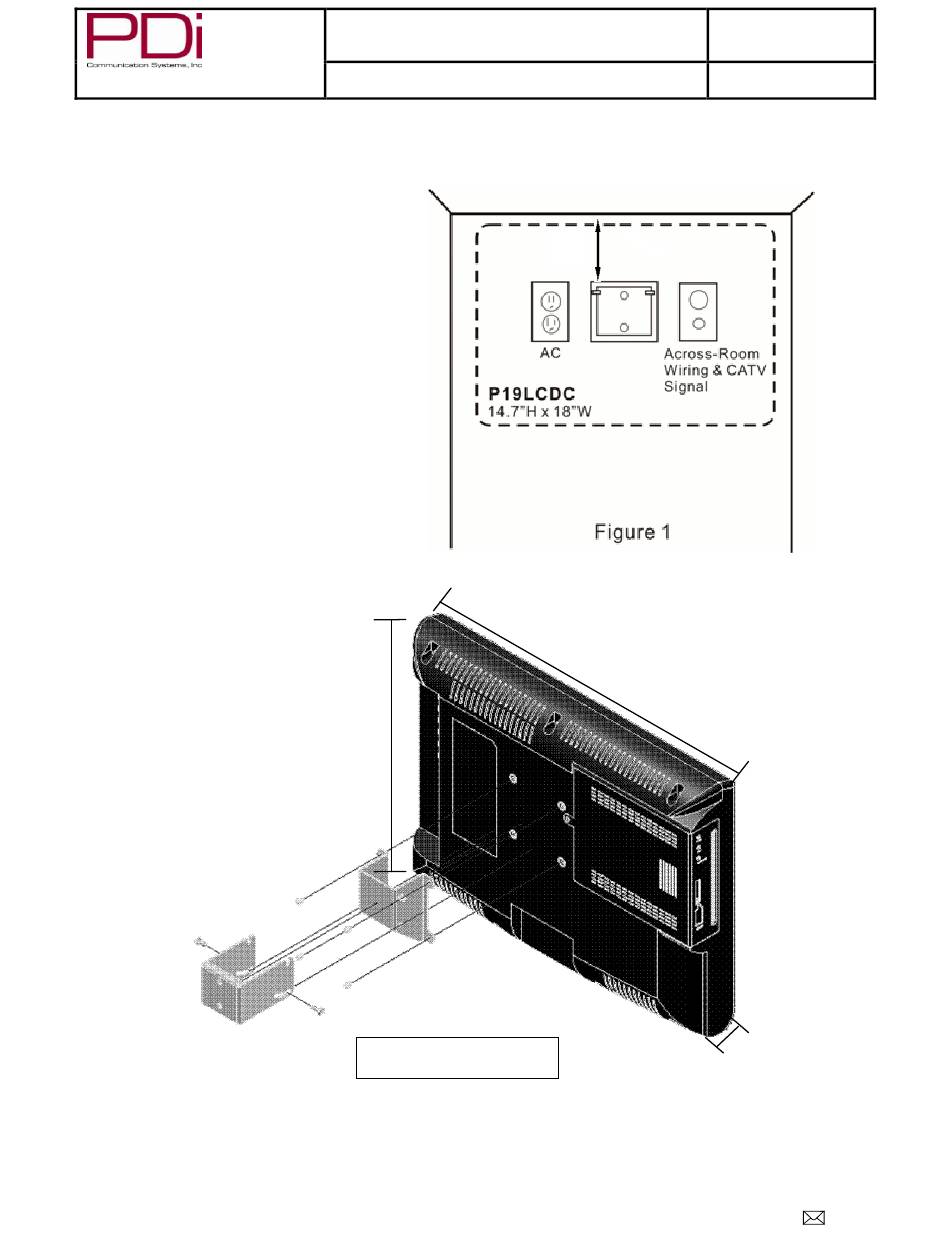

1. Refer to Figure 1. Select a location on the wall
approximately 5 inches below the ceiling.
NOTE: DO NOT locate AC, Across-Room Wiring,
and CATV Signal outlets below the Wall Bracket's
location as it will cause clearance issues and
interfere with the TV's cabinet when mounted to
the bracket.
Position the Wall Bracket and locate two mounting
holes. Secure the bracket to the wall (mounting
hardware is not included).
2. Refer to Figure 2. The TV can be mounted with 4
mm hardware (not provided) using a compatible
mount. Position the Back Mount on the LCD TV
cabinet. Attach with four M4 x 6mm screws
provided with the mount.
3. Mate the Back Mount to the Wall Bracket making
sure the pivot pins are retained in the "U" shaped
slot. Using the pilfer security driver packed with
the hardware, secure with two 10x32 pilfer screws.
4. Connect the AC power cord, Pillow Speaker
Jumper Cable, and CATV Coax Cable.
5. The TV's tilt can be adjusted by loosening both
Pilfer Screws, adjusting tilt, and then tightening the
screws.
Figure 2
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
MODEL NUMBER:
PDI-P19LCDC
TM Hospital-grade Television
13.0"
Unit Weight w/DVD: 12.5 lbs
Unit Weight w/o DVD: 11.5 lbs
Document Number:
PD196-149R3
5"
18.0"
2.75"
