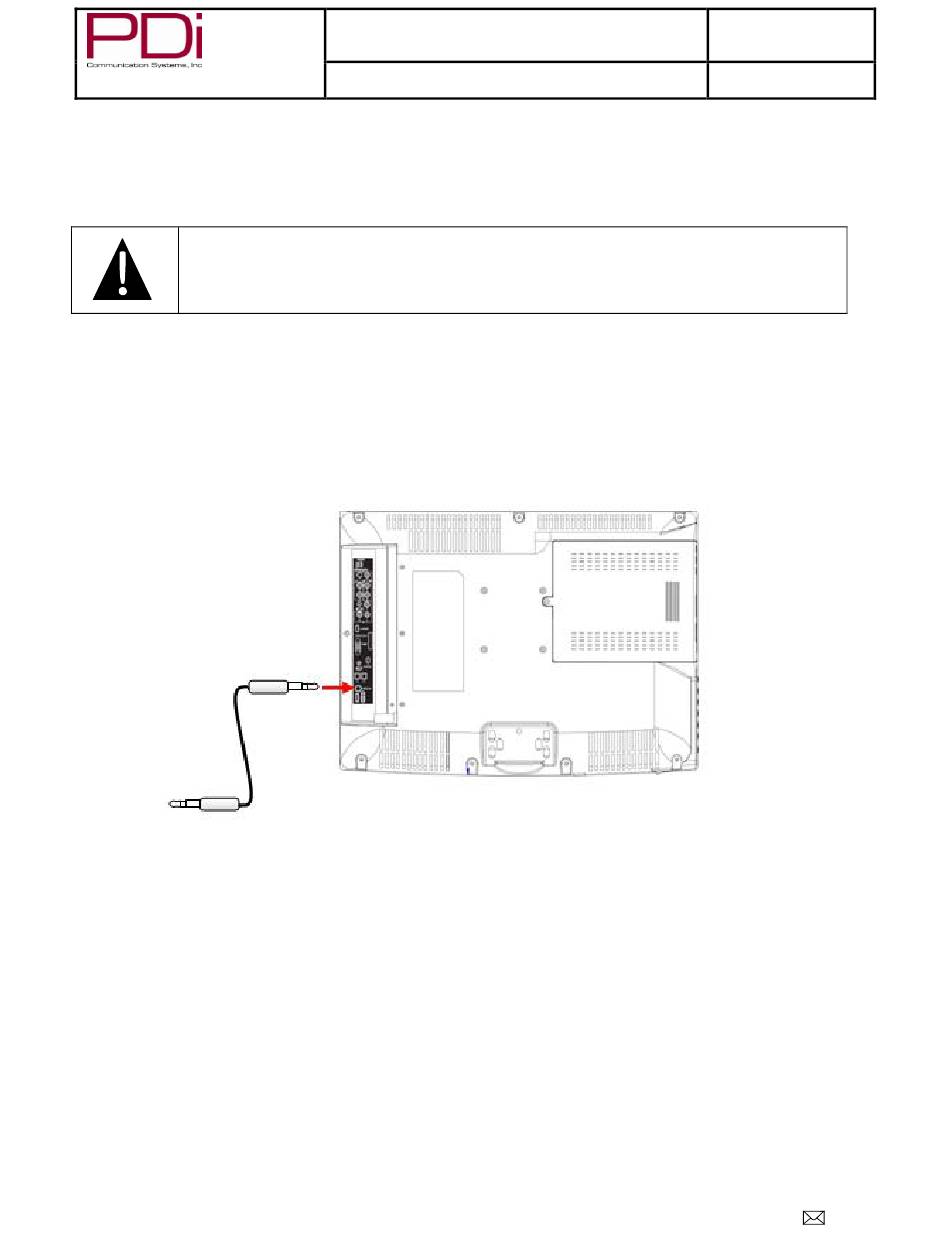

Across Room Wiring

A ¼" stereo style pillow speaker (pendant control) jack is located on the TV's connections panel.

This TV is designed to work with either a digital pillow speaker that generates digital style control codes or a single-button analog

(switch-style) pillow speaker. A rear panel mounted switch allows use of different brands of pillow speakers: Zenith, Philips, and

RCA compatible pillow speakers.

CAUTION: Confirm the pillow speaker type and set the side switch appropriately

BEFORE connecting the pillow speaker to the TV. Failure to follow this procedure

could result in damage to the pillow speaker and/or TV.

Select the appropriate brand of digital pillow speaker using the recess slide switch below the PILLOW jack.

CZ for Zenith

CP for Philips

CR for RCA

OFF to disable the pillow speaker.

Connect the pillow speaker to the PILLOW jack.

Operate the pillow speaker.

To Wall Plate

Pillow Speaker

Connection
