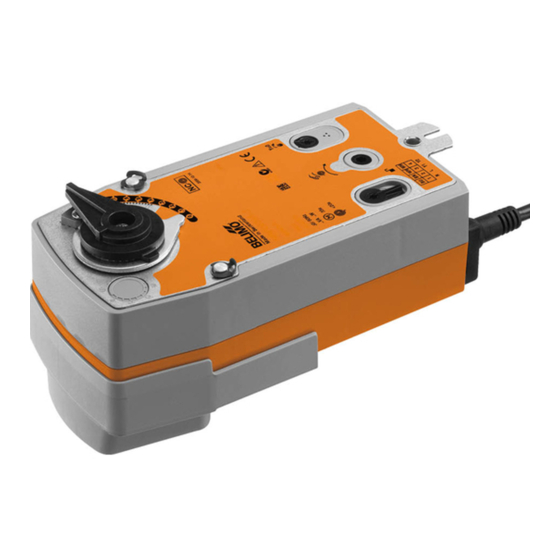

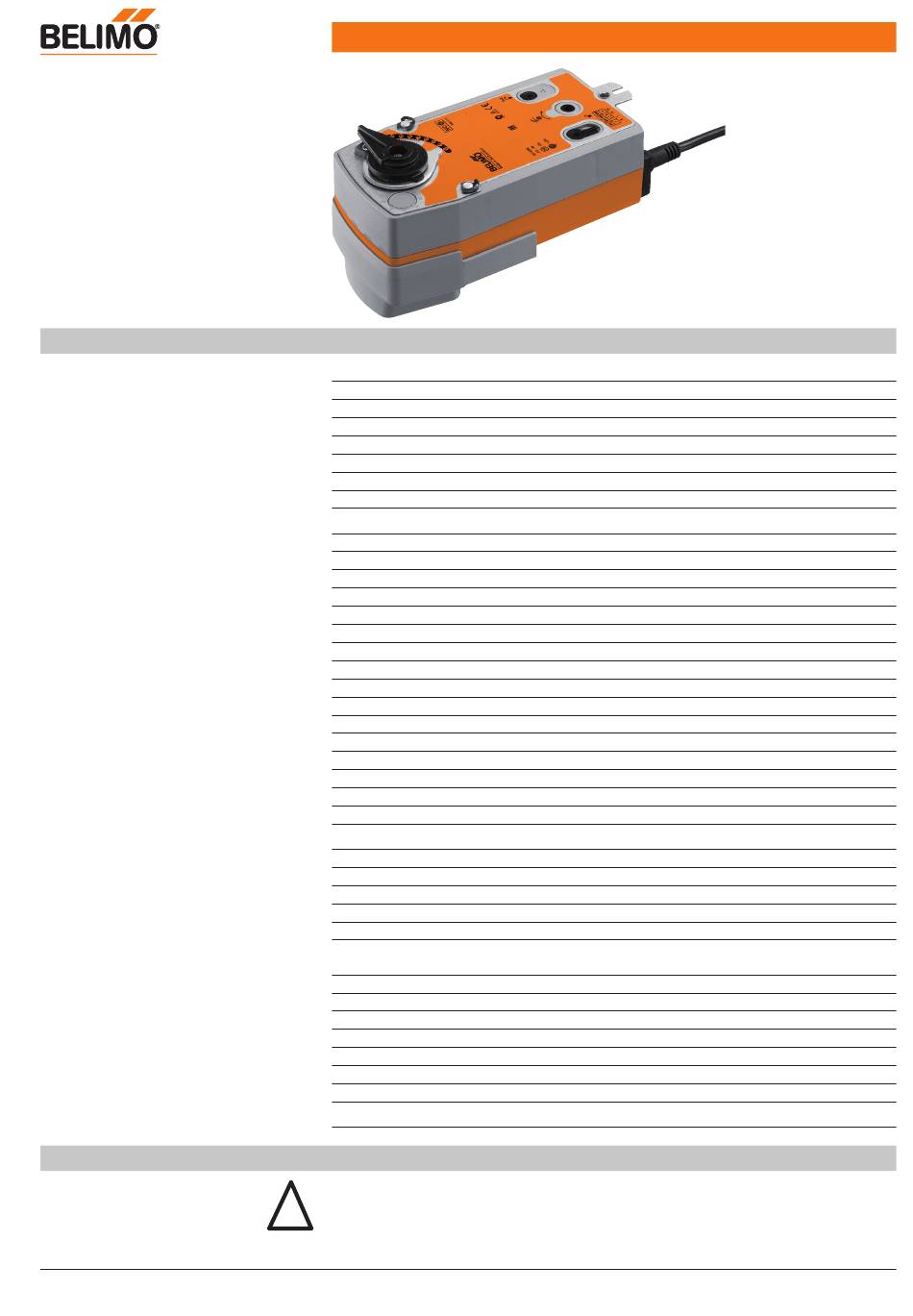

Belimo SRF24A-SR Technical Data Sheet

Modulating rotary actuator with
emergency control function for ball
valves
• Nominal torque 20 Nm
• Nominal voltage AC/DC 24 V
• Control Modulating DC (0)2...10 V
• Position feedback DC 2...10 V
• Deenergised closed (NC)
Technical data
Functional data
Safety notes
www.belimo.eu
Technical data sheet
Electrical data Nominal voltage
Nominal voltage frequency
Nominal voltage range
Power consumption in operation
Power consumption in rest position
Power consumption for wire sizing
Connection supply / control
Parallel operation
Torque motor
Torque spring return
Positioning signal Y
Positioning signal Y note
Operating range Y
Position feedback U
Position feedback U note
Position accuracy
Direction of rotation motor
Direction of rotation spring-return
Manual override
Angle of rotation
Running time motor
Running time emergency setting position <20 s / 90°
Sound power level motor max.
Position indication
Service life
Safety Protection class IEC/EN
Protection class UL
Degree of protection IEC/EN
Degree of protection NEMA/UL
EMC
Certification IEC/EN
Certification UL
Mode of operation
Rated impulse voltage supply / control
Control pollution degree
Ambient temperature
Non-operating temperature
Ambient humidity
Maintenance
Weight Weight approx.
• This device has been designed for use in stationary heating, ventilation and air
!
conditioning systems and is not allowed to be used outside the specified field of
application, especially in aircraft or in any other airborne means of transport.
SRF24A-SR • en-gb • 2014-10-15 • subject to changes
AC/DC 24 V
50/60 Hz
AC 19.2...28.8 V / DC 21.6...28.8 V
5.5 W
3 W
8.5 VA
Cable 1 m, 4 x 0.75 mm²
Yes (note the performance data)
Min. 20 Nm
Min. 20 Nm
DC 0...10 V
Input impedance 100 kΩ
DC 2...10 V
DC 2...10 V
Max. 0.5 mA
±5%
Y=0 (0V = A-AB = 0%)
Deenergised NC, valve closed (A - AB = 0%)
By means of hand crank and locking switch
90°
90 s / 90°
45 dB(A)
Mechanical
Min. 60,000 emergency positions
III Safety extra-low voltage
UL Class 2 Supply
IP54
NEMA 2, UL Enclosure Type 2
CE according to 2004/108/EC
IEC/EN 60730-1 and IEC/EN 60730-2-14
cULus according to UL 60730-1A, UL 60730-2-
14 and CAN/CSA E60730-1:02
Type 1.AA
0.8 kV
3
-30...50°C
-40...80°C
95% r.h., non-condensing
Maintenance-free
2.2 kg
SRF24A-SR
