SESUB-PAN-T2541 EVK
Bluetooth® Low Energy Module Quick Start Guide

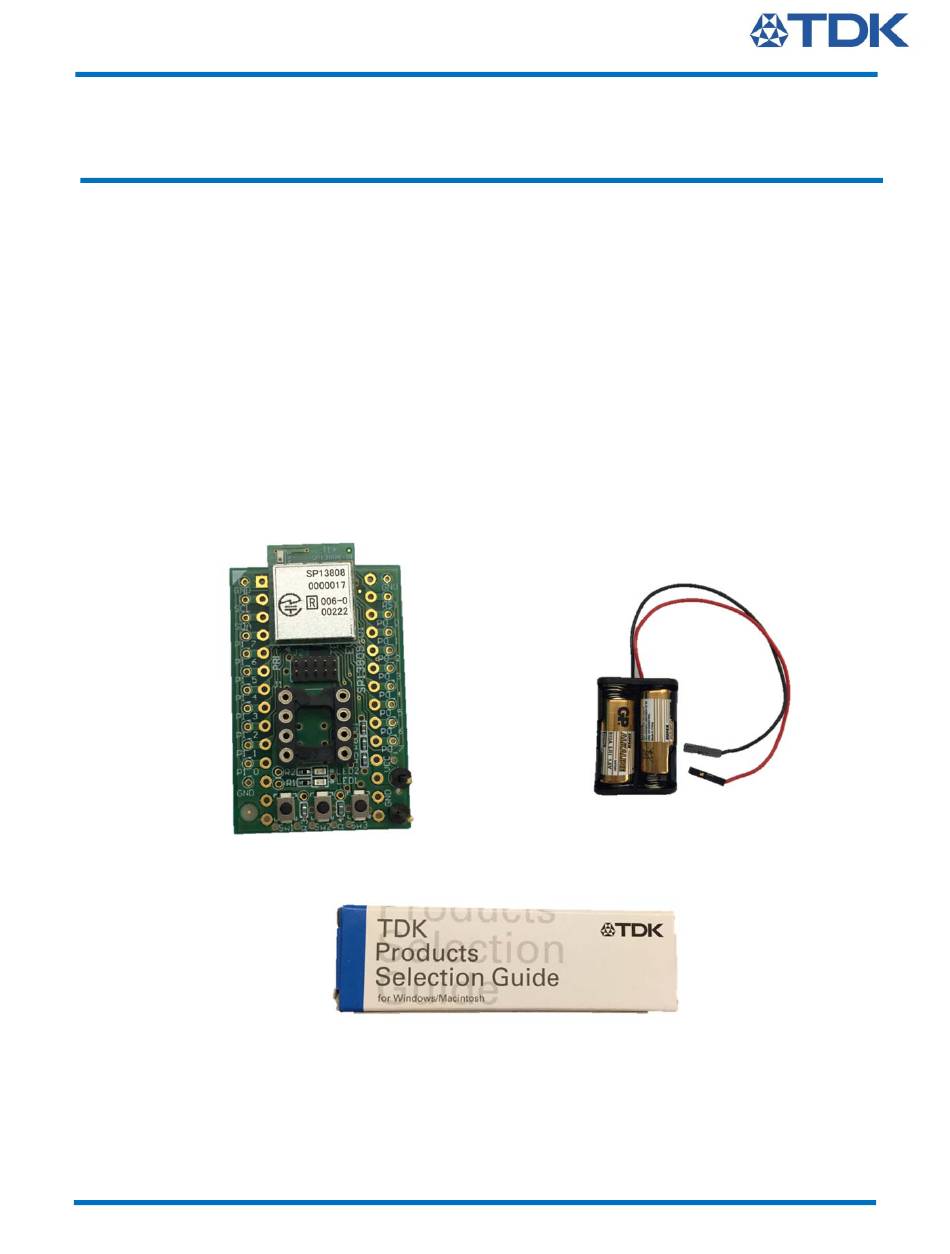

Kit Contains:
1. SP13808: SESUB-PAN-T2541 Evaluation Module
-
Equipped with the SESUB-PAN-T2541 BLE Module, a 2.4GHz band
chip antenna, and a 32.768kHz sleep clock resonator
2. SP13809: Adapter Board
-
The adapter board contains switches and LEDs used during the TI BLE
Multitool demonstration, and also a pin header for TI's CC-Debugger.
3. Battery Pack Power Supply
4. Product Selection Guide
Advertisement
Related Manuals for TDK SESUB-PAN-T2541 EVK
Summary of Contents for TDK SESUB-PAN-T2541 EVK
- Page 1 SESUB-PAN-T2541 EVK Bluetooth® Low Energy Module Quick Start Guide Kit Contains: 1. SP13808: SESUB-PAN-T2541 Evaluation Module Equipped with the SESUB-PAN-T2541 BLE Module, a 2.4GHz band chip antenna, and a 32.768kHz sleep clock resonator 2. SP13809: Adapter Board The adapter board contains switches and LEDs used during the TI BLE Multitool demonstration, and also a pin header for TI’s CC-Debugger.
- Page 2 1. Download the Texas Instruments ‘TI BLE Multitool’ App from the App Store for your Bluetooth® 4.0 compatible iOS device*. The TI BLE Multitool Icon will appear on your home screen when installed properly. *Bluetooth® 4.0 is compatible with iPhone 4s and iPad 3 Gen.
- Page 3 TI BLE Multitool App Icon 4. Make the evaluation module discoverable by pressing the SW1 button. LED1 will begin to flash on the evaluation board, and ‘TDK BLE Smart Tag’ will appear under Available Devices in the TI BLE Multitool App. LED1...
- Page 4 5. Select ‘TDK BLE Smart Tag’ from the main screen of the TI BLE Multitool App. Notice the two buttons near the top of the screen, the device information in the middle, and the RSSI value near the bottom. This value will change as the iOS device and the SESUB-PAN-T2541 evaluation module are moved closer or further from one another.
- Page 5 SmartRF Flash Programmer o TI’s Flash Programmer software “swrc044s.zip” (V1.12.7 5/6/2013) is included within the firmware folder on the TDK Products Selection Guide USB drive o The latest version of this software can also be downloaded through TI’s website by searching “SmartRF Flash Programmer”. –...
- Page 6 2. Save the swrc044s.zip file to your PC. Open the zip file from the location where it was saved and run the .exe executable file to install the TI SmartRF Flash Programmer. 3. Follow the automatic prompts to install the software.
- Page 7 4. Launch the SmartRF Flash Programmer software by clicking the icon below on your desktop.
- Page 8 5. Connect the SESUB-PAN-T2541 EVK to the CC-Debugger, and then connect the CC-Debugger to the PC using the mini USB cable. When the USB cable is connected, the PC should automatically prompt you to update the driver as long as the software from Step 3 has been installed.
- Page 9 7. Install the latest version of firmware for the SESUB-PAN-T2541 EVK Module. Select “Program CCxxxx SoC or MSP430” from the “What do you want to program?” dropdown Make sure that the CC-Debugger is highlighted in the System-on-Chip menu ...
