Summary of Contents for TDK R520M

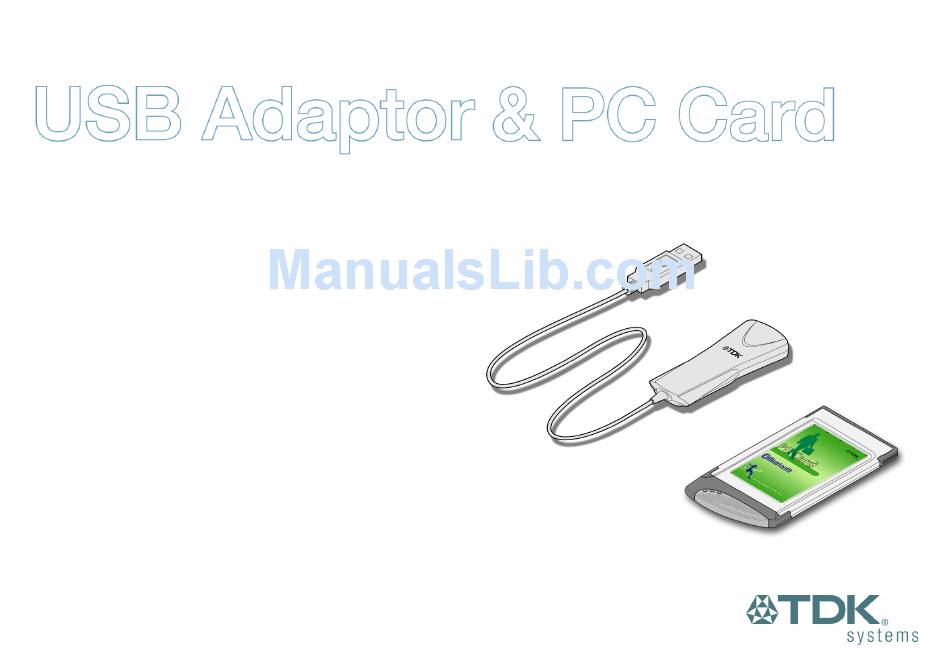

  • Page 1 Bluetooth Solutions...

  • Page 2: Table Of Contents

    Installing the Hardware ..................................5 Bluetooth Configuration....................................6 My Bluetooth Places ....................................8 Device Discovery ....................................9 Service Discovery ....................................10 Bluetooth Services (Profiles)................................11 Pairing Guide ......................................13 Ericsson R520m....................................14 Ericsson T39m ....................................16 Ericsson T68/T68i ....................................18 Sony Ericsson P800...................................20 Nokia 6210......................................21 Nokia 6310/6310i ....................................22 Nokia 7650......................................23 Nokia 8910/8910i ....................................24...

  • Page 3: Introduction

    Introduction Bluetooth is a short range wireless communication technology. It is designed to replace the traditional cable connections currently used to link compatible devices. These can be cable connections between computers and printers, computers and mobile phones and between mobile phones and headsets. Bluetooth is designed to operate in the internationally recognised ISM (Industrial Scientific and Medical) frequency band.

  • Page 4: Getting Started

    Getting Started Installing the Software Note: Do not connect your Bluetooth USB Adaptor or insert your Bluetooth PC Card until you have completed the install procedure detailed below. 1) Insert the CD into the CD/DVD drive on your PC. The CD should start automatically and present you with an installation menu. If the CD fails to start automatically, click on the Start button, select Run and type D:\Setup.exe (assuming your CD/DVD drive is D) then press Enter or click OK.

  • Page 5: Installing The Hardware

    Installing the Hardware Bluetooth USB Adaptor Bluetooth PC Card 1) Insert the Bluetooth USB Adaptor into the USB port. 1) Insert the Bluetooth PC Card into a free PC Card Slot. 2) Windows will inform you that new hardware has been 2) Windows will inform you that new hardware has been discovered and that it is being installed.

  • Page 6: Bluetooth Configuration

    Bluetooth Configuration After successful installation of the software and hardware you should have a new item on the Windows taskbar. This is the Bluetooth tray icon. Bluetooth Tray Icon Bluetooth Tray Icon Windows 2000 Windows XP Right-click on it, select Advanced Configuration and you will see the following screen.
  • Page 7 To check your hardware is working click on the Hardware tab. If the Device Status is showing Device Not Found then your USB Adaptor or PC Card has not been detected by the software. If the device is not plugged in, insert it and select this hardware option again. Note: There are more details about the Bluetooth Configuration Panel in the Bluetooth help guide.

  • Page 8: My Bluetooth Places

    My Bluetooth Places After installation of the Bluetooth software you will have a new icon on your desktop. This is the My Bluetooth Places icon. My Bluetooth Places - Desktop Icon Double-click on this icon to bring up My Bluetooth Places.

  • Page 9: Device Discovery

    Device Discovery Windows 98/Me/2000 Double-click on Find Bluetooth Devices. A search for other Bluetooth devices within radio range will start automatically. If any devices are discovered they will be displayed. Windows XP Click on View devices in range. A search for other Bluetooth devices within radio range will start automatically.

  • Page 10: Service Discovery

    Service Discovery Each device you have discovered will have services you can access. To find out which services a device supports double click on that device. You will then see all the services listed, providing the services are compatible and the device has not gone out of range or been switched off.

  • Page 11: Bluetooth Services (Profiles)

    Bluetooth Services (Profiles) The Bluetooth Serial Port allows you to establish a The Dial-Up Networking (DUN) service allows you to access and use the modem on another Bluetooth device to dial out, typically serial connection to a Bluetooth serial port on another to an Internet Service Provider (ISP) to browse the internet and Bluetooth device.
  • Page 12 LED Status Bluetooth USB Adaptor Bluetooth PC Card The USB Adaptor is designed to meet USB specification 1.1 and The PC Card is a type II PC Card. It incorporates an integral incorporates an integral antenna. antenna. Each LED indicates the following LED Description Function Each LED indicates the following Data...

  • Page 13: Pairing Guide

    Pairing Guide Pairing (also referred to as bonding) is the process of associating Bluetooth devices with each other. It is advisable to pair with frequently used Bluetooth devices. This will establish a permanent security link between the devices and enable quick access to the services provided, without the need to enter passkeys.

  • Page 14: Ericsson R520M

    6 Double-click My Bluetooth Places on the desktop. 7 Double-click Find Bluetooth Devices. 8 Wait while discoverable Bluetooth devices that are in range are discovered. 9 Right-click your R520m phone shown in the list of devices found and select Pair Device. Bluetooth PIN Code Request...
  • Page 15 10 Enter a passkey of your choice (the passkey can be up to 16 characters long and must be numerical). 11 Click OK. 12 Your Ericsson phone will prompt you to Add to paired devices. 13 Press Yes. 14 Enter the same passkey on your phone. 15 Press Yes.

  • Page 16: Ericsson T39M

    Ericsson T39m 1 From the standby screen, press to enter the menu. 2 Press 5 to enter the Extras menu. 3 Select Bluetooth. 4 Press 2 to select Paired devices. 5 Select Add device and choose Phone accepts. Note: If the Add device option in the Paired devices menu is greyed out and unselectable, the Bluetooth option may be disabled. Return to the Bluetooth menu, press 4 for Operation Mode and set the mode to On or Automatic.
  • Page 17 10 Enter a passkey of your choice (the passkey can be up to 16 characters long and must be numerical). 11 Click OK. 12 Your Ericsson phone will prompt you to Add to paired devices. 13 Press Yes. 14 Enter the same passkey on your phone. 15 Press Yes.

  • Page 18: Ericsson T68/T68I

    Ericsson T68/T68i 1 From the standby screen, move the joystick to the right to enter the menu. 2 Press 8 to enter the Connect menu. 3 Select Bluetooth. 4 Press 2 to select Paired devices. 5 Select Add device and choose Phone accepts. Note: If the Add device option in the Paired devices menu is greyed out and unselectable, the Bluetooth option may be disabled.
  • Page 19 10 Enter a passkey of your choice (the passkey can be up to 16 characters long and must be numerical). 11 Click OK. 12 Your Ericsson phone will prompt you to Add to paired devices. 13 Press Yes. 14 Enter the same passkey on your phone. 15 Press Yes.

  • Page 20: Sony Ericsson P800

    Sony Ericsson P800 1 Tap and go to Control panel > Connections > Bluetooth. 2 Tap Settings and set the Operation mode to Discoverable. 3 Double-click My Bluetooth Places on the desktop. 4 Double-click Find Bluetooth Devices. 5 Wait while discoverable Bluetooth devices that are in range are discovered. 6 Right-click your P800 phone shown in the list of devices found and select Pair Device.

  • Page 21: Nokia 6210

    Nokia 6210 The Nokia Connectivity Battery (LRW-1) brings Bluetooth functionality to the Nokia 6210. Note: You need to check that your 6210 can support the Bluetooth Connectivity Battery. • Switch on your Nokia phone with the Connectivity Battery attached. The icon will be shown briefly in the top left corner of the phone display if the phone can support the Bluetooth Battery.

  • Page 22: Nokia 6310/6310I

    Nokia 6310/6310i Note: Bluetooth may not be enabled on your Nokia 6310/6310i. If you can see the icon in the top left corner of the phone display then Bluetooth is enabled. To enable Bluetooth, press Menu and select Bluetooth. Press Select and set Bluetooth to On. 1 Double-click My Bluetooth Places on the desktop.

  • Page 23: Nokia 7650

    Nokia 7650 Note: Bluetooth may not be enabled on your Nokia 7650. If you can see the icon near the top right corner of the phone display then Bluetooth is enabled. To enable Bluetooth, press the menu key, select Connect. then Bluetooth. Set Bluetooth to On. 1 Double-click My Bluetooth Places on the desktop.

  • Page 24: Nokia 8910/8910I

    Nokia 8910/8910i Note: Bluetooth may not be enabled on your Nokia 8910/8910i. If you can see the icon in the top left corner of the phone display then Bluetooth is enabled. To enable Bluetooth, press Menu and select Bluetooth. Press Select and set Bluetooth to On. 1 Double-click My Bluetooth Places on the desktop.

  • Page 25: Hscsd

    9600bps. The HSCSD solution enables higher rates 43,200bps at+chsn=6,0,0,0 by using multiple channels, allowing subscribers to enjoy faster Internet access and e-mail. Ericsson R520m/T39m/T68/T68i/P800 Note: Contact your service provider for details on availability, Connection Extra Setting supported connection rates and to subscribe to this service.

  • Page 26: Frequently Asked Questions

    Can I use my Bluetooth headset with my TDK Bluetooth PC Card? Frequently Asked Questions Yes. Full audio support is available in version 1.3.2.7 of the TDK How do I find the Bluetooth Device Address (BDA) of my device? Bluetooth software.

  • Page 27: Technical Support

    This product is suitable for indoor use only. or our helpdesk at ESD (Elecro Static Discharge) support@tdksystems.com If your TDK Bluetooth device is affected by ESD, it is Regulatory Information recommended that you restart any Bluetooth processes that were active at the time.

  • Page 28: Safety Statements

    Safety Statements Important Please note the following: This equipment has been tested and found to comply with the Please note the two following Underwriters Laboratories Inc.’s limits for a Class B digital device, pursuant to part 15 of the FCC notices: Rules.

  • Page 29: Technical Information

    Technical Information Bluetooth USB Adaptor Bluetooth PC Card Supported operating systems Supported operating systems Windows 98 (Second Edition) Windows 98 (Second Edition) Windows Me (Millennium Edition) Windows Me (Millennium Edition) Windows 2000 Windows 2000 Windows XP Windows XP Power consumption - normal: 35mA Power consumption - normal: 113mA...

  • Page 30: Glossary

    Inquiry / Discovery Glossary Process by which a Bluetooth unit transmits inquiry messages in order to discover the other Bluetooth units that are active within the Authentication coverage area. Any Bluetooth unit that received the inquiry Process of verifying the identity of the user at the other end of a message may respond to the inquiring device with information link.

  • Page 31: Warranty

    TDK shall at its option supply a replacement part or request return of equipment, freight prepaid, to its designated facility for repair. In the event that no fault is found on a product returned for repair, TDK reserves the right to charge the customer its standard published repair charge.
