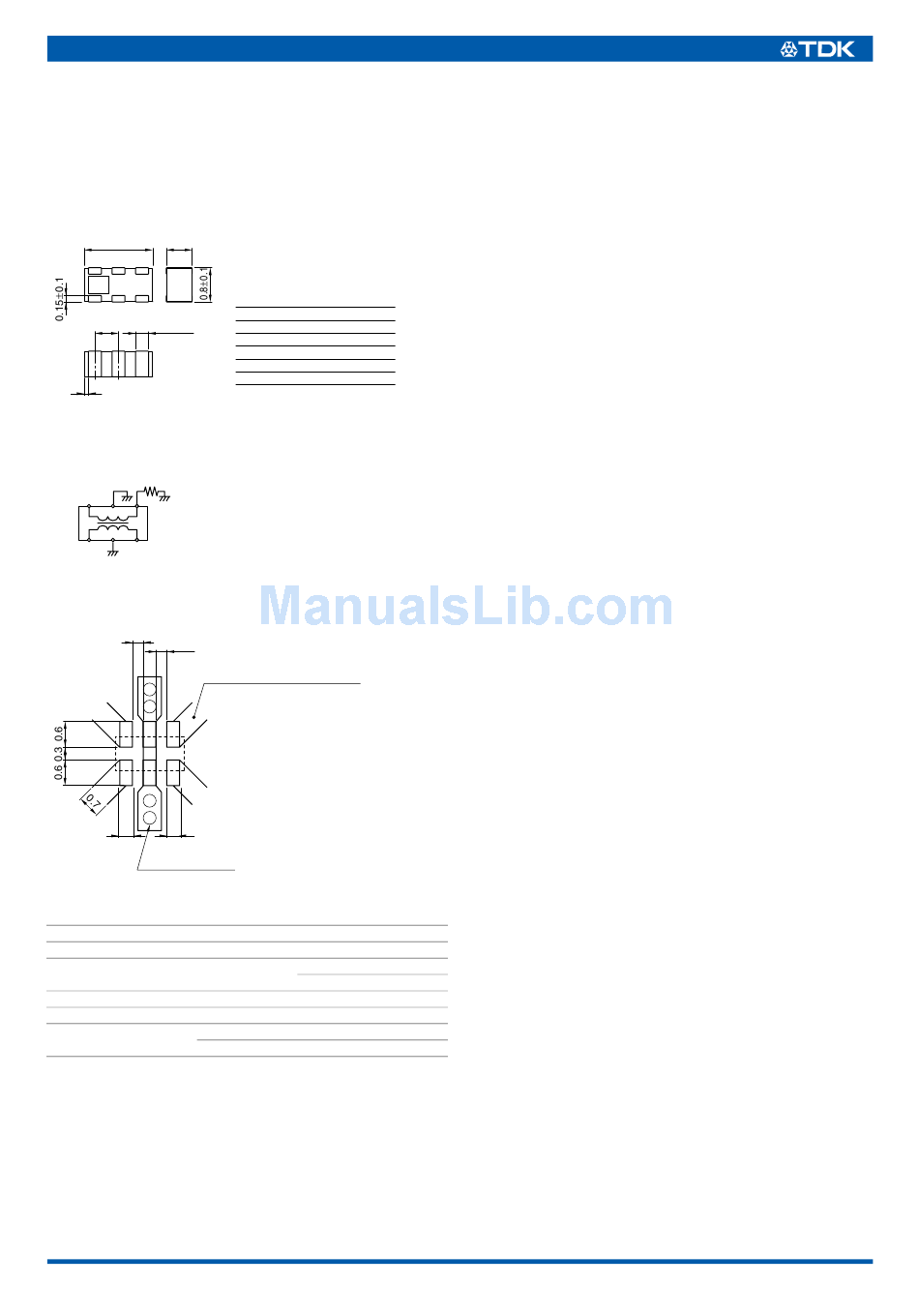

TDK HHM Series HHM2209SA2 Specifications

Multilayer Chip Directional Couplers
For PCS/Tx
HHM Series HHM2209SA2

SHAPES AND DIMENSIONS

1.6±0.1 0.6±0.1
6 5 4
1 2 3
0.55±0.1 0.3±0.1
Dimensions in mm
0.1±0.1

CIRCUIT DIAGRAM

50Ω
Monitor GND
output
6 5 4
2
1 3
OUT
IN
GND

RECOMMENDED PC BOARD PATTERNS

0.25
0.25
This width is 50Ω.
Micro-strip line for 0.4mm thick
glass-epoxy substrate.
0.3 0.3
ø0.3 Through-hole

ELECTRICAL CHARACTERISTICS

Frequency range
Coupling factor
Insertion Loss
Isolation
Vswr
Operating
Temperature range
Storage
∗1
25°C
∗2
Operating temperature
•
Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and
specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
Terminal functions
1 Input
2 GND
3 Output
4 50Ω load
5 GND
6 Monitor output
Dimensions in mm
1850 to 1910MHz
–11.7±1.0dB
∗1
0.50dB max.
∗2
0.55dB max.
25dB min.
1.3 max.
–40 to +85°C
–40 to +85°C
Conformity to RoHS Directive
001-02 / 20080105 / e761_hhm2209sa2.fm
(1/2)
