Kenmore SPACEMASTER 85210 Installation Instructions Manual page 11

STEP 3: PREPARE THE VENT BLOWER
ROOM-VENTED(recirculating)
INSTALLATION:

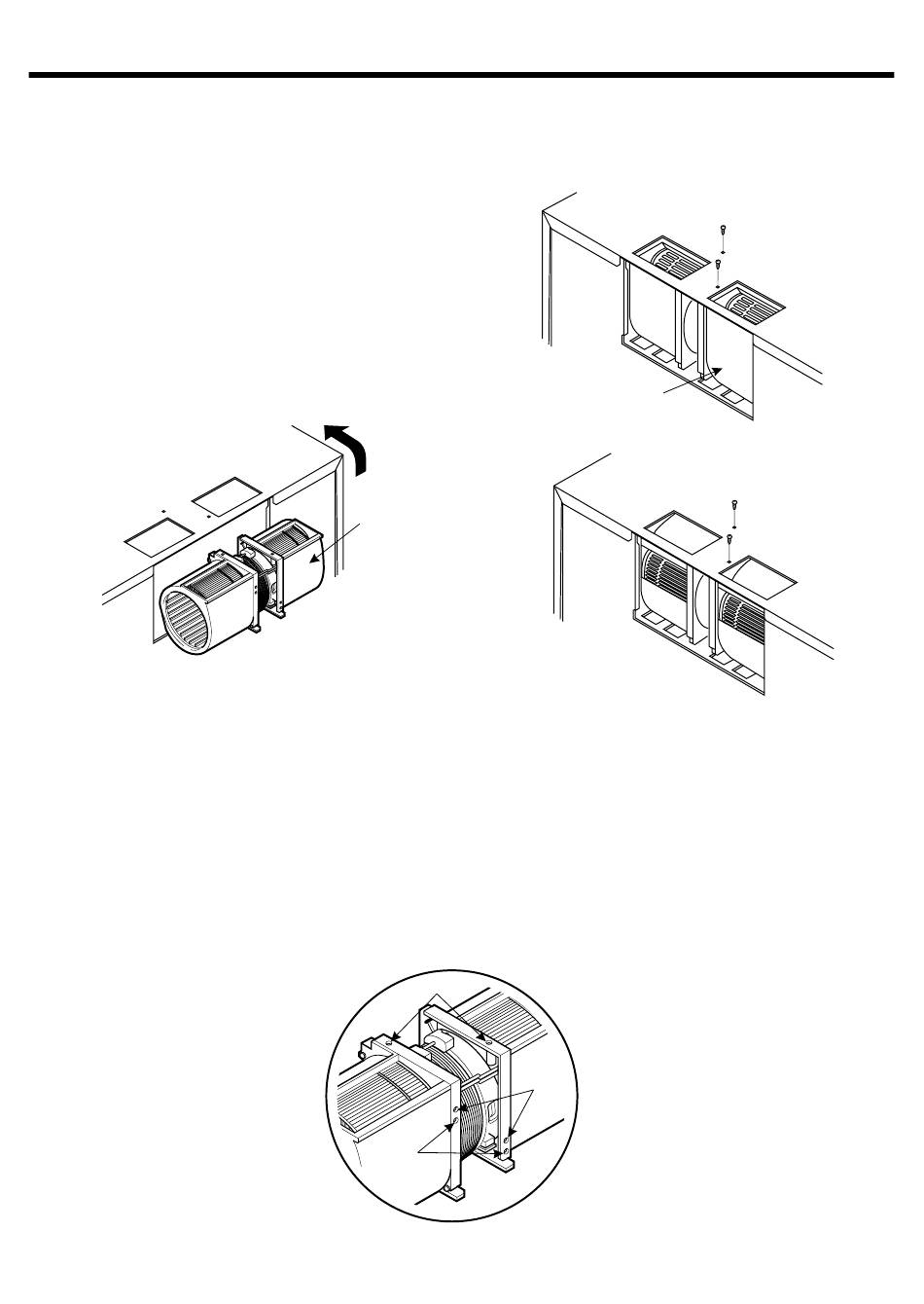

1. Remove and save the two blower screws.
See Figure 13.
2. Carefully lift the blower unit out of the microwave
oven.
3. Rotate blower unit 90˚ turn so that the exhaust
ports face the front of the unit. See Figure 14.
4. Place blower unit back into microwave oven.
5. Tighten the two blower screws. See Figure 15.
Figure 14
NOTE: If you want to install this microwave oven
properly, you should be careful to tighten
the blower screws. For a room-vented
installation, use the screw holes labeled "C"
in figure 16 below.
: Roof-Vented installation
: Wall-Vented installation
: Room-Vented installation
blower
unit
- use "A" holes
- use "B" holes
- use "C" holes
A
C
Figure 16
- 11 -
blower unit
Figure 13
Figure 15
B
