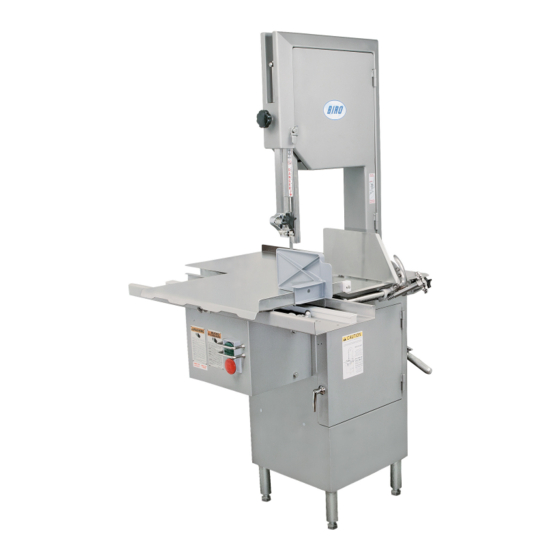

- Page 1 MODEL 1433 POWER MEAT CUTTER OPERATING AND SERVICE MANUAL IMPORTANT NOTICE This Manual contains important safety instructions which must be strictly followed when using this equipment. PTCT: MD 1433 ITEM # 266-7-17-13 B...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page NOTICE TO OWNERS AND OPERATORS..........1 SAFETY TIPS. -
Page 4: Notice To Owners And Operators
Warnings related to possible damage are indicated by: BIRO also has provided a wall chart to be posted near the equipment. If any warning label, wall chart, or Manual becomes misplaced, damaged, or illegible, please contact your nearest Distributor or Biro directly for a replacement. -
Page 5: Safety Tips
This Machine BEFORE Removing Shrouds, Removable Guards, Covers, Doors, Fences or Panels for Cleaning, Servicing or Any Other Reason. NEVER Leave Machine Unattended While the Saw is Running. PROMPTLY REPLACE Any Worn or Illegible Warning Labels. USE ONLY BIRO Parts and Accessories Properly Installed. -
Page 6: Installation
1. Read this Manual thoroughly before installation and operation. Do not proceed with installation and operation if you have any questions or do not understand anything in this Manual. Contact your local Distributor, or BIRO first. 2. Install machine on a level, solid, non-skid surface in a well-lighted work area away from children and visitors. - Page 7 FINGERLIFT (Part No. 211A-291Q). ASSEMBLY 7. See Lower Removable Wheel Installation and Removal Instructions for Model 1433 below. REMOVAL and INSTALLATION for Self-Centering Lower Removable Wheels (Part No. 14560-1 and 14560DF-1) ALWAYS Turn off, unplug Machine From Power Source and Perform Lockout/Tagout Procedure to the Machine BEFORE Cleaning or Servicing.
- Page 8 REMOVAL and INSTALLATION INSTRUCTIONS for TAPERED BORE LOWER WHEELS 14560 and 14560DF ALWAYS Turn off, unplug Machine From Power Source and Perform Lockout/Tagout Procedure to the Machine BEFORE Cleaning or Servicing. Follow Disassembly Procedures in the Cleaning Section of the Operating and Service Manual. Removal of the Lower Wheel will be the last procedure.
- Page 9 Item No. 16543 - Lower Shaft for Removable Wheel 7A. The Model 1433 Lower Removable Wheel has been revised to include a keyway in the bore. Also an anti rotation pin is now pressed into the lower shaft to prevent any inadvertent “spinning” of the wheel on the shaft.
- Page 10 February 17, 2012 Supersedes: January 1998 WARNING LABELS AND WALL CHART encourage you to use these decals and tags when servicing BIRO machinery in the field as well as in your shop. Supersedes: January 1998 FOR BIRO POWER CUTTERS l BIRO Warning, Caution, Safety Decals and Tags illustrated are available from the factory at no cost. We BIRO Warning, Caution, Safety Decals and Tags illustrated are available from the factory at no cost.
-
Page 11: Operation
OPERATION SHARP MOVING BAND TYPE SAW BLADE TO AVOID SERIOUS PERSONAL INJURY ONLY Properly Trained Personnel Should Use This Equipment. ALWAYS Read Operating and Parts Manual BEFORE Operating. ALWAYS Keep Hands Clear of Band Saw Type Blade and Other Moving Parts. DO NOT Tamper With, Bypass, Alter, or Modify this Equipment in Any Way or Form. -
Page 12: To Process Product
6. ALWAYS use the Safety End Cut Pusher Plate for smaller products or the last cuts of product. “C” The pusher plate is supplied as standard on all BIRO power cutters. 7. When finished cutting, push stop button. Perform lockout/tag out procedure. -
Page 13: Cleaning Procedure
• ALWAYS Thoroughly Clean Equipment at Least Daily. CLEANING THE BIRO POWER CUTTER: Disconnect electrical power to the machine before cleaning. Parts to be removed have been made accessible and can be removed without tools. Notice in the drawing below that all parts are numbered. Each part should be removed for cleaning in the numbered sequence shown. -
Page 14: Maintenance
PROMPTLY REPLACE Any Worn or Illegible Warning Labels. • USE ONLY GENUINE BIRO Parts and Accessories Properly Installed. A. GENERAL 1. Machine should be generally inspected every time it is cleaned (at least daily) to ensure that it is in good condition and has not been damaged or tampered with. -
Page 15: Lubrication
SAFETY ITEMS: Safety end cut pusher plate is with machine and accessible. All warning labels are present, properly affixed and legible. Model and Serial Number plate properly affixed and legible. Wall poster within operator’s view from machine. Manual accessible to operator. USE BIRO No. 374 GREASE FOR RE-GREASING B. LUBRICATION: SEE INSTRUCTIONS BELOW 1. -
Page 16: Wall Chart (Part #671)
7. MOTOR BEARINGS: Bearing grease will lose its lubricating ability over time, not suddenly. The lubricating ability of a grease (over time) depends primarily on the type of grease, the size of the bearing, the speed at which the bearing operates and the severity of the operating conditions. Good results can be obtained if the following recommendations are used in your maintenance program. - Page 19 AS14005C STAINLESS STEEL HEAD & DOOR ASSEMBLY Item No. Description Item No. Description A16112 S14006 Head door latch assembly Head door SS AS14005C SSS15 Head & door assembly, SS Set screw, 5/16-18 x 5/16 cup point Head door assembly, SS 112-212 Waved washer AS14006...
-
Page 20: Base Door Hinge System
Wheel cleaner assembly Retaining ring, (2 req.) A295 Base Door Hinge System on the Model 1433 and 1433FH Series has been changed from an internal “plate & pin” system to an external “barrel & pin” system (see sketch below). Old Style... - Page 21 Item No. Description Item No. Description 14560 Lower saw wheel, 14” A16547 Lower bearing housing assembly w/o wheel 14560DF Lower saw wheel, 14”, double flange A363 Lower bearing cup/cone assembly 14740 Retaining ring- external Hex nut, ⅜ -16, SS HN35S 14746 T- handle lock, removable lower wheel LW20S...
- Page 22 Item No. Description Item No. Description A19-1 Ratchet assembly Ratchet trigger SS FW07S S189 Flat washer, 3/8 SS Ratchet arm stud SS HHS025S Hex head screw, 1/4-20 x 1/2 SS Ratchet base SS HN15S Hex nut, 1/4-20 SS S240 Ratchet trigger spring HN35S Hex nut, 3/8-16 SS 10-1...
- Page 23 Item No. Description Item No. Description AS12132 S235 Taper pin, #4 x 3/4 SS Steel cleaner assembly, rear AS12290-3 S244 Wheel cleaner arm stud, SS Cleaning unit assembly S295 A295 Wheel cleaner assembly Wheel cleaner arm, SS Hex head screw, 8-32 x 1/4 trimmed, SS S325 Wheel cleaner arm stud washer, SS HHS003S...
- Page 24 AS415D STATIONARY BAR ASSEMBLY Item No. Description AS415D Stationary bar assembly, SS HHS025S Hex head screw, 1/4-20 x 1/2, SS LW10S Lock washer, 1/4, SS S268 Stationary bar headless screw S119A Saw guide in stationary bar, SS Nylon filler S415D Stationary bar, SS Item No.
- Page 25 A16155EZ EASY FLOW MEAT CARRIAGE ASSEMBLY S155-R S155EZ 16155EZ-1 16155AEZ-1 Item No. Description Item No. Description S155EZ-3 A16155EZ Hex standoff, EZ flow carriage Meat carriage assembly complete, EZ flow 16155EZ A175S Meat carriage top & angle only Thumb guard assembly 16155EZ-1 FW05S Meat carriage top only w/ weld studs (DNS)
-
Page 26: Switch Assemblies And Service Parts
WATERTIGHT MAGNETIC SWITCH ASSEMBLIES (AEG) INCLUDES MOUNTING BRACKET AND WIRES Item No. Description Item No. Description A22616EE-514 BAEG/MS-PB/05-C8 2HP 208-220-50/60-3 A22616EE-5241 BAEG/MS-PB/A26 1.5-2HP 104/115-60-1 A22616EE-516 BAEG/MS-PB/05-E4.7 2HP 440/460-3 A22616EE-5261 BAEG/MS-PB/CS16 2HP 230-60-1 A22616EE-518 BAEG/MS-PB/05-D4.7 1.5-2HP 380/415-50-3 A22616EE-530 BAEG/MS-PB/05-F3.2 2HP 550/575-3 A22616EE-522 BAEG/MS-PB/05-C14 3HP 220-230-50/60-3 A22616EE-534 BAEG/MS-PB/05-E6.3 3HP 440/460-60-3... -
Page 27: Wiring Diagrams
115 VOLT WITH 6 LEADS SCHEMATIC USING 1 PH AEG LS11K CONTACTOR WITH B18K OVERLOAD W.T. SWITCH FOR 115 VOLT, SINGLE PHASE, 60 CYCLE WEG MOTOR 1-1/2HP WITH 6 MOTOR LEADS 1.5HP WEG MOTOR: M40-158ES1BF56W 208-230 VOLT WITH 6 LEADS SCHEMATIC USING 1 PH AEG LS05 CONTACTOR WITH B05 OVERLOAD W.T. -
Page 33: Warning Label Locations On Machine
All BIRO Warning, Caution, Safety Decals and Tags illustrate encourage you to use these decals and tags when servicing BIRO machinery in the field as well as in your shop. encourage you to use these decals and tags when servicing BIR Item No. -
Page 34: Wearable Saw Parts
WEARABLE SAW PARTS THAT WILL FIT BIRO POWER CUTTERS MODELS 11-22-1433-33-34-3334-44-4436-55 — EXCEPT WHERE NOTED OTHERWISE — CONTACT YOUR NEAREST BIRO AUTHORIZED DISTRIBUTOR OR CONTACT BIRO MANUFACTURING PH.: 419-798-4451 E-Mail: service@birosaw.com Item No. 130 Item No. 131 Item No. 159 Item No. -
Page 35: Parts List/Ordering
MODEL 1433 PART NUMBERS AND DESCRIPTIONS MODEL NO. AND SERIAL NO. REQUIRED WHEN ORDERING PARTS Item no. Description Item no. Description HHS049NL Hex screw, nylon, 5/16-18 x 1/2 12273RH-3 Meat gauge bracket, RH M66-35M388S508-B Motor, 2HP 230-50-1 open 12700-2 Wearable parts replacement kit... -
Page 36: Parts Assemblies List /Ordering
MODEL 1433 PART NUMBERS AND DESCRIPTIONS (Cont.) Item no. Description Item no. Description 211A-291Q 271AL Meat gauge worm gear, Aluminum Finger lift fastener knob, 4-point 211D 272-8 Finger lift fastener bolt Cap nut, 5/16-18 211Q 272-10 Fastener knob 4 pt., 5/16-18... -
Page 37: Operator's Notes
OPERATOR’S NOTES... - Page 38 OPERATOR’S NOTES...
-
Page 39: Operator's Signature Page
OPERATOR’S SIGNATURE PAGE WARNING READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE SIGNING BELOW MY SIGNATURE ATTESTS THAT I HAVE COMPLETELY READ AND UNDERSTAND THIS MANUAL. I REALIZE THAT THIS MACHINE, IF OPERATED CARELESSLY, CAN CAUSE SERIOUS INJURY TO MYSELF AND OTHERS. NAME (PRINT) SIGNATURE SUPERVISOR’S... -
Page 40: Limited Warranty
The warranty card must be returned to The BIRO Manufacturing Company for proper registra- tion. If no warranty card is returned to BIRO, the warranty period will begin from the date the machine was originally shipped from the factory.
