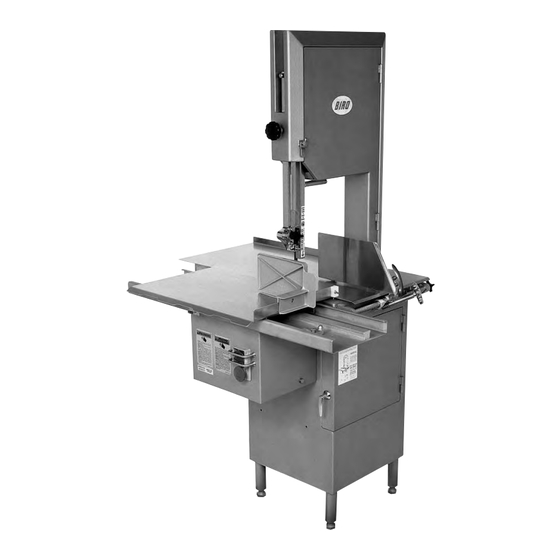

- Page 1 MODEL 1433FH FIXED HEAD POWER MEAT CUTTER OPERATING AND SERVICE MANUAL IMPORTANT NOTICE This Manual contains important safety instructions which must be strictly followed when using this equipment. ITEM No.: 14313FH-304 ITEM No. 14313FH-304 MD 1433FH 11-09-8 PPD...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page NOTICE TO OWNERS AND OPERATORS ..................1 SAFETY TIPS ............................2 INSTALLATION ..........................3-6 WARNING LABELS FOR POWER CUTTERS ................7 WARNING LABEL LOCATIONS ON MACHINE ................8 BAND SAW SAFETY GUIDELINES ....................9 OPERATION ............................10 FOOD HANDLING TO PREVENT CONTAMINATION..............10 TO PROCESS PRODUCT ........................11 MAINTENANCE..........................12 GENERAL..............................12... -
Page 3: Notice To Owners And Operators
Manual. Warnings related to your personal safety are indicated by: Warnings related to possible damage are indicated by: BIRO also has provided a wall chart to be posted near the equipment. If any warning label, wall chart, or Manual becomes misplaced, damaged, or illegible, please contact your nearest Distribu- tor or BIRO directly for a replacement. -
Page 4: Safety Tips
Machine BEFORE Removing Shrouds, Removable Guards, Covers, Doors, Fences or Panels for Cleaning, Servicing or Any Other Reason. NEVER Leave Machine Unattended While Operating. PROMPTLY REPLACE Any Worn or Illegible Warning Labels. USE ONLY BIRO Parts and Accessories Properly Installed. -
Page 5: Installation
USE ONLY BIRO Parts and Accessories Properly Installed. 1. Read this Manual thoroughly before installation and operation. Do not proceed with installation and operation if you have any questions or do not understand anything in this Manual. Contact your local Distributor, or BIRO first. - Page 7 (5) The drive belt is packed loose in machine to prevent deformation, and must be installed on pulleys at time of wiring motor. (6) The BIRO Manufacturing Company is not responsible for permanent wiring, connection or installations. NOTE TO OWNER AND ELECTRICIAN: IF THIS MACHINE IS NOT CORD...
- Page 8 16. Check placement of all warning labels, wall chart and Manual. Machine is ready for trained operators to process product. Post SAFETY TIPS wall chart within easy view of operator. Keep Manual available to operator. 17. Contact your local Distributor or BIRO directly if you have any questions or problems with the installation or operation of this machine.
-
Page 9: Warning Labels For Power Cutters
WARNING LABELS FOR BIRO POWER CUTTERS... -
Page 11: Band Saw Safety Guidelines
ITEM No. 671 WALL CHART “BAND SAW SAFETY GUIDELINES” ATTACH TO WALL IN VICINITY OF MACHINE IN EASY VIEW OF OPERATOR 1. Before Using, Make Sure: Gauge Plate And Other Components Are Secure. All Warning Labels and Guards Are In Place. The Guide Bar Is Adjusted To Inch... -
Page 12: Operation
OPERATION SHARP MOVING BAND TYPE SAW BLADE TO AVOID SERIOUS PERSONAL INJURY ONLY Properly Trained Personnel Should Use This Equipment. ALWAYS Read Operating and Parts Manual BEFORE Operating. ALWAYS Keep Hands Clear of Band Type Saw Blade and Other Moving Parts. DO NOT Tamper With, Bypass, Alter, or Modify this Equipment in Any Way or Form. -
Page 13: To Process Product
6. ALWAYS use the Safety End Cut Pusher Plate for smaller products or the last cuts of product. “C” The pusher plate is supplied as standard on all BIRO power cutters. 7. When finished cutting, push stop button. Perform lockout/tag out procedure. -
Page 14: Maintenance
NEVER Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition. PROMPTLY REPLACE Any Worn or Illegible Warning Labels. USE ONLY GENUINE BIRO Parts and Accessories Properly Installed. A. GENERAL 1. Machine should be generally inspected every time it is cleaned (at least daily) to ensure that it is in good condition and has not been damaged or tampered with. -
Page 15: Lubrication
B. LUBRICATION 1. UPPER WHEEL BEARINGS: Grease every four (4) months. Change grease every twelve (12) months. 2. LOWER BEARING HOUSING: Grease every four (4) months. Change grease every twelve (12) months. 3. MEAT CARRIAGE BEARINGS: Grease every four (4) weeks. 4. - Page 17 NOTE: ALWAYS REPORT MACHINE SERIAL NUMBER WHEN ORDERING PARTS...
- Page 18 14P-1...
- Page 19 ITEM No.: 14782K Blade Tension Screw Conversion Kit INSTALLATION INSTRUCTIONS Disconnect the machine from main power supply. Loosen tension on the saw blade and remove the upper wheel assembly Unbolt the (A) tensioning handle from the (B) blade tension screw. At the bottom handle mount turn the (B) blade tension screw clockwise until it can be lifted out of the (C) housing.
-
Page 20: Operator's Notes
— OPERATOR'S NOTES —... - Page 21 A14335XE A14335XE...
- Page 22 Item No. Description AS415D-2 Stationary bar assembly Item No. Description HHS025S Hex head screw, ¼-20 ½ SS AS415D Stationary bar assembly LW10S Lock washer, ¼ SS HHS025S Hex head screw, ¼-20 ½ SS S268 Stationary bar headless screw LW10S Lock washer, ¼ SS 119A Saw guide in stationary bar S268...
- Page 23 Item No. Description Item No. Description A16155EZ Meat carriage assembly complete – EZ Flow S155EZ-3 Hex standoff, easy flow carriage A175S Thumb guard assembly 16155EZ Meat carriage top & angle only FW05S Flat washer, ¼ SS 16155EZ-1 Meat carriage top only w/weld studs (DNS) AN15S Acorn nut, ¼-20, SS 16155-13...
- Page 24 Item No. Description Item No. Description AS12290 Cleaning unit assembly S235 Taper pin, #4 ¾ SS AS12290-3 Cleaning unit assembly S244 Wheel cleaner arm stud, SS A295 Wheel cleaner assembly S295 Wheel cleaner arm, SS HHS003S Hex head screw, 8-32 ¼ trimmed SS S325 Wheel cleaner arm stud washer, SS HHS005S...
-
Page 31: Cleaning Procedure
Electrical Components. ALWAYS Thoroughly Clean Equipment at Least Daily. CLEANING THE BIRO POWER CUTTER: Disconnect electrical power to the machine before cleaning. Parts to be removed have been made accessible and can be removed without tools. Notice in the drawing below that all parts are numbered. Each part should be removed for cleaning in the numbered sequence shown. -
Page 32: Wearable Saw Parts List
WEARABLE SAW PARTS THAT WILL FIT BIRO POWER CUTTERS MODELS 11-22-1433-33-34-3334-44-4436-55 — EXCEPT WHERE NOTED OTHERWISE — CONTACT YOUR NEAREST BIRO AUTHORIZED DISTRIBUTOR OR CONTACT BIRO MANUFACTURING Ph.: 419-798-4451 E-mail: service@birosaw.com... -
Page 33: Parts List/Ordering
Lower blade back-up guide 194KS-1 Saw guide bar lock knob w/carbide 196-2 Blade tension spring, fixed head Finger lift bracket VTS7181 BIRO logo oval decal 211A-291Q Fastener knob, 4 point, 112-212 Waved washer 211D Finger lift fastener bolt S116-22 Saw guide bar, 22”... -
Page 34: Parts Assemblies List/Ordering
MODEL 1433FH PART NUMBERS AND DESCRIPTIONS (Cont.) MODEL & SERIAL NO. REQUIRED WHEN ORDERING PARTS tem No. Description Item No. Description 225-2 Conduit connector, WT, 45 deg. 311-1 Rubber bumper for movable stop Motor shim " thick 226-28 Conduit connector washer... -
Page 35: Operator's Signature Page
OPERATOR’S SIGNATURE PAGE WARNING READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE SIGNING BELOW MY SIGNATURE ATTESTS THAT I HAVE COMPLETELY READ AND UNDERSTAND THIS MANUAL. I REALIZE THAT THIS MACHINE, IF OPERATED CARELESSLY, CAN CAUSE SERIOUS INJURY TO MYSELF AND OTHERS. SUPERVISOR'S NAME (PRINT) SIGNATURE... -
Page 36: Limited Warranty
BIRO is not responsible for service charges or labor required to replace any part covered by this limited warranty or for any damages resulting from misuse, abuse, lack of proper or recom- mended service.
