BIRO 44 Operating And Service Manual

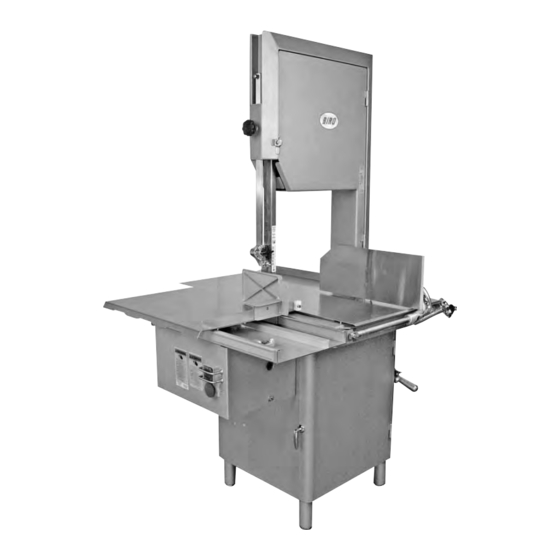

Power meat cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

+

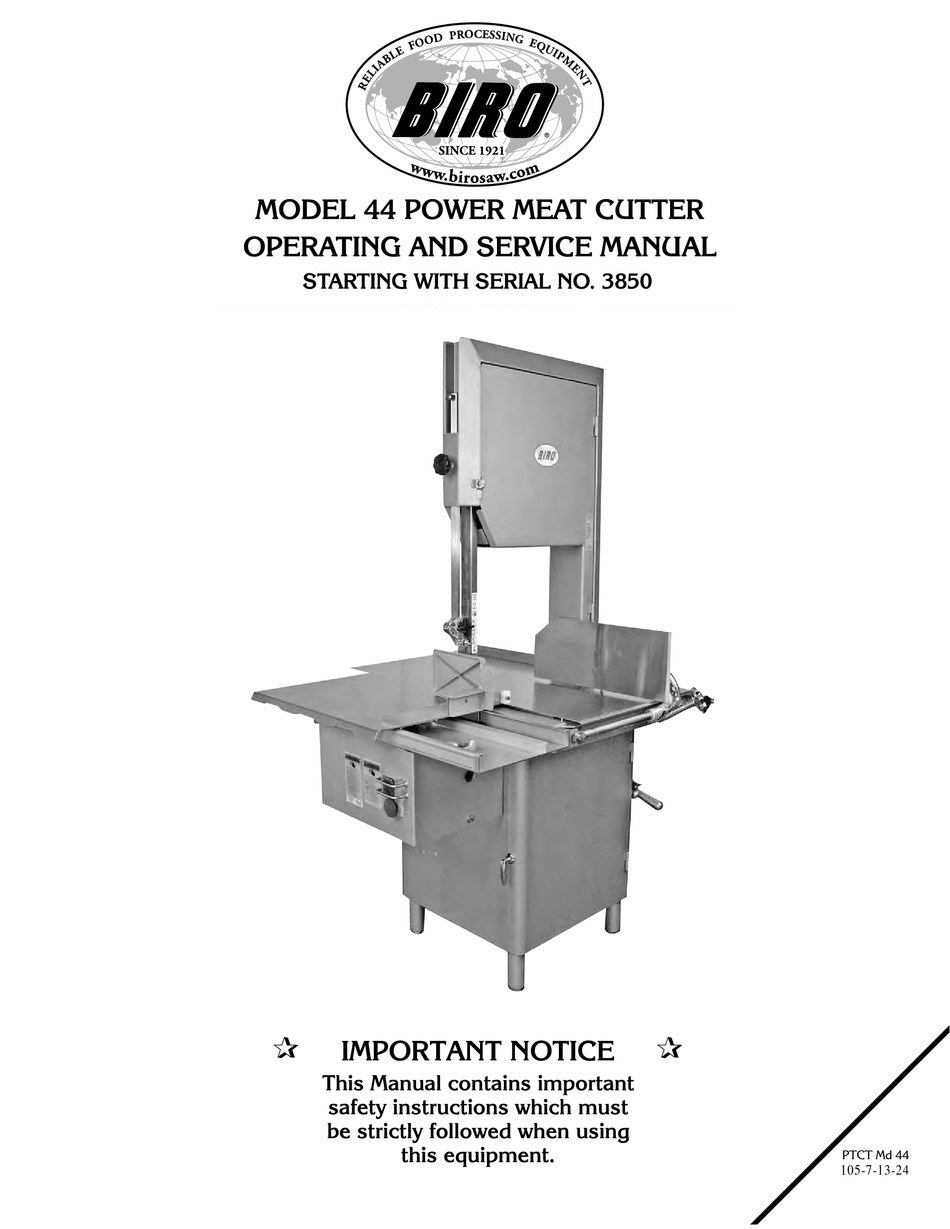

IMPORTANT NOTICE

This Manual contains important
safety instructions which must
be strictly followed when using
this equipment.
+
PTCT Md 44
105-9-05-18
PTCT Md 44
105-7-13-24
105-9-05-18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 44 and is the answer not in the manual?

Questions and answers

Related Manuals for BIRO 44

Summary of Contents for BIRO 44

  • Page 1: Important Notice

    IMPORTANT NOTICE This Manual contains important safety instructions which must be strictly followed when using this equipment. PTCT Md 44 105-7-13-24 105-9-05-18 PTCT Md 44 105-9-05-18...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Page NOTICE TO OWNERS AND OPERATORS ........1 SAFETY TIPS.

  • Page 5: Notice To Owners And Operators

    Manual. Warnings related to your personal safety are indicated by: Warnings related to possible damage are indicated by: BIRO also has provided a wall chart to be posted near the equipment. If any warning label, wall chart, or Manual becomes misplaced, damaged, or illegible, please contact your nearest Distribu- tor or BIRO directly for a replacement.

  • Page 6: Safety Tips

    Machine BEFORE Removing Shrouds, Removable Guards, Cover, Doors, Fences or Panels for Cleaning, Servicing or any Other Reason. NEVER Leave Machine Unattended While Operating. PROMPTLY REPLACE Any Worn or Illegible Warning Labels. USE ONLY BIRO Parts and Accessories Properly Installed.

  • Page 7: Installation

    NEVER Operate Without all Warning Labels Attached and Wall Chart Posted. 1. Read this Manual thoroughly before installation and operation. Do not proceed with installation and operation if you have any questions or do not understand anything in this Manual. Contact your local Distributor, or BIRO first.
  • Page 8 (5) The V-belt is packed loose in machine to prevent deformation, and must be installed on pulleys at time of wiring motor. (6) The BIRO Manufacturing Company is not responsible for permanent wiring, connection or installation. NOTE TO OWNER AND ELECTRICIAN: IF THIS MACHINE IS NOT CORD...

  • Page 9: To Process Product

    15. Check placement of all warning labels, wall chart and Manual. Machine is ready for trained operators to process product. 16. Contact your local Distributor or BIRO directly if you have any questions or problems with the installation or oper- ation of this machine.
  • Page 11 6. ALWAYS use the safety End Cut Pusher Plate (Part No. 256P) for smaller products or the last cuts of product. The pusher plate is supplied as standard on all BIRO power cutters. 7. When finished cutting, push stop button. Perform lockout/tagout procedure.

  • Page 12: Cleaning

    Electrical Components. ALWAYS Thoroughly Clean Equipment at Least Daily. CLEANING THE BIRO POWER CUTTER: Disconnect electrical power to the machine before cleaning. Parts to be removed have been made accessible and can be removed without tools. Notice in the drawing below that all parts are numbered. Each part should be removed for cleaning in the numbered sequence shown.

  • Page 13: Maintenance

    NEVER Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition. PROMPTLY REPLACE Any Worn or Illegible Warning Labels. USE ONLY GENUINE BIRO Parts and Accessories Properly Installed. A. GENERAL MACHINE SHOULD BE GENERALLY INSPECTED EVERY TIME...

  • Page 14: Lubrication

    E. STATIONARY BAR ASSEMBLY: Check condition of nylon filler (Part No. 177), change every four (4) weeks. Check condition of saw guide (Part No. 119A), check tracking of blade through guide, back of blade should be centered in hole, replace every six (6) months. Check condition of lower blade back-up guide (Part No. ²...

  • Page 15: Saw Guide Bar And Saw Guard

    MODEL 44 SAW GUIDE BARS AND SAW GUARDS Production of the BIRO Model 44 began March 1956. All units prior to serial #4511 were equipped with a (round) cast aluminum head. The saw guide bar measured 21½² and the (Item #255) SAW GUARD was the same as used on Models 33 and 34.
  • Page 18 Item No. Description 14P-1 A16112 Head door latch assembly AS18005 Head & door assembly, SS AS18006 Head door assembly, SS A71-2 Upper wheel hinge bracket assembly HHS058S -18 ´ Hex head screw, HHS060S -18 ´ 1 SS Hex head screw, LW15S Lock washer, SSS15...
  • Page 19 Item No. Description HHS005S Hex head screw, 8-32 ´ ½ SS HHS010S Hex head screw, 10-32 ´ HN05S Hex nut, 8-32 SS HN40S Hex nut, ½-13, light jam, SS S18253 Upper wheel aligning screw, SS S229 Wheel cleaner arm spring, SS S244 Wheel cleaner arm stud, SS S295...
  • Page 20 AS18019 S18189 Item No. Description Description A18019 AS18019 Ratchet assembly Ratchet trigger SS FW07S S18189 S18189 Flat washer, Ratchet arm stud SS HHS040S -20 ´ S240 Hex head screw, Ratchet trigger spring, SS HN15S 18010 Hex nut, -20 SS Ratchet arm HN35S 18019 Hex nut,...
  • Page 21 HHS070S...
  • Page 22 Item No. Description A415D Stationary bar assembly Item No. Description AS415D SS Stationary bar assembly A130 HHS035S -20 ´ Saw cleaner assembly Hex head screw, , SS A16132 HN15S Steel cleaner assembly, rear Hex nut, -20, SS HHS003S Hex head screw, 8-32 ´ LW10S , SS Lock washer,...
  • Page 23 S18155EZ-1 MEAT CARRIAGE TOP ONLY W/WELD STUDS NOT SOLD SEPARATELY S18155EZ-R S18155EZ WITHOUT RAW TOP WELD STUDS S18115 5AEZ (DNS)

  • Page 25: Operators Notes

    - OPERATORS NOTES -...

  • Page 26: Switch Assemblies And Service Parts

    A609AAW-18 SWITCH ASSEMBLY Item No. Description A16226A Green/red switch button assembly w/springs A609AAW-16 Switch assembly, 1 & 3 ph less heater coils H462A Guard assembly for switch HHS010S Hex head screw, 10-32 ´ HHS070S -16 ´ 1 SS Hex head screw, HN10S Hex nut, 10-32 SS HN20S...

  • Page 27: Wiring Diagrams

    609AAW...
  • Page 28 WATERTIGHT MAGNETIC SWITCH ASSEMBLIES (AEG) INCLUDES MOUNTING BRACKET AND WIRES Item No. Description Application Item No. Description Application A22618EE-522 BAEG/PC-PB/C14 3HP, 208-220-50/60-3 A22618AE-522 BAEG/PC-PB/C12 3HP, 208/220/230-50/60-3 A22618EE-534 BAEG/MS-PB/05-E6.3 3HP, 440/460-60-3 A22618AE-534 BAEG/PC-PB/E6 3HP, 440/460-60-3 A22618EE-536 BAEG/MS-PB/05-D8 3HP, 380/415-50-3 A22618AE-536 BAEG/PC-PB/D8 3HP, 380/415-50-3 A22618EE-538 BAEG/MS-PB/05-F4.7...
  • Page 29 MODEL 44 SCHEMATIC USING 3PH AEG W.T. SWITCH FOR 220/380/440 VOLTS, THREE PHASE, 60 CYCLE BALDOR MOTOR...

  • Page 31: Parts List/Ordering

    MODEL 44 PARTS NUMBERS AND DESCRIPTIONS SEND IN MODEL NO. AND SERIAL NO. WHEN ORDERING PARTS MOTOR SECTION Item No. Description Item No. Description S240 Ratchet trigger spring, SS M79-G56111-U Motor, 3HP, 208/220/440-50/60-3 open S244 Wheel cleaner arm stud, SS...

  • Page 32: Parts Assemblies List/Ordering

    Item No. Description Item No. Description 18248 Upper wheel hub cap Meat gauge release pin 18251AL Upper v-belt pulley, 12.8 ´ 1 271AL " Meat gauge worm gear 18252 272-6-S Upper shaft lock nut Meat gauge wing nut 18260 272-7-1 Slide gib, aluminum Lock knob, -18, 3 point...

  • Page 33: Warning Label Locations On Machine

    WARNING LABEL LOCATIONS ON MACHINE...

  • Page 35: Operator's Signature Page

    OPERATOR’S SIGNATURE PAGE WARNING READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE SIGNING BELOW MY SIGNATURE ATTESTS THAT I HAVE COMPLETELY READ AND UNDERSTAND THIS MANUAL. I REALIZE THAT THIS MACHINE, IF OPERATED CARELESSLY, CAN CAUSE SERIOUS INJURY TO MYSELF AND OTHERS. SUPERVISOR’S NAME (PRINT) SIGNATURE...

  • Page 36: Limited Warranty

    BIRO is not responsible for service charges or labor required to replace any part covered by this limited warranty or for any damages resulting from misuse, abuse, lack of proper or recom- mended service.
