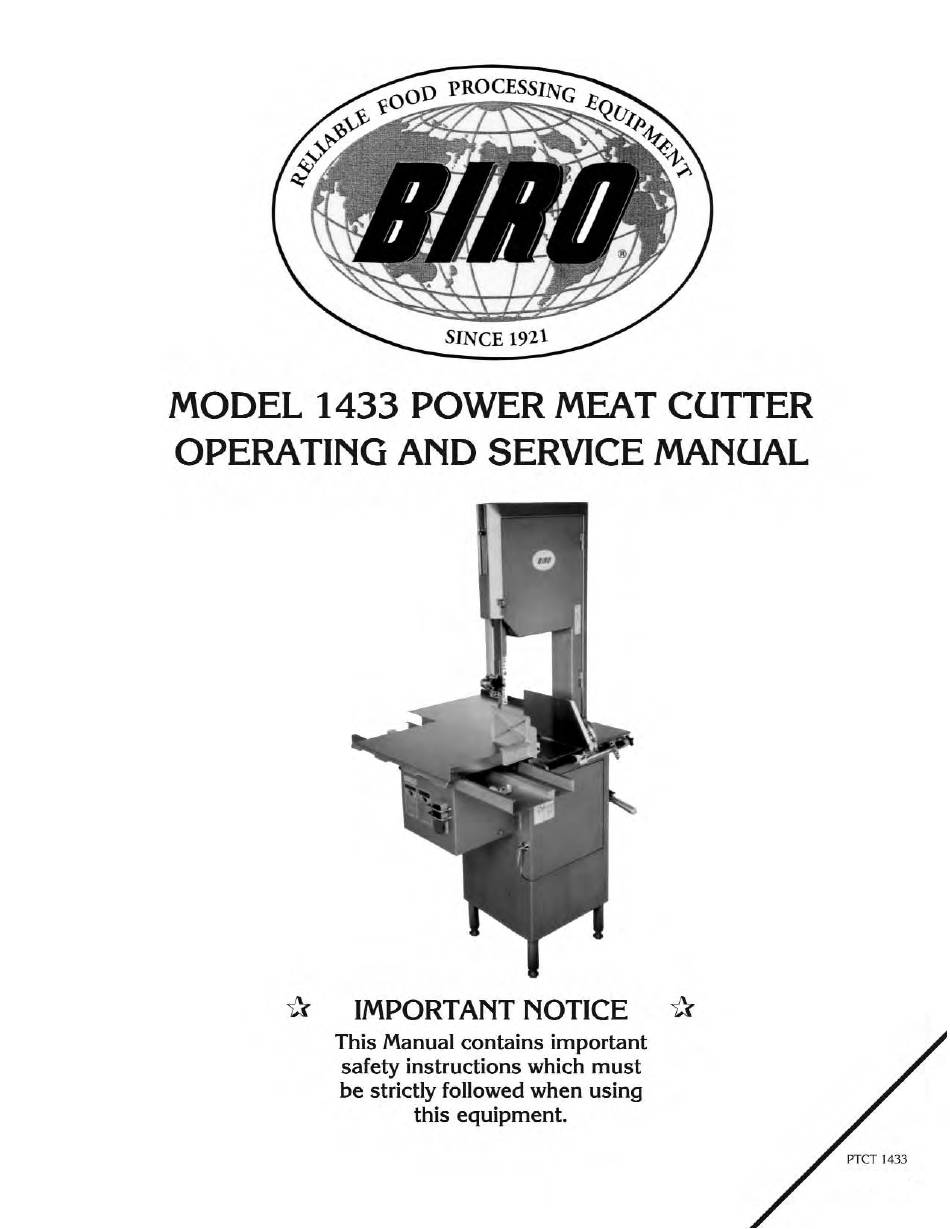

BIRO 1433 Operating And Service Manual
  1. Manuals
  2. Brands
  3. BIRO Manuals
  4. Cutter
  5. 1433
  6. Operating and service manual

BIRO 1433 Operating And Service Manual

Power meat cutter
Hide thumbs Also See for 1433:

Advertisement

Quick Links

Download this manual
266-7-07-7

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1433 and is the answer not in the manual?

Questions and answers

Related Manuals for BIRO 1433

Summary of Contents for BIRO 1433

  • Page 1 266-7-07-7...
  • Page 2 TABLE OF CONTENTS Page NOTICE TO OWNERS AND OPERATORS..............1 NOTICE TO OWNERS AND OPERATORS ......... 1 SAFETY TIPS........................2 SAFETY TIPS .
  • Page 3 Manual. Warnings related to your personal safety are indicated by: Warnings related to possible damage are indicated by: BIRO also has provided a wall chart to be posted near the equipment. If any warning label, wall chart, or Manual becomes misplaced, damaged, or illegible, please contact your nearest Distribu- tor or BIRO directly for a replacement.
  • Page 5 4. To assemble meat guage plate (Part No. A14275) to the machine; Loosen the lock knob (Part No. 272-10) on the right side meat guage bracket. Remove the meat guage gear rack (Part No. 14272) and insert into the meat gauge plate. Be sure to hold meat gauge arm so that the release handle is depressed. Re-install the gear rack by first inserting the rectangle end into the left hand meat gauge bracket, then swing the right hollow round end of the gear rack into the original lock position.
  • Page 6 REMOVAL...
  • Page 8 17. Check placement of all warning labels, wall chart and Manual. Machine is ready for trained operators to process product. 18. Contact your local Distributor or BIRO directly if you have any questions or problems with the installation or operation of this machine.
  • Page 11 Electrical Components. — ALWAYS Thoroughly Clean Equipment at Least Daily. CLEANING THE BIRO POWER CUTTER: Disconnect electrical power to the machine before cleaning. Parts to be removed have been made accessible and can be removed without tools. Notice in the drawing below that all parts are numbered. Each part should be removed for cleaning in the numbered sequence shown.
  • Page 12 SAW GUIDE BAR:...
  • Page 13 1. Remove the finger lift fastener knob and the fingerlift assembly. 2. Remove the finger lift fastener stud. 3. Push the saw guide bar up and out of the top of the head structure. 4. Remove the saw guide bar spring. 5.
  • Page 14 7. MOTOR BEARINGS: Bearing grease will lose its lubricating ability over time, not suddenly. The lubricating ability of a grease (over time) depends primarily on the type of grease, the size of the bearing, the speed at which the bearing operates and the severity of the operating conditions. Good results can be obtained if the following recommendations are used in your maintenance program.
  • Page 15 - NOTES -...
  • Page 18 - NOTES -...
  • Page 19 AS14005C STAINLESS STEEL HEAD & DOOR ASSEMBLY Item No. Description Item No. Description A16112 SSS15 -18 ´ Head door latch assembly Set screw, cup point AS14005C 14TH Head & door assembly, SS Head door hinge welded AS14006 14TP Head door assembly, SS Head door hinge pin, 1½"...
  • Page 20 Item No. Description A227 Upper bearing cup/cone assembly A247 Upper shaft bearing assembly A295 Wheel cleaner assembly HHS005S Hex head screw, 8-32 ´ ½ SS HHS010S Hex head screw, 10-32 ´ HN05S Hex nut, 8-32 SS HN35S Hex nut, -16 SS S12335X Upper wheel hinge plate S229...
  • Page 21 Item No. Description Item No. Description A19-1 Ratchet assembly Ratchet trigger SS FW07S S189 Flat washer, Ratchet arm stud SS HHS025S -20 ´ Hex head screw, Ratchet base SS HN15S 10-1 Hex nut, -20 SS Ratchet arm HN35S 19CB -20 ´ Hex nut, -16 SS Carriage bolt...
  • Page 22 Item No. Description Item No. Description AS12290 S235 Taper, pin, #4 ´ Cleaning unit assembly AS12290-3 S244 Cleaning unit assembly Wheel cleaner arm stud, SS A295 S295 Wheel cleaner assembly Wheel cleaner arm, SS HHS003S Hex head screw, 8-32 ´ ¼ trimmed SS S325 Wheel cleaner arm stud washer, SS HHS005S...
  • Page 23 Item No. Description AS415D-2 Stationary bar assembly Item No. Description HHS025S Hex head screw, ¼-20 ´ ½ SS AS415D LW10S Stationary bar assembly Lock washer, ¼ SS HHS025S Hex head screw, ¼-20 ´ ½ SS S268 Stationary bar headless screw LW10S 119A Lock washer, ¼...
  • Page 24 Item No. Description Item No. Description A16155EZ S155EZ-3 Meat carriage assembly complete – EZ Flow Hex standoff, easy flow carriage A175S 16155EZ Thumb guard assembly Meat carriage top & angle only FW05S 16155EZ-1 Flat washer, ¼ SS Meat carriage top only w/weld studs (DNS) AN15S 16155-13 Acorn nut, ¼-20, SS...
  • Page 25 A22616EE-514 BAEG/MS-PB/05-C8 2HP 208-220-50/60-3 A22616EE-516 BAEG/MS-PB/05-E4.7 2HP 440/460-3 A22616EE-518 BAEG/MS-PB/05-D4.7 1.5HP-2HP 380/415-50-3 A22616EE-522 BAEG/MS-PB/05-C14 3HP 220-230-50/60-3 A22616EE-5221 BAEG/MS-PB/05-CS14 1.5HP 220/230-50/60-1 A22616EE-5241 BAEG/MS-PB/A26 1.5HP-2HP 104/115/60-1 A22616EE-5261 BAEG/MS-PB/CS16 2HP 230-60-1 A22616EE-530 BAEG/MS-PB/05-F3.2 2HP 550/575-3 A22616EE-534 BAEG/MS-PB/05-E6.3 3HP 440/460-60-3 A22616EE-536 BAEG/MS-PB/05-D8 3HP 380-60-3 226EE-22PB-GE 226EE-22PB-GF 42MC-Y73...
  • Page 26 2HP BALDOR MOTOR: M66-35M388X966-B 2HP BALDOR MOTOR: M66-35M388S508-B...
  • Page 27 2HP BALDOR MOTOR: M66-35M388X966-B 2HP WEG MOTOR: M68-218EP3E145T-W...
  • Page 28 2HP BALDOR MOTOR: M68-M3558T-B 2HP US ELECTRIC/EMERSON MOTOR: M55-G54313-U 3HP US ELECTRIC/EMERSON MOTOR: M701-G57011-U 2HP BALDOR MOTOR: M68-M3558T-50-B...
  • Page 29 2HP WEG MOTOR: M68-218EP3E145T-W 2HP BALDOR MOTOR: M68-M3558T-50-B...
  • Page 30 2HP BALDOR MOTOR: M68-M3558T-B 2HP US ELECTRIC/EMERSON MOTOR: M55-G54313-U 3HP US ELECTRIC/EMERSON MOTOR: M701-G57011-U 2HP BALDOR MOTOR: M68-M3558T-50-B...
  • Page 31 WARNING LABEL LOCATIONS ON MACHINE...
  • Page 32 WEARABLE SAW PARTS THAT WILL FIT BIRO POWER CUTTERS MODELS 11-22-1433-33-34-3334-44-4436-55 — EXCEPT WHERE NOTED OTHERWISE — CONTACT YOUR NEAREST BIRO AUTHORIZED DISTRIBUTOR OR CONTACT BIRO MANUFACTURING Ph.: 419-798-4451 E.Mail: service@birosaw.com...
  • Page 33 MODEL 1433 PART NUMBERS AND DESCRIPTIONS MODEL NO. AND SERIAL NO. REQUIRED WHEN ORDERING PARTS Item No. Description Item No. Description HHS049NL -18 ´ ½ LG 14TP-1 Hex screw, nylon, Head door hinge pin, short, 1 " M66-35M388S508-B 14003U-6 Upper wheel, 14"...
  • Page 34 MODEL 1433 PART NUMBERS AND DESCRIPTIONS (Cont.) Item No. Description Item No. Description 211A-291Q Finger lift fastener knob, 4-point Meat gauge release spring 211D Finger lift fastener bolt Meat gauge release cotter key 211Q Fastener knob 4 pt., Meat gauge release pin...
  • Page 35 OPERATOR’S SIGNATURE PAGE WARNING READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE SIGNING BELOW MY SIGNATURE ATTESTS THAT I HAVE COMPLETELY READ AND UNDERSTAND THIS MANUAL. I REALIZE THAT THIS MACHINE, IF OPERATED CARELESSLY, CAN CAUSE SERIOUS INJURY TO MYSELF AND OTHERS. SUPERVISOR’S NAME (PRINT) SIGNATURE...
  • Page 36 BIRO is not responsible for service charges or labor required to replace any part covered by this limited warranty or for any damages resulting from misuse, abuse, lack of proper or recom- mended service.
