Installation Diagrams
(continued)

System Wiring Guidelines

KPP PPU

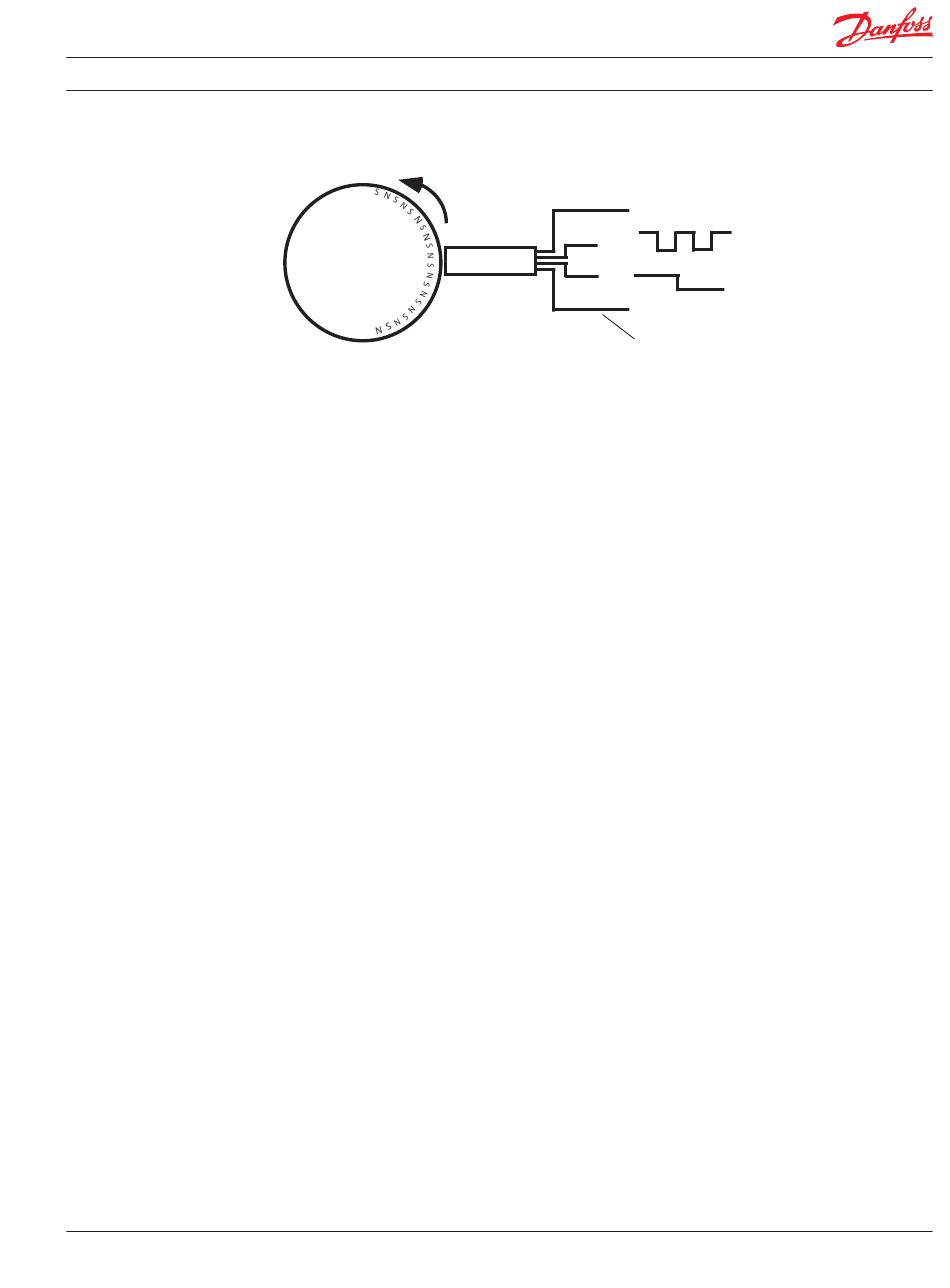

Connection Diagram
Speed ring
Pulse Pickup
1. Protect all wires from mechanical abuse. Run wire in flexible metal or plastic conduits.
2. Separate high current wires such as solenoids, lights, alternators, or fuel pumps from control
wires.
3. Run wires along the inside of, or close to metal machine frame surfaces where possible. This
simulates a shield, which minimizes the effects of EMI/RFI radiation.
4. Do not run wires near sharp metal corners. Consider running the wire through a grommet
when rounding a corner.
5. Do not run wires near hot machine member or engine exhaust pipes
6. Provide strain relief for all wires.
7. Avoid running wires near moving or vibrating components.
8. Avoid long, unsupported wire spans.
9. Use harness anchors that allow wires to float rather than rigid anchors.
11029257 • Rev BB • July 2013
Red
Supply voltage
White Supply 0.5 V
Black
Supply ground
Green
Direction
Applies only to direction and quadrature models
Speed
