Technical Information
Installation Diagrams
16
KPP PPU

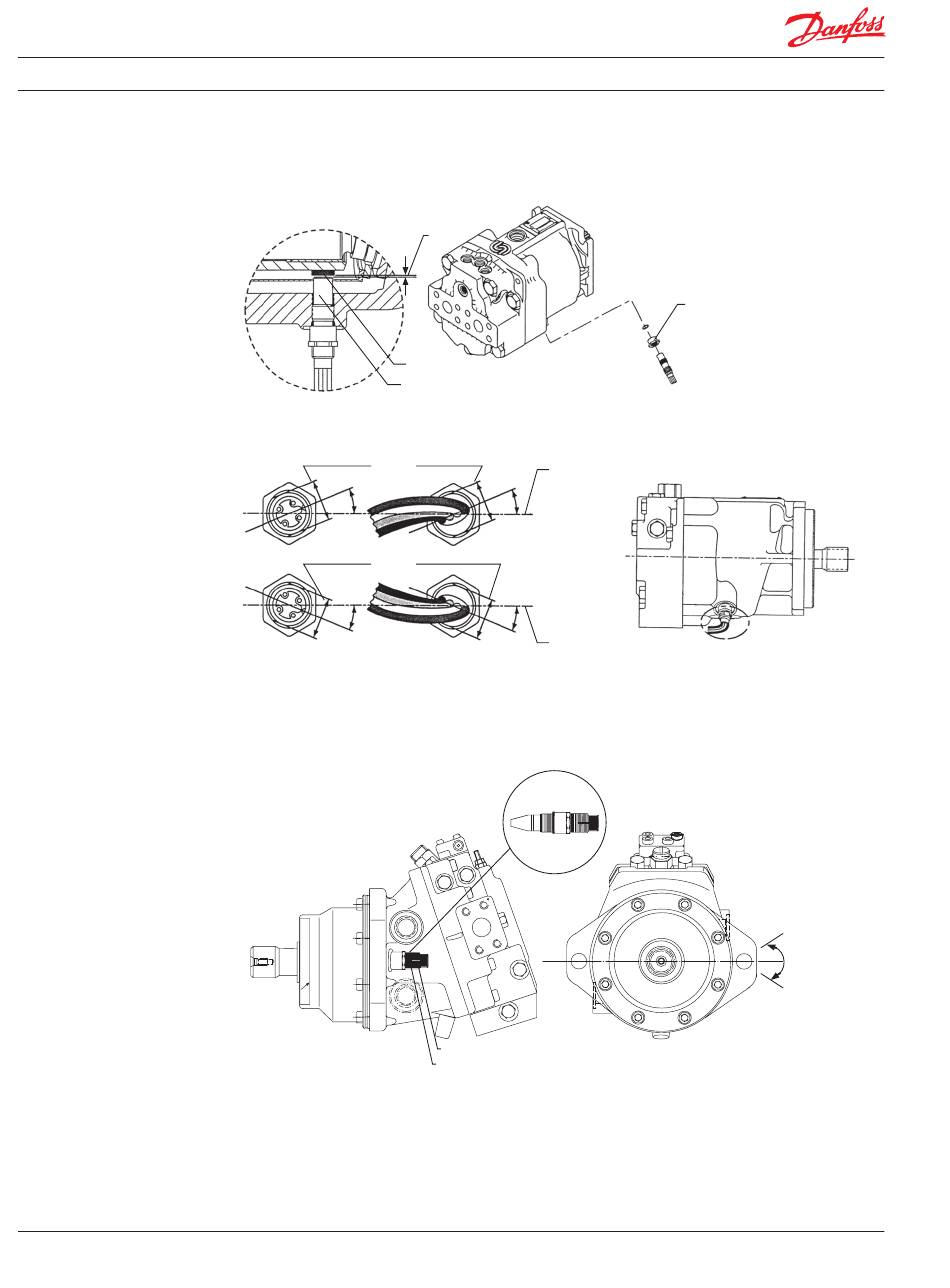

Pulse Pickup Installation
Magnetic speed ring
Speed sensor
12,7 [0.50]
Flats
22°
12,7 [0.50]
Flats
22°
Sensor with
Turck Eurofast connector
Directional Conical End Models, Series 51 and 51-1 Cartridge Motors Only
11029257 • Rev BB • July 2013
Gap
Shaft cernterline
22°
22°
Shaft cernterline
Sensor with
Packard connector
Orientation notch
Speed sensor
11/16 hex wrench
Torque: 13 N•m [10 lbf•ft]
after adjustment
Hold sensor in position
while tightening locknut
2055A
180° ± 15°
2052A
