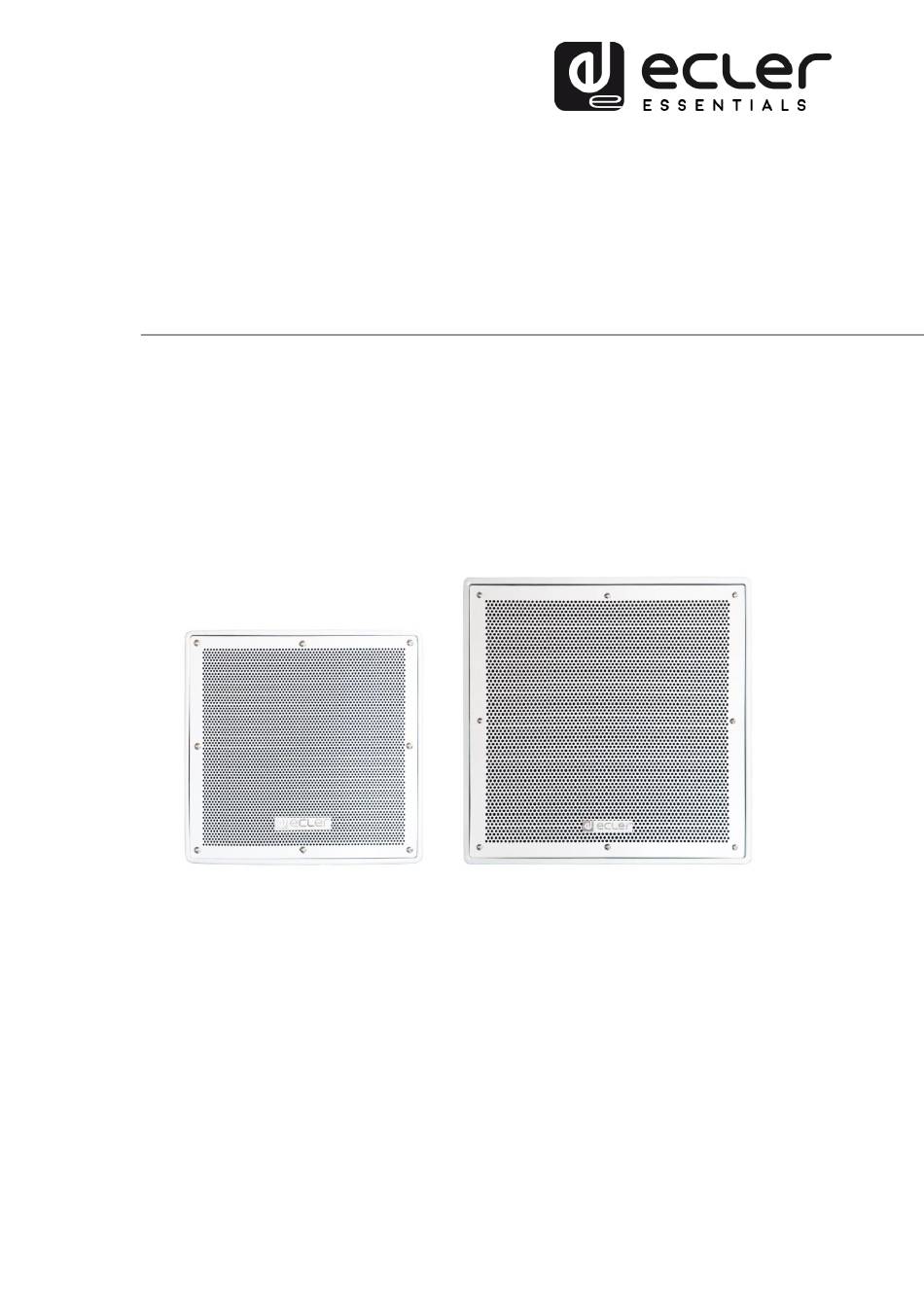

- Page 1 / eCMP12 SPECIALIZED LOUDSPEAKERS Music projectors USER MANUAL...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 Main features ........................... 6 CABLE CONNECTIONS ......................7 LOCATION AND MOUNTING ....................8 TECHNICAL SPECIFICATIONS .................... 9 PACKAGE CONTENTS ......................9... -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note
The Ecler eCMP8/ eCMP12 come with a 3 years warranty. 4. INTRODUCTION The eCMP8 is a music projector in a compact, high-efficiency format. It has an 8" low frequency transducer and a 1.4" coaxial high frequency transducer offering a power of 150W @ 8 Ω. -
Page 6: Main Features
5. Main features eCMP8: 2 way compact and water resistant music projector 150 W RMS @ 8 Ω Power options 100V: 37,5/75/150W/OFF and 8 Ω Power options 70V: 18,75/37.5/75W/OFF y 8 Ω Dispersion (HxV): 100° x 100°... -
Page 7: Cable Connections
The low impedance connection will allow the loudspeakers to be configured to work under these conditions, with a maximum power of 150W for the eCMP8 or 300W for the eCMP12. If you choose this configuration, you must take into account the limitations of the amplifier when connecting multiple speakers to its output, especially if the impedance of the set drops below 4. -
Page 8: Location And Mounting
7. LOCATION AND MOUNTING The following general rules shall be observed: Always install the unit on solid and firm surfaces. Make sure that the surface where the loudspeaker is to be installed can support its weight. eCOMP8: The depth of the speaker is 280mm. Note that if you add the mounting bracket, the total depth will be 334mm. -
Page 9: Technical Specifications
(U-bracket) Dimensions (W x H x D) 407 x 410 x 378mm Weight 20 kg 9. PACKAGE CONTENTS eCMP8 / eCMP12 Mounting bracket, protective cover for connections, and screws Quick User Guide Warranty Card... - Page 10 product characteristics subject variation production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
