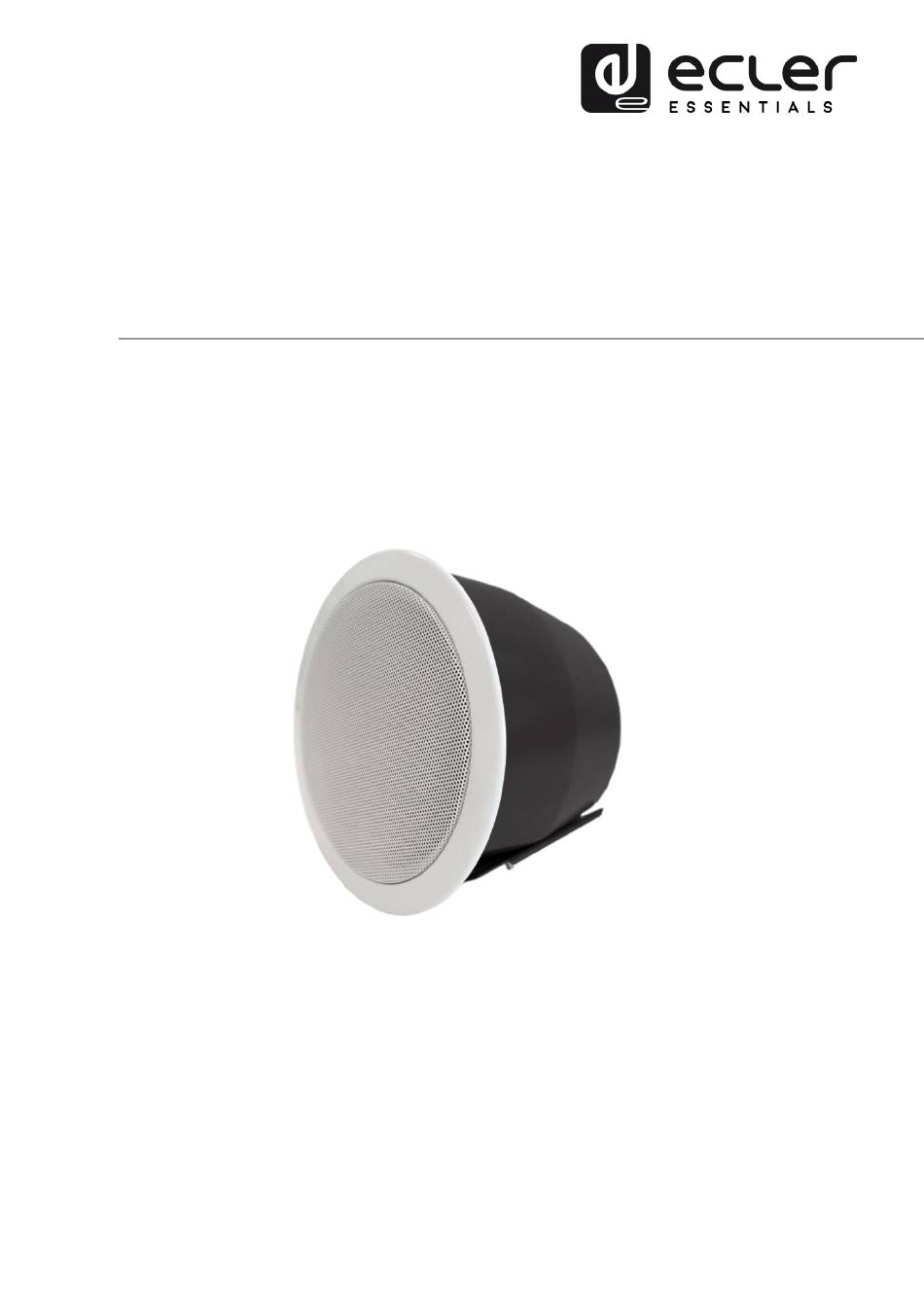

- Page 1 IN-CEILING LOUDSPEAKERS EN 54-24 Certified In-ceiling / In-wall Loudspeaker USER MANUAL v.20220323...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 Applications ............................5 MAIN CHARACTERISTICS: ....................5 CONNECTION.......................... 6 INSTALLATION ........................7 TECHNICAL DATA ......................... 8 Circuit diagram ............................ 8 Mechanical diagrams ......................... 9 Exploded view ............................. -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note

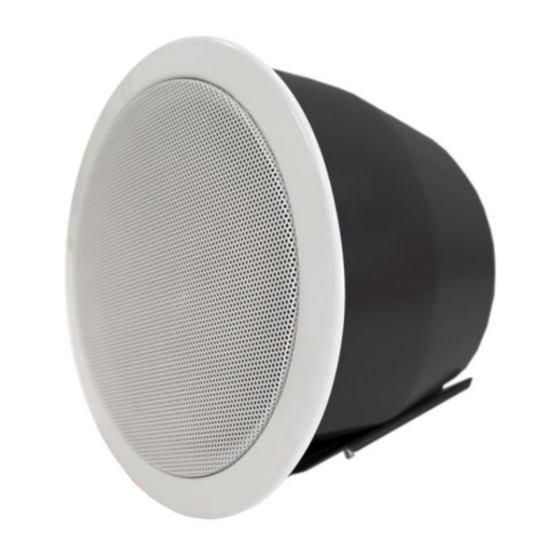

Technical Services. Ecler eIC5154 comes with a 3-year warranty. INTRODUCTION ECLER eIC5154 is a cost-effective in-ceiling loudspeaker that features a design which conforms to EN54-24 standard (Fire detection and fire alarm systems, Voice alarms - Loudspeakers). It performs a 5”woofer. -
Page 6: Connection
CONNECTION Step A: open the loudspeaker from the clamp as shown in the picture. Step B: release the spring to open the fireproof dome. Step C: pass the audio cable through the wire clamp. Step D: connect the loudspeaker wire according to the requirement in the label. -
Page 7: Installation
INSTALLATION Step 1: measure the mounting hole. It must be as the cut-out size of the device. Pass the cable through the cable gland. Follow steps A, B & C. Step 2: loose the metal plates and rise them up to the top. -
Page 8: Technical Data
TECHNICAL DATA eIC5154 System Effective frequency range 120 Hz-20 kHz Coverage angle 165°x165° (HxV) Sensitivity 92 (1W/1m) Power options 100V: 6W / 3W/ 1,5W / 0,75W / 0,38W 70V: 3W/ 1,5W / 0,75W / 0,38W / 0,19W Transducers Ways Driver 5"... -
Page 9: Mechanical Diagrams
Mechanical diagrams Exploded view... -
Page 10: Rear Label
Rear label Certification plate... - Page 11 product characteristics subject variation production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests.
