Page 1: User Manual

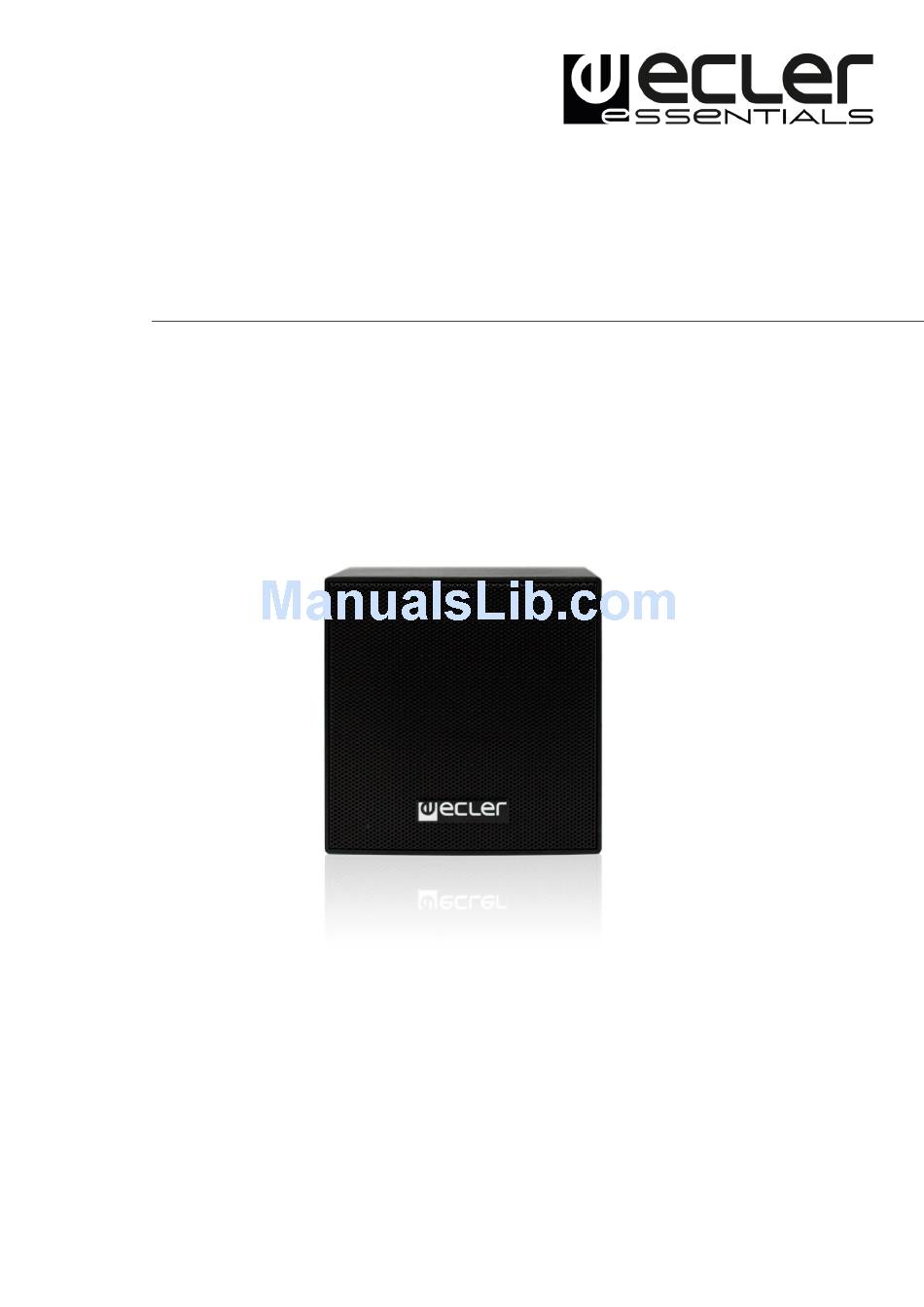

LOUDSPEAKERS Surface Mount Loudspeaker USER MANUAL... -
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ..................3 IMPORTANT SAFETY INSTRUCTIONS .............. 4 IMPORTANT NOTE ..................6 INTRODUCTION ..................... 6 CONNECTIONS ....................7 PLACEMENT AND MOUNTING ................ 8 TECHNICAL CHARACTERISTICS................ 9... -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Important Safety Instructions
2. IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 5 NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 6: Important Note
3. IMPORTANT NOTE Congratulations! You are the owner of a carefully designed and manufactured equipment. We thank you for trusting in us and choosing our AMBIT Series loudspeaker cabinets. In order to get the optimum operation and efficiency from this unit, it is VERY IMPORTANT - before you plug anything - to read this manual very carefully and bear in mind all considerations specified within it. -
Page 7: Connections
The versatility of these cabinets together with a large program of mechanical accessories make it possible to install systems by grouping together from two to as many boxes as are necessary to deal with virtually every need related to the reproduction of ambient music and announcement broadcasting. -
Page 8: Placement And Mounting
The AMBIT103 are shipped from factory with the switch in 100V/15W ATTENTION: position. If it is connected to a low-impedance amplifier, the speaker will not be damaged, but will perform way below its full potential. If the speaker is accidentally connected to a 100V line in the 8/25W position, it will be severely damaged. -
Page 9: Technical Characteristics
The following diagram shows you how to install the AMBIT103 using the accessory supplied, so that it can be oriented both vertically and horizontally. NOTE: As a general safety rule, remember to put the runner in place and also that the screw marked “1”... - Page 10 product characteristics subject variation production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 information@ecler.es www.ecler.com...
