- Page 1 LOUDSPEAKERS Spherical pendant loudspeaker USER MANUAL v.20201203...
-
Page 2: Table Of Contents
ÍNDICE IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 CONNECTIONS ........................6 PAINTING ..........................10 TECHNICAL CHARACTERISTICS ..................11... -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note

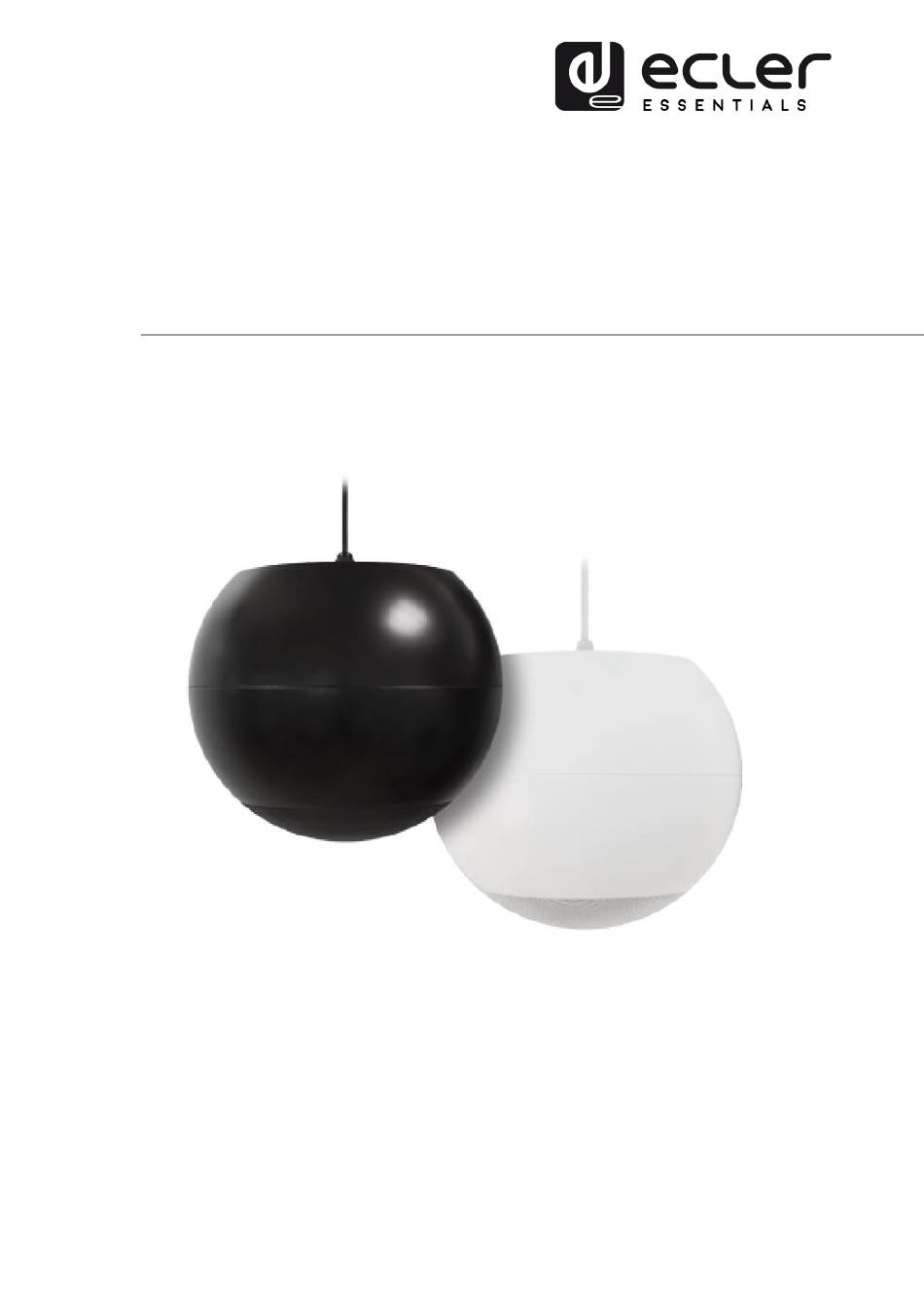

Ecler eUC106 comes with a 3-year warranty INTRODUCTION eUC106 is a pendant spherical speaker. It has a 6.5” woofer and a 1” tweeter, offering a power of 40WRMS @ 8Ω. It also incorporates a 70 / 100V line transformer, with 32 / 16... -
Page 6: Connections
CONNECTIONS The eUC106 connection is done by stripped cable, to be connected directly to the amplifier. The power selector, located in the upper part of the spherical loudspeaker, allows selecting the unit's working mode and power, using a flat screwdriver: •... - Page 7 LOCATION AND INSTALLATION Each eUC106 comes with the following parts: 1. eUC106 pendant spherical speaker + speaker cable 2. Plastic conic-shaped piece 3. Aluminium clamping piece 4. Aluminium carabiner 5. Hook screw 6. Metal fastening clip WARNING: Ensure that both the ceiling and the fastener are sufficiently robust to withstand the weight of the loudspeaker.
- Page 8 3. Install the carabineer in the hook screw previously fixed on the ceiling. Ensure that the carabiner is properly closed. 4. Take the safety steel wire from loudspeaker line cable and install it in the clamp as shown in the picture.
- Page 9 5. In order to make the installation totally secure, introduce safety cable in the eye bolt too. 6. Connect the audio cables to the line coming from the amplifier and move plastic cap up to the ceiling, covering the fixation elements to finish the installation.
-
Page 10: Painting
PAINTING The loudspeaker is ready to be painted, so that its installation is feasible regardless of the aesthetic criteria of the room for which it is intended. eUC106 comes in white (RAL 9003) and black (RAL 9005) WARNING: If you are using spray paint to paint the speaker, do not point it perpendicular to the grille. -
Page 11: Technical Characteristics
TECHNICAL CHARACTERISTICS Nominal low impedance 8 RMS power 40W Program power 80W 100V Transformer Taps 32 / 16 / 8 / 4W 70V Transformer Taps 16 / 8 / 4 / 2W Frequency response 100Hz – 20kHz Sensitivity 1W/1m 89dB Woofer diameter 6.5”... - Page 12 product characteristics subject variation production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests.
