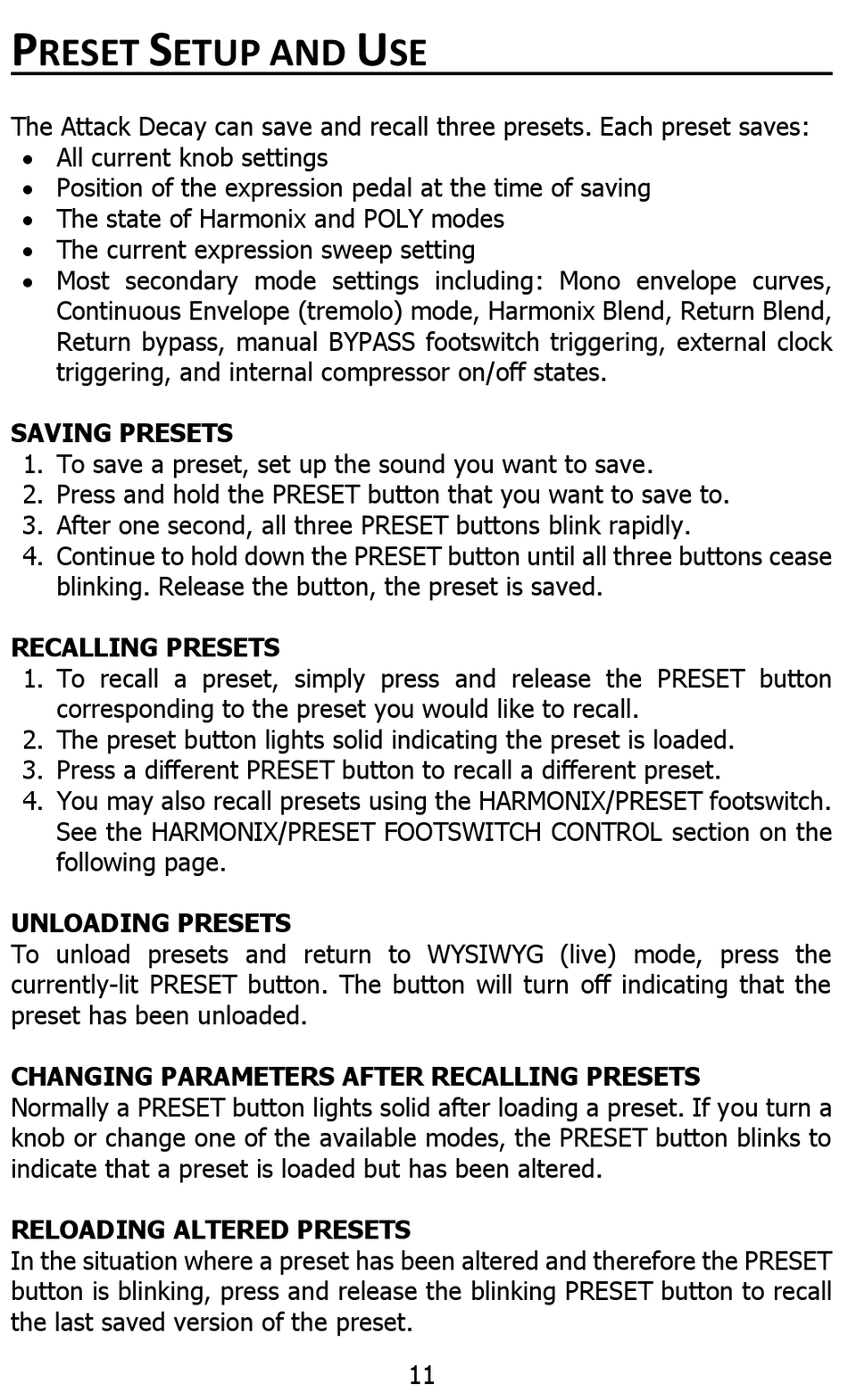

Preset Setup And Use - Electro-Harmonix Attack Decay Manual

P S
RESET
The Attack Decay can save and recall three presets. Each preset saves:
 All current knob settings
 Position of the expression pedal at the time of saving
 The state of Harmonix and POLY modes
 The current expression sweep setting
 Most secondary mode settings including: Mono envelope curves,
Continuous Envelope (tremolo) mode, Harmonix Blend, Return Blend,
Return bypass, manual BYPASS footswitch triggering, external clock
triggering, and internal compressor on/off states.
SAVING PRESETS
1. To save a preset, set up the sound you want to save.
2. Press and hold the PRESET button that you want to save to.
3. After one second, all three PRESET buttons blink rapidly.
4. Continue to hold down the PRESET button until all three buttons cease
blinking. Release the button, the preset is saved.
RECALLING PRESETS
1. To recall a preset, simply press and release the PRESET button
corresponding to the preset you would like to recall.
2. The preset button lights solid indicating the preset is loaded.
3. Press a different PRESET button to recall a different preset.
4. You may also recall presets using the HARMONIX/PRESET footswitch.
See the HARMONIX/PRESET FOOTSWITCH CONTROL section on the
following page.
UNLOADING PRESETS
To unload presets and return to WYSIWYG (live) mode, press the
currently-lit PRESET button. The button will turn off indicating that the
preset has been unloaded.
CHANGING PARAMETERS AFTER RECALLING PRESETS
Normally a PRESET button lights solid after loading a preset. If you turn a
knob or change one of the available modes, the PRESET button blinks to
indicate that a preset is loaded but has been altered.
RELOADING ALTERED PRESETS
In the situation where a preset has been altered and therefore the PRESET
button is blinking, press and release the blinking PRESET button to recall
the last saved version of the preset.
ETUP AND
U
SE
11
