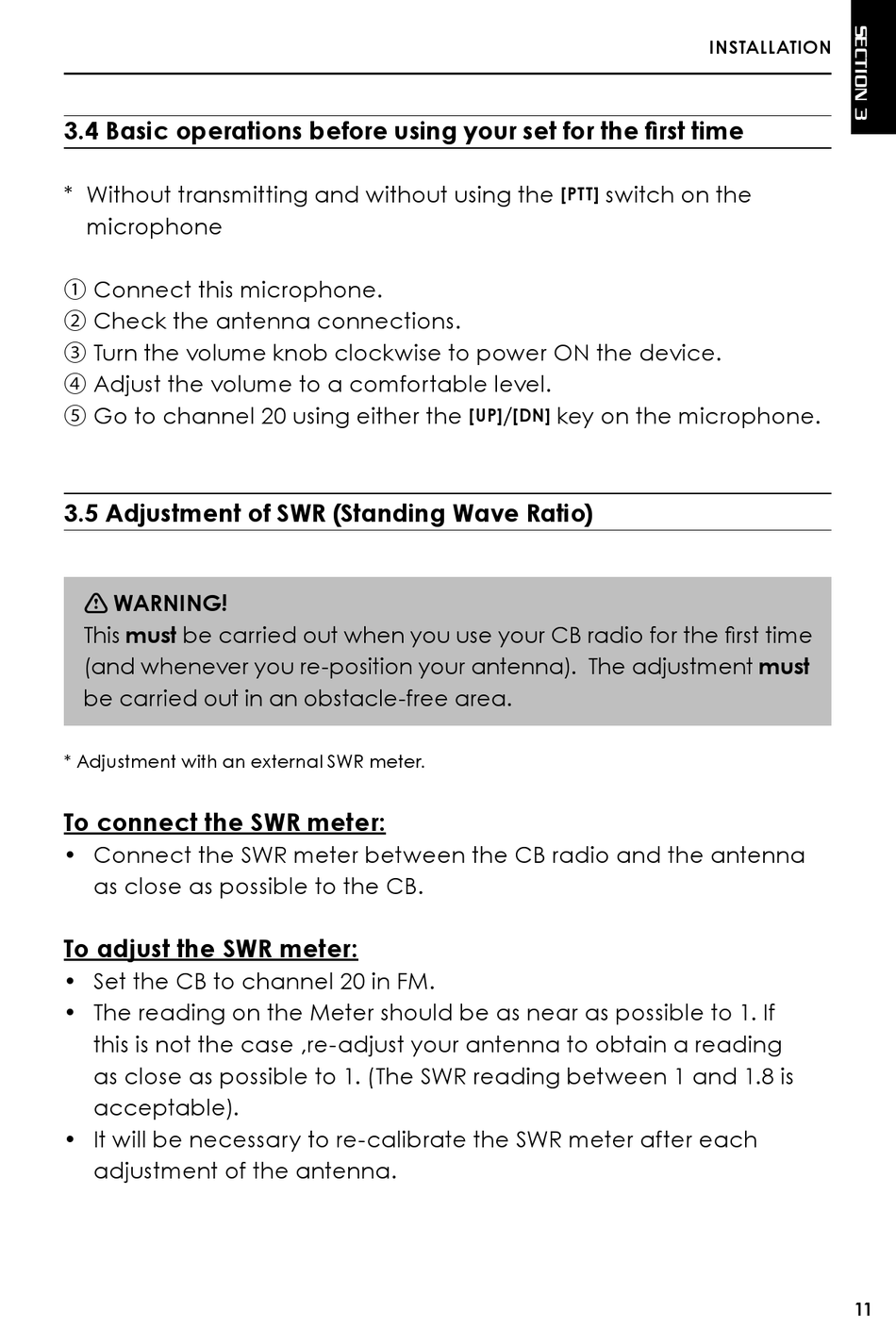

3.4 Basic operations before using your set for the first time
* Without transmitting and without using the
microphone
① Connect this microphone.
② Check the antenna connections.
③ Turn the volume knob clockwise to power ON the device.
④ Adjust the volume to a comfortable level.
⑤ Go to channel 20 using either the

3.5 Adjustment of SWR (Standing Wave Ratio)

 WARNING!
This must be carried out when you use your CB radio for the first time
(and whenever you re-position your antenna). The adjustment must
be carried out in an obstacle-free area.
* Adjustment with an external SWR meter.
To connect the SWR meter:
• Connect the SWR meter between the CB radio and the antenna
as close as possible to the CB.
To adjust the SWR meter:
• Set the CB to channel 20 in FM.
• The reading on the Meter should be as near as possible to 1. If
this is not the case ,re-adjust your antenna to obtain a reading
as close as possible to 1. (The SWR reading between 1 and 1.8 is
acceptable).
• It will be necessary to re-calibrate the SWR meter after each
adjustment of the antenna.
switch on the
[PTT]
/ key on the microphone.
[UP] [DN]
