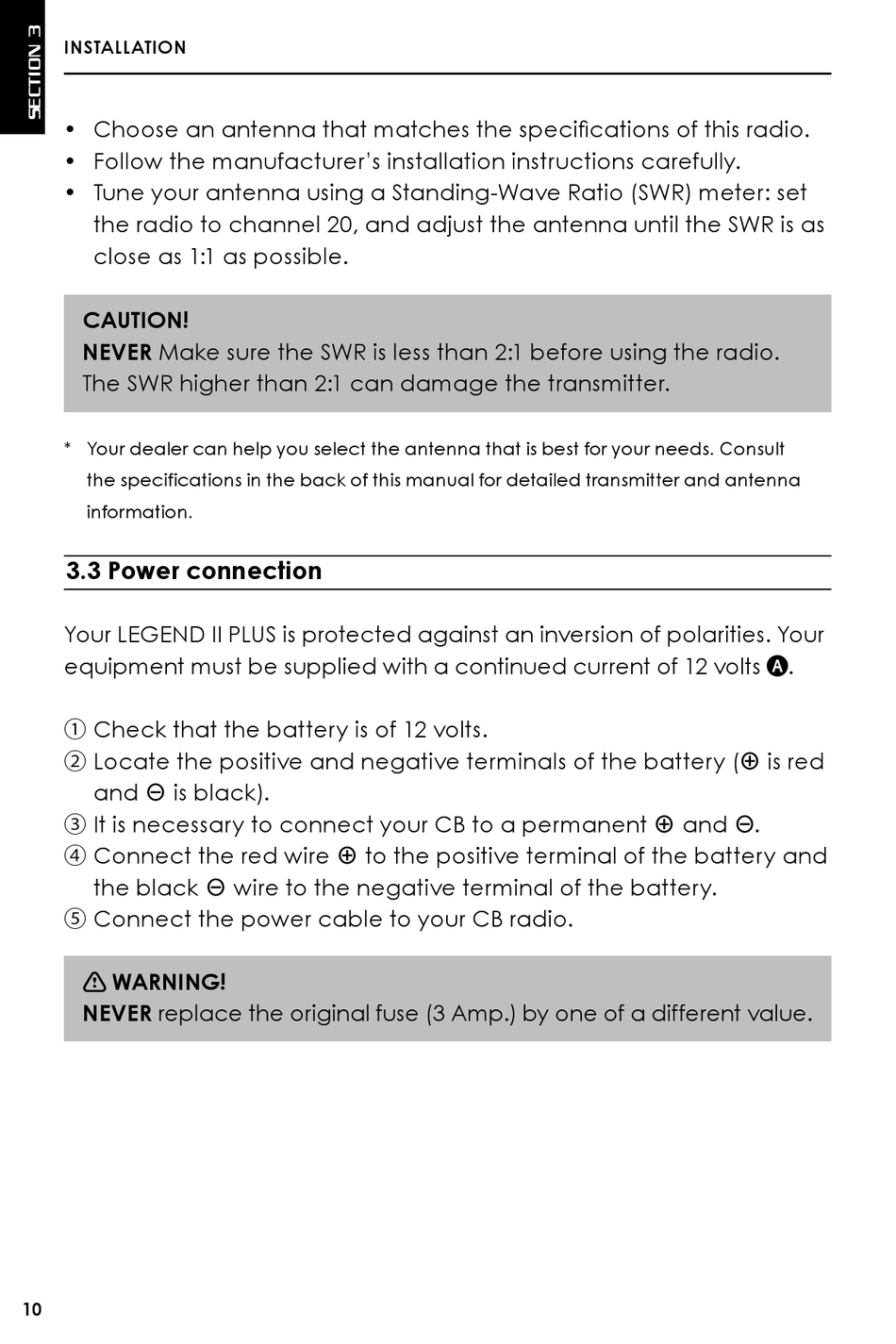

INSTALLATION
• Choose an antenna that matches the specifications of this radio.
• Follow the manufacturer's installation instructions carefully.
• Tune your antenna using a Standing-Wave Ratio (SWR) meter: set
the radio to channel 20, and adjust the antenna until the SWR is as
close as 1:1 as possible.
CAUTION!
NEVER Make sure the SWR is less than 2:1 before using the radio.
The SWR higher than 2:1 can damage the transmitter.
* Your dealer can help you select the antenna that is best for your needs. Consult
the specifications in the back of this manual for detailed transmitter and antenna
information.

3.3 Power connection

Your LEGEND II PLUS is protected against an inversion of polarities. Your
equipment must be supplied with a continued current of 12 volts
① Check that the battery is of 12 volts.
② Locate the positive and negative terminals of the battery (⊕ is red
and ⊖ is black).
③ It is necessary to connect your CB to a permanent ⊕ and ⊖.
④ Connect the red wire ⊕ to the positive terminal of the battery and
the black ⊖ wire to the negative terminal of the battery.
⑤ Connect the power cable to your CB radio.
 WARNING!
NEVER replace the original fuse (3 Amp.) by one of a different value.
