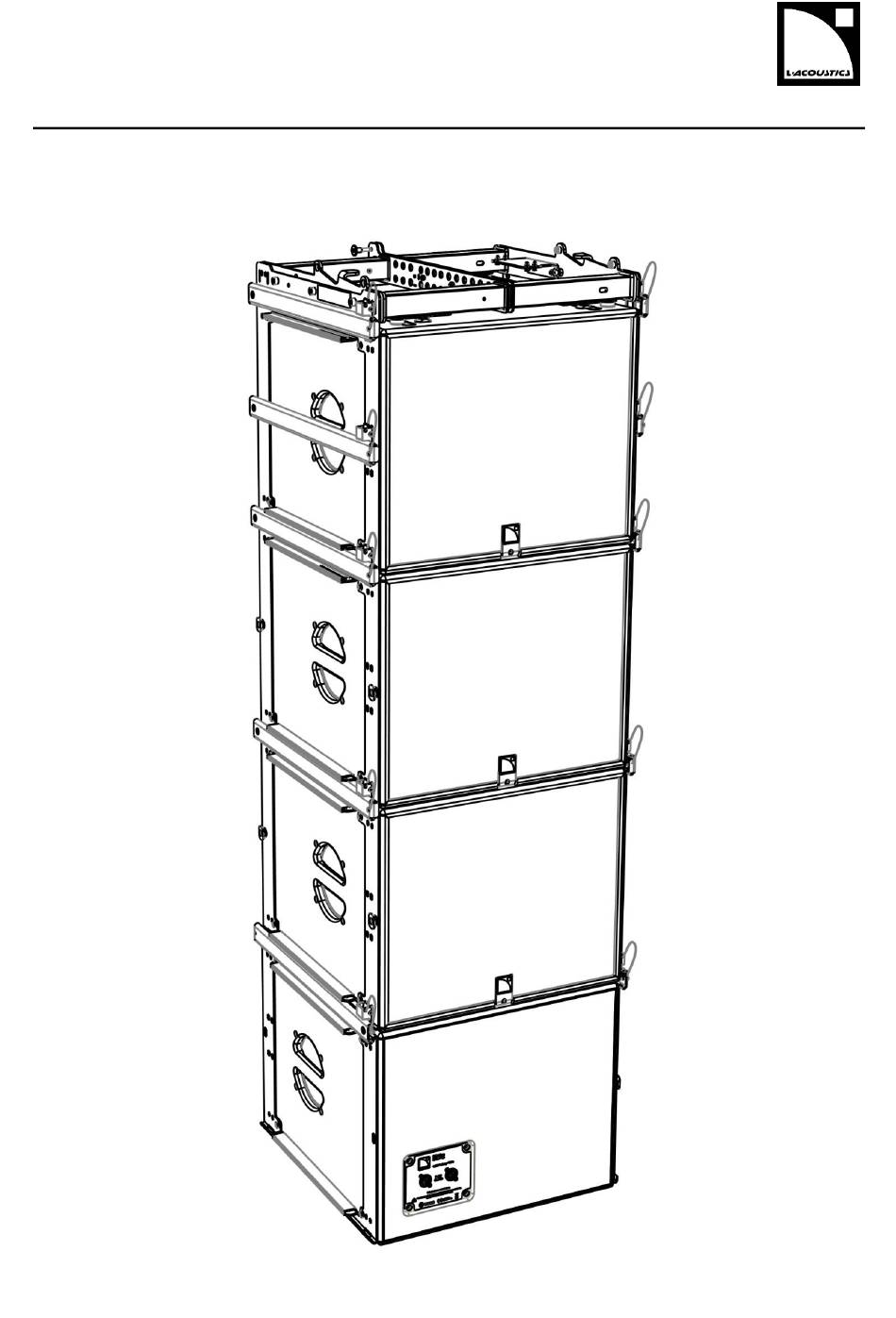

- Page 1 SB15m rigging manual (EN)
- Page 2 SB15 SUBWOOFER rigging manual VERSION 1.0 Document reference: SB15m_RM_EN_1.0 Distribution date: March 21, 2017 ©2017L-ACOUSTICS ® . All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher. w w w .
- Page 3 Do not stack the loudspeaker array on unstable ground or surface. If the array is stacked on a structure, platform, or stage, always check that the latter can support the total weight of the array. As a general rule, L-ACOUSTICS ®...
-
Page 4: Table Of Contents
This document contains essential information on rigging the system properly and safely. Carefully read this document in order to become familiar with these procedures. As part of a continuous evolution of techniques and standards, L-ACOUSTICS ® reserves the right to change the specifications of its products and the content of its documents without prior notice. -
Page 5: Rigging System
Proprietary 3D acoustical and mechanical modeling software. Other SB15m SYSTEM components All the other components of the system are presented in the SB15m user manual, document intended to describe the enclosures configuration and connection. w w w . l - a c o u s t i c s . c o m... - Page 6 VERSION 1.0 SB15m KIBU-SB SB15MRIG equipped with LOCKTAB (Delivered with the SB15m) SOUNDVISION Main components involved in the SB15m rigging process w w w . l - a c o u s t i c s . c o m...
-
Page 7: Mechanical Safety
2 MECHANICAL SAFETY Maximum configurations The SB15m rigging system complies with BGV-C1 (2012), DIN 18800 and EN ISO 12100-1 (2004) when the following vertical arrays are deployed. Ground-stacking Flying On the floor With KIBU-SB and shackle WLL 1 t With KIBU-SB and CLAMP250... -
Page 8: System Set-Up
Independent or mixed This document only deals with the independent rigging of the SB15m subwoofer enclosure. When the SB15m enclosure is used with a main system, some configurations can imply the set-up of mixed arrays, such as KIVA/SB15m arrays. Always refer to the rigging manual of the main system or enclosure to get acquainted with the rigging procedures specific to the mixed main/sub arrays. -
Page 9: Ground-Stacking
Stack and attach the enclosures (logo down) on top of each other. Refer to PROCEDURE A. Horizontal & On-end Place the SB15m enclosures side by side as indicated in the figure. Dismantling an array Apply the associated set-up procedure in reversed order. -
Page 10: Subset Procedures
Check that the yellow label is fully covered to know if the locking tab is fully engaged. PROCEDURE A Sliding the coupling bar between SB15m and KIBU-SB. Sliding the coupling bar between two SB15m. Always check that the yellow label is fully covered to ensure the locking tabs are fully engaged. -
Page 11: Installing A Shackle Or Clamp250
Installing a shackle or CLAMP250 The KIBU-SB is compatible with SB15m and KIVA. One side dedicated to KIVA and the other to SB15m. Refer to the KIVA-SB15m system rigging manual for more information about the use of the KIBU-SB with KIVA alone or KIVA and SB15m in mixed arrays. - Page 12 L-Acoustics, an L-Group Company 13 rue Levacher Cintrat – 91460 Marcoussis – France +33 1 69 63 69 63 – info@l-acoustics.com www.l-acoustics.com L-Acoustics GmbH L-Acoustics Ltd. L-Acoustics Inc. Steiermärker Str. 3-5 PO. Box Adler Shine - Aston House 2645 Townsgate Road, Suite 600...
