DS-6001DI Series Network Decoder
USER'S MANUAL
Version 3.0

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-6001DI Series

Summary of Contents for HIKVISION DS-6001DI Series

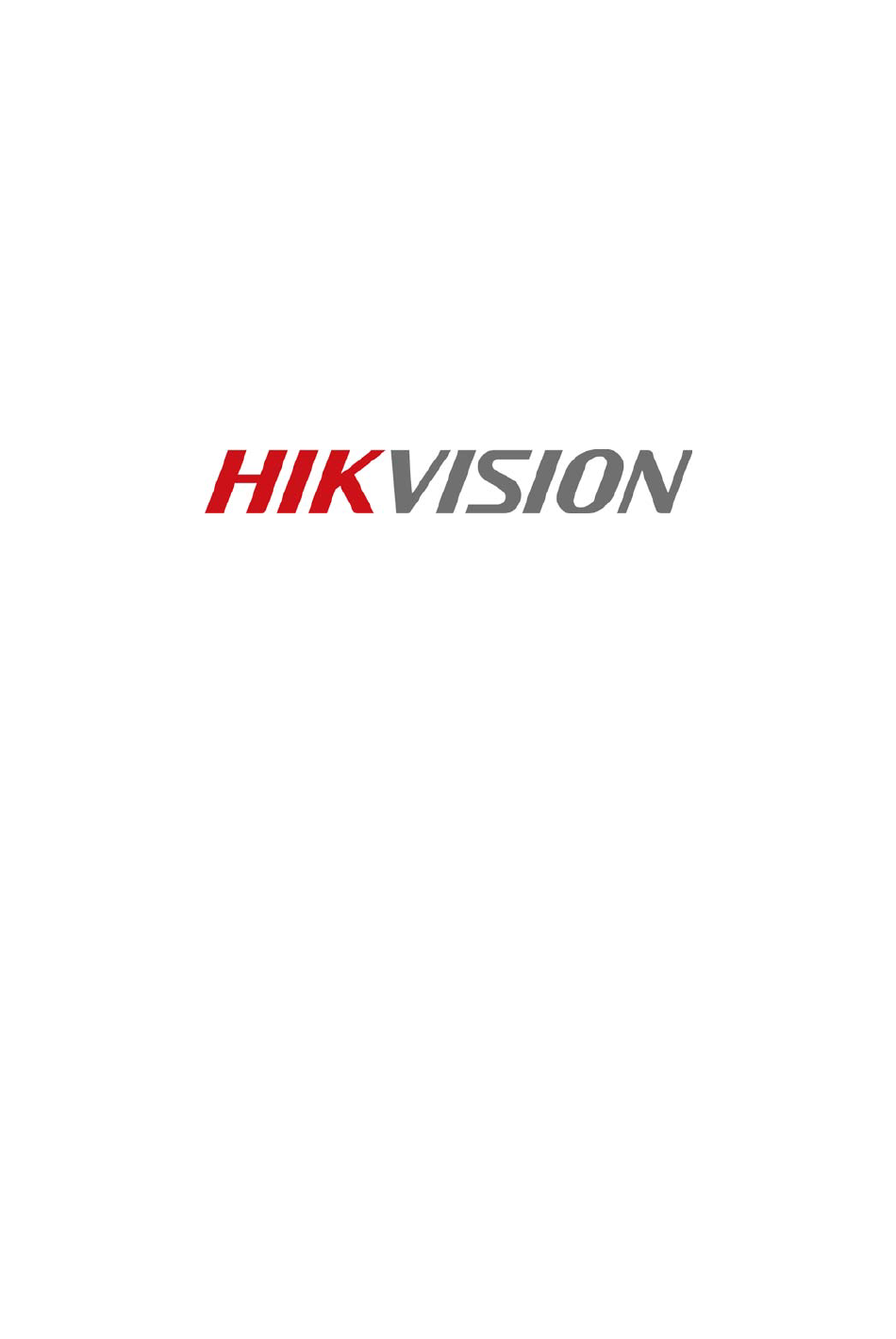

  • Page 1 DS-6001DI Series Network Decoder USER’S MANUAL Version 3.0...
  • Page 2 The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Hikvision Digital Technology Co., Ltd. (Hikvision). Hikvision assumes no responsibility or liability for any errors or inaccuracies that may appear in the book.
  • Page 3 Preventive and Cautionary Tips Before connecting and operating your DVS, please be advised of the following tips: • Ensure unit is installed in a well-ventilated, dust-free environment. • Keep all liquids away from the DVS. • Please check the power supply to avoid the damage caused by voltage mismatch. •...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Chapter1 Product Description…....................4 1.1 Product Introduction ......................4 1.2 Model Description ......................4 1.3 Main Features ........................4 Chapter2 Installation Guide ....................... 5 2.1 Attentions ........................5 2.2 Panel Description ......................5 2.3 The pin definition of physics interfaces ................6 2.3.1 PIN definition of RS-232 serial interface ..............

  • Page 5: Chapter1 Product Description

    Chapter1 Product Description 1.1 Product Introduction DS-6001DI Decoder is a network decoder that designed especially for the deployment and management of video monitoring system. DS-6001DI has a mature network function, and support a variety of network transmission protocols. It’s also with the powerful decoding engine which can support multiple encoding formats.

  • Page 6: Chapter2 Installation Guide

    Chapter2 Installation Guide 2.1 Attentions  Please read this guide carefully before installation.  Be sure to shut down all the related power supplies of equipment.  Check the voltage of power supply to prevent the device damage due to the voltage mismatching. ...

  • Page 7: The Pin Definition Of Physics Interfaces

    2.3 The pin definition of physics interfaces 2.3.1 PIN definition of RS-232 serial interface DS-6001DI decoder has one RS-232 standard serial interface, with RJ-45 connector. Its pin definition is as follows (‘I’ means input, and ‘O’ means output): Cable connects DS-6001DI to PC, one end of the cable is the 8-pin RJ45 connector and the other is DB9 connector.
  • Page 8 (2) PIN definition of the cross network cable connecting to DVS and host PC:...

  • Page 9: Chapter3 Parameters Configuration

    Chapter3 Parameters Configuration After hardware installation, firstly some network parameters of the server need to be configured, and then the video parameters configuration through client software. 3.1 Network Parameters Configuration The parameters which need DS-6001DI decoder to configure are including: Decoder IP address, Subnet mask, Port, etc.
  • Page 10 Step 4: Port Settings Set port parameters in com1 properties as shown in figure below: Bit Rate: 115200 Data Bits: 8 Parity: None Stop bits: 1 Flow control: None. Press “OK” after finishing setting, the Hyper Terminal interface as figure below will appear:...

  • Page 11: Configuration By Hyper Terminal

    Step: Disconnect and Save Session. According to the tips, disconnect and save session “aa” for the next time. After saving, there will be a new “Hyper Terminal” item established in the program group “Start”  “Programs” “Accessories” “Communications”  “Hyper Terminal” and “Connection” names of all Hyper Terminal are included.
  • Page 12 help Type “help” and enter, then the list of configuration commands will be seen as below:  help: console help command, Syntax: help “Shell command name”, Note: The shell command name is a string, it needs double quotation marks  ifshow: Show information of Ethernet.

  • Page 13: Configuration By Client Software

    setIp Function: Configure the network. System will shut down access to DHCP mechanism automatically and switch to static network configuration mode. Format: setIp “IP address”, “Subnet Mask”, “ Default Gateway”, “ Main DNS”, “Stand-DNS”, “Command Port”, “http P” Note: Case-sensitive. E.g.

  • Page 14: Appendix Ids-6001Di Specifications

    Appendix I DS-6001DI Specifications Model DS-6001DI Video compression H.264 Audio compression OggVorbis Decode resolution QCIF/CIF/2CIF/DCIF/4CIF Video output 1 channel BNC(1.0Vp-p,75Ω) Video output interface Frame rate(per channel) 4CIF: 25(P)/30(N) fps Stream type Video stream/Video & Audio stream Audio output 1 channel RCA (Linear, 600Ω) Audio output interface Communication...
