Summary of Contents for Nilfisk-Advance MX 307 H

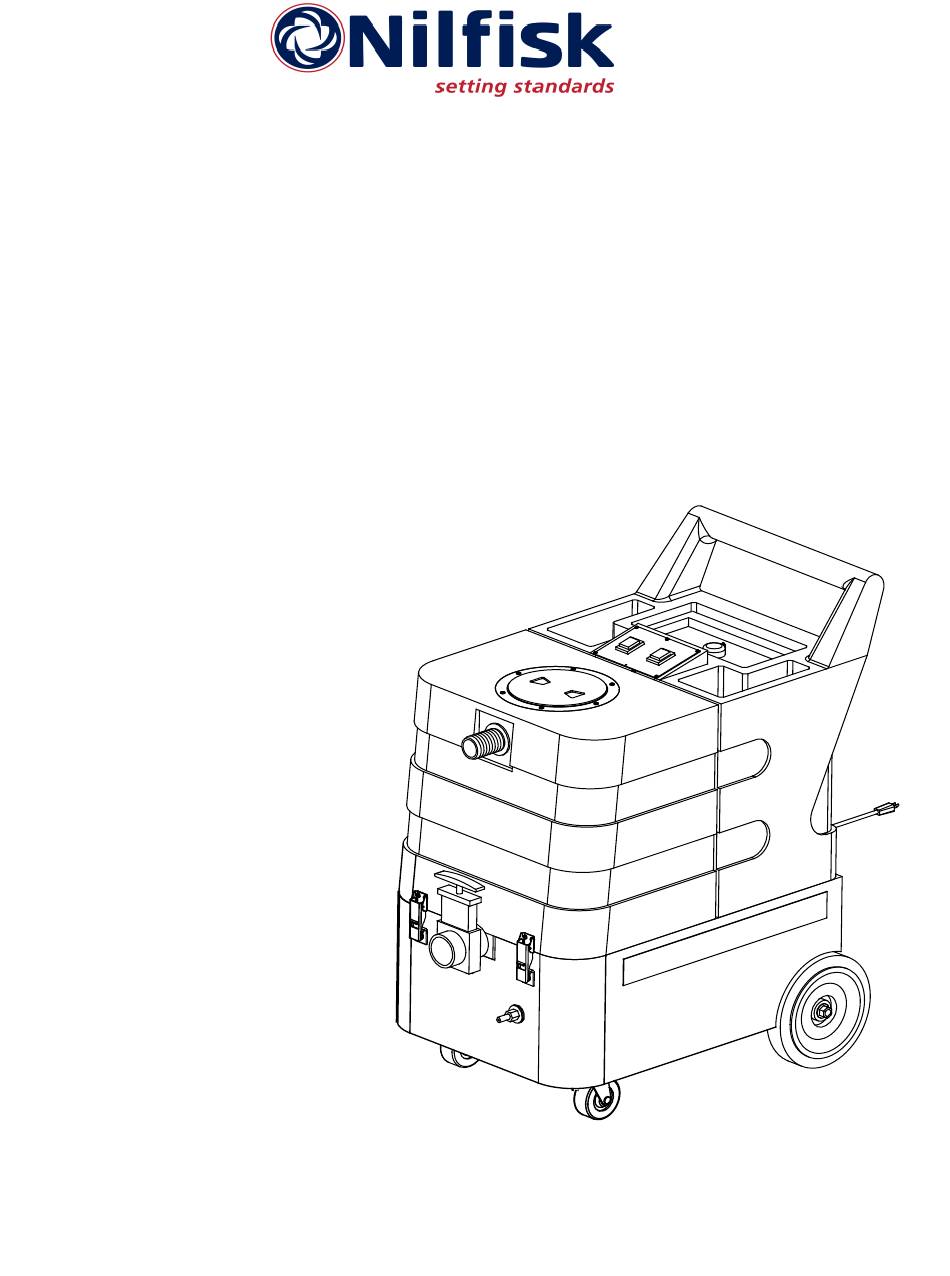

- Page 1 MX 307 H MX 307 H MX 307 H MX 307 H MX 307 H EXTRACTOR EXTRACTOR EXTRACTOR EXTRACTOR EXTRACTOR 220 - 240V EU & UK INFORMATION & OPERATING INSTRUCTIONS 10.2.2010...
-
Page 2: Important Safety Instructions
• To avoid electric shock, do not expose to rain or snow. Store, and use, indoors. • Wear hearing protection if desired. The measured sound level of the MX 307 H is 79dB(A). • Do not allow to be used as a toy. Close attention is necessary when used near children. -
Page 3: Cleaning Solutions
INSPECTION: Carefully unpack and inspect your MX 307 H for shipping damage. Each machine is tested and inspected before shipping. Any shipping damage incurred is the responsibility of the carrier. You should notify the carrier immediately if you notice damage to the box or to the... -
Page 4: Machine Descriptions
BECOME FAMILAR WITH YOUR NEW EXTRACTOR MACHINE DESCRIPTIONS Operator Handle (1) - Operator holds this to move the machine from one location to another. Solution Tank Lid (2) - Fill the solution tank here with warm water and chemicals. Switch Plate (3) - This is where the switches are located that operate the pump, vacuum, and heater. Recovery Tank Lid (4) - The recovery tank can be cleaned out by running clean water into this opening with the Drain Gate (7) open. -
Page 5: Operation
Refer to the drawings on the previous page OPERATION 1 Inspect the machine, hoses, and cleaning tools for cleanliness and completeness. 2 Fill the solution tank with warm water. Using warm water may be a benefit in cleaning effectiveness, but do not use hot water (above 54 C / 130 F+) in the tank. - Page 7 MX 307H EXTRACTOR EU & UK PART LIST 220 - 240V ITEM PART No. DESCRIPTION 600730701 Lid kit, vac tank and holding tank 600730702 Heat system replacement kit, 2000W 600730703 Heat sytem replacement kit, 1600W 600730704 Switch kit 600730705 Filter kit 600730706 Holding tank kit 600730707...
-
Page 8: Troubleshooting
ALWAYS UNPLUG THE MACHINE TROUBLESHOOTING BEFORE DISCONNECTING CONNECTING ANY WIRES OR C O M P O N E N T S CHECK THIS IF PROBLEM OCCURS Solution tank is empty. NO SPRAY Clogged spray tip. Pump not running. Valve on tool not operating. PUMP Pump should only run while spraying. -
Page 9: Maintenance Schedule
MX 307 H EXTRACTOR 220 - 240V MAINTENANCE SCHEDULE CLEAN ALL FILTERS CHECK POWER CORD FLUSH OUT with DESCALER REPLACE VAC MOTOR BRUSHES Around 1500 hours NOTES:...
