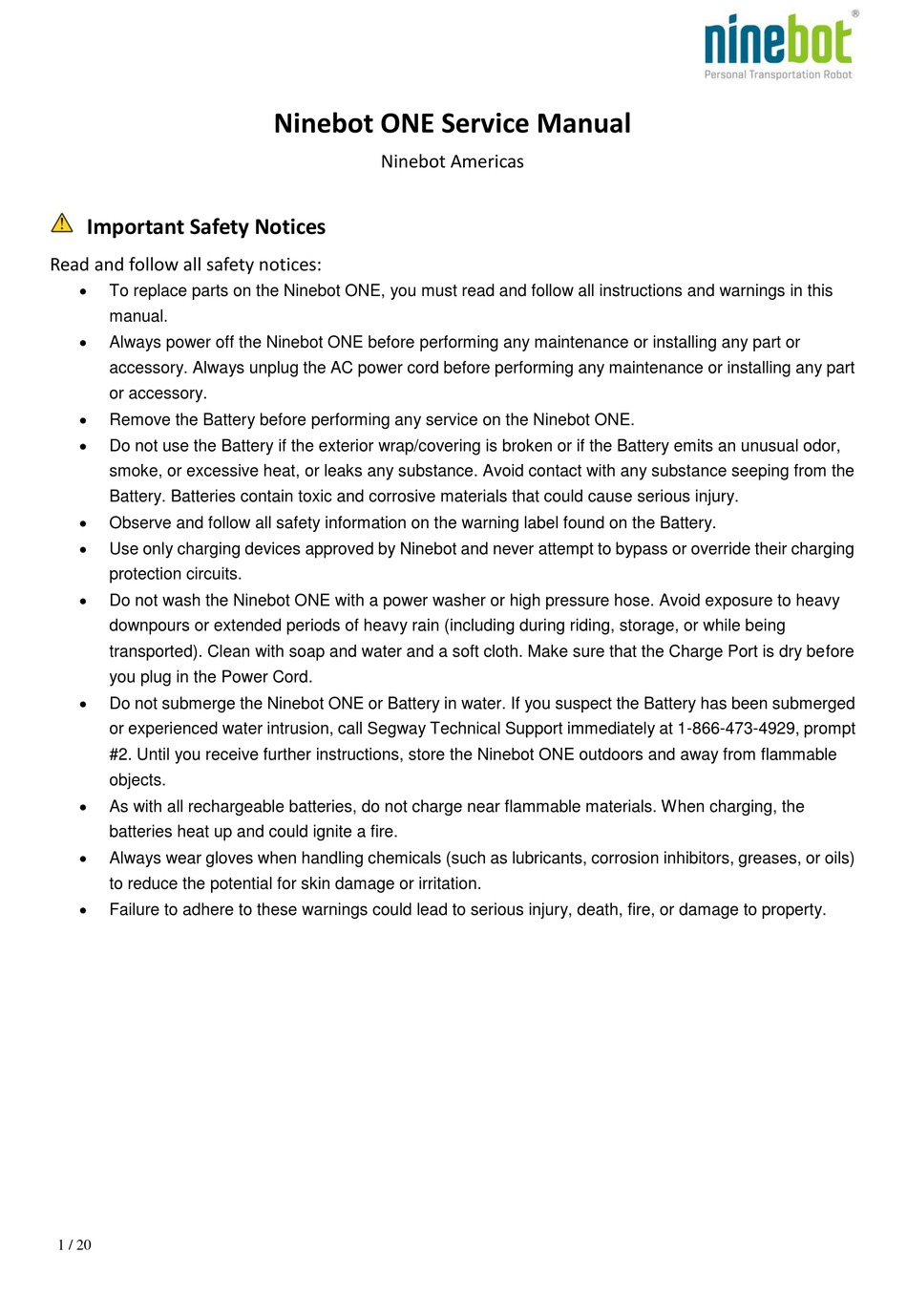

Important Safety Notices
Read and follow all safety notices:
To replace parts on the Ninebot ONE, you must read and follow all instructions and warnings in this
manual.
Always power off the Ninebot ONE before performing any maintenance or installing any part or
accessory. Always unplug the AC power cord before performing any maintenance or installing any part
or accessory.
Remove the Battery before performing any service on the Ninebot ONE.
Do not use the Battery if the exterior wrap/covering is broken or if the Battery emits an unusual odor,
smoke, or excessive heat, or leaks any substance. Avoid contact with any substance seeping from the
Battery. Batteries contain toxic and corrosive materials that could cause serious injury.
Observe and follow all safety information on the warning label found on the Battery.
Use only charging devices approved by Ninebot and never attempt to bypass or override their charging
protection circuits.
Do not wash the Ninebot ONE with a power washer or high pressure hose. Avoid exposure to heavy
downpours or extended periods of heavy rain (including during riding, storage, or while being
transported). Clean with soap and water and a soft cloth. Make sure that the Charge Port is dry before
you plug in the Power Cord.
Do not submerge the Ninebot ONE or Battery in water. If you suspect the Battery has been submerged
or experienced water intrusion, call Segway Technical Support immediately at 1-866-473-4929, prompt
#2. Until you receive further instructions, store the Ninebot ONE outdoors and away from flammable
objects.
As with all rechargeable batteries, do not charge near flammable materials. When charging, the
batteries heat up and could ignite a fire.
Always wear gloves when handling chemicals (such as lubricants, corrosion inhibitors, greases, or oils)
to reduce the potential for skin damage or irritation.
Failure to adhere to these warnings could lead to serious injury, death, fire, or damage to property.
1 / 20

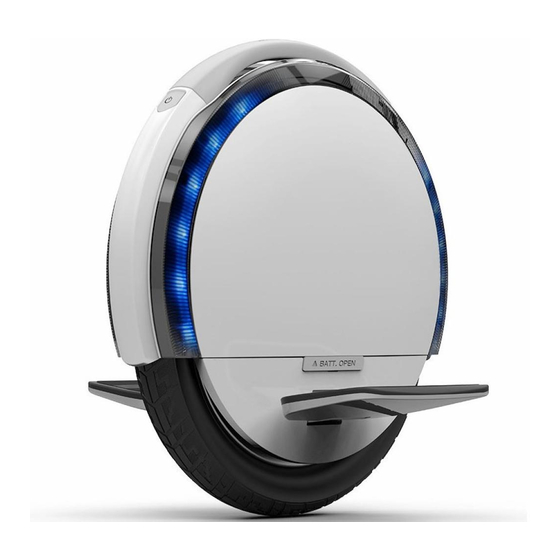

Ninebot ONE Service Manual
Ninebot Americas
Advertisement
Related Manuals for Ninebot ONE
Summary of Contents for Ninebot ONE
- Page 1 Important Safety Notices Read and follow all safety notices: To replace parts on the Ninebot ONE, you must read and follow all instructions and warnings in this manual. Always power off the Ninebot ONE before performing any maintenance or installing any part or accessory.
-
Page 2: Table Of Contents
CONTENTS LED Shell Removal ............................3 LED Strip Replacement .............................5 Battery Removal ...............................6 Control Board Replacement ..........................8 Charging Port Replacement ........................... 11 Handle Replacement ............................. 13 Motor Replacement ............................15 Motor Noise Troubleshooting ........................18 2 / 20... -
Page 3: Led Shell Removal
1. Gently use a flathead screwdriver to release the locking tabs. Use your hands to pull the LED Shell off of the Ninebot ONE. Pay attention to the wires near the top of the Ninebot ONE. Be sure to replicate the original wiring layout when re-installing the LED Shell. - Page 4 2. The black shell has two LED strips. The front LED strip is connected to the connector marked with "1" and the rear LED strip is connected to the connector marked with "2." 3. Reinstall the LED shell in the reverse order of removal. 4 / 20...
-
Page 5: Led Strip Replacement
LED Strip Replacement If an LED strip is inoperable or damaged, replace it by following the steps below. 1. Remove the LED shell (see LED Shell Removal). Gently remove the damaged LED strip by pulling it out in the direction indicated. 2. -
Page 6: Battery Removal
Battery Removal 1. Remove the LED Shell on the right side of the Ninebot ONE (see LED Shell Removal). 2. Open the battery compartment cover using a Phillips-head screwdriver to remove the two screws. 2. Remove the battery compartment cover, paying attention to the wiring harness layout. - Page 7 3. Disconnect the battery connectors as shown below. 4. Battery removal is complete. Reinstall in the reverse order of removal. 7 / 20...
-
Page 8: Control Board Replacement
Control Board Replacement 1. Remove the LED shell on both sides of the Ninebot ONE (see LED Shell Removal). 2. Remove the battery (see Battery Removal). 2. Open the control board compartment cover using a Phillips-head screwdriver to remove the two screws (left side of the Ninebot ONE). - Page 9 3. After disconnecting the motor cable, use a Phillips-head screwdriver to remove the six screws shown below. 4. After removing the screws, disconnect the power wire and take out all the wires from the white protective clip, paying attention to the wiring harness layout. 9 / 20...
- Page 10 5. Disconnect the power button wire. 6. Replace the control board in the reverse order of removal. 10 / 20...
-
Page 11: Charging Port Replacement
Charging Port Replacement 1. Remove the LED Shells (see LED Shell Removal), Battery (see Battery Removal), side casings (see Motor Replacement), and motor (see Motor Replacement). 2. Use a 17 mm wrench to remove the fastener from the charging port. 11 / 20... - Page 12 3. Remove the fastener, charging port assembly, and 3M tape as seen below. 4. Installation is in the reverse order of removal. 12 / 20...
-
Page 13: Handle Replacement
Handle Replacement 1. Remove the motor (see Motor Replacement). 2. Use a 4 mm hex key to remove the handle bar screws, as shown below. 2. Use a 2 mm hex key to remove the screws as shown below. 3. Remove the screws directly from the arm and base assembly, then remove the e-clip with side cutters as shown below. - Page 14 4. To remove the washer and axle, press down the custom type e-circle shaft end and pull out the axle. 5. Disassembled Handle bar assembly: 6. Installation is in the reverse order of removal. 14 / 20...
-
Page 15: Motor Replacement
Motor Replacement 1. Remove both LED Shells (see LED Shell Removal). 2. Remove the battery (see Battery Removal). 3. Remove the control board cover and unplug the motor/control board cable (see Control Board Replacement). 15 / 20... - Page 16 4. Use a hex Key (M3) to remove the foot pedals as shown. 5. Remove the rod using a hex key or similar tool to press it out. 6. Remove the ankle pads by prying them off with your hands. Use a 3 mm hex key to remove the four screws as shown.
- Page 17 7. Remove the decorative shell (right side of the Ninebot ONE) using a Phillips-head screwdriver to remove the four screws as shown. 8. Use a 3 mm hex key to remove the casing screws (right side of the Ninebot ONE only) then disconnect the wiring before gently pulling the casing off.
-
Page 18: Motor Noise Troubleshooting
Motor Noise Troubleshooting Issue: Sometimes when riding Ninebot ONE some noise can be heard coming from the right side of the unit. In this case, usually the motor is rubbing slightly against the casing, resulting in abnormal noise. Follow the procedure below to address this issue. - Page 19 10. Use a 21 mm wrench to remove the nut (place a screwdriver into the hole at the bottom of the pedal to give additional leverage for removing the 21mm Nut). 11. Remove the foot pedal bracket. Gently use a chisel or flathead screwdriver to remove the flat washer.
- Page 20 13. Install the foot pedal flat half-moon washers as shown below. 14. Tighten the nut, then install the two pins removed earlier into the foot pedal bracket (see Step 3 above). Gently use a hammer to tap the pins into place. Tighten the Nut 15.
