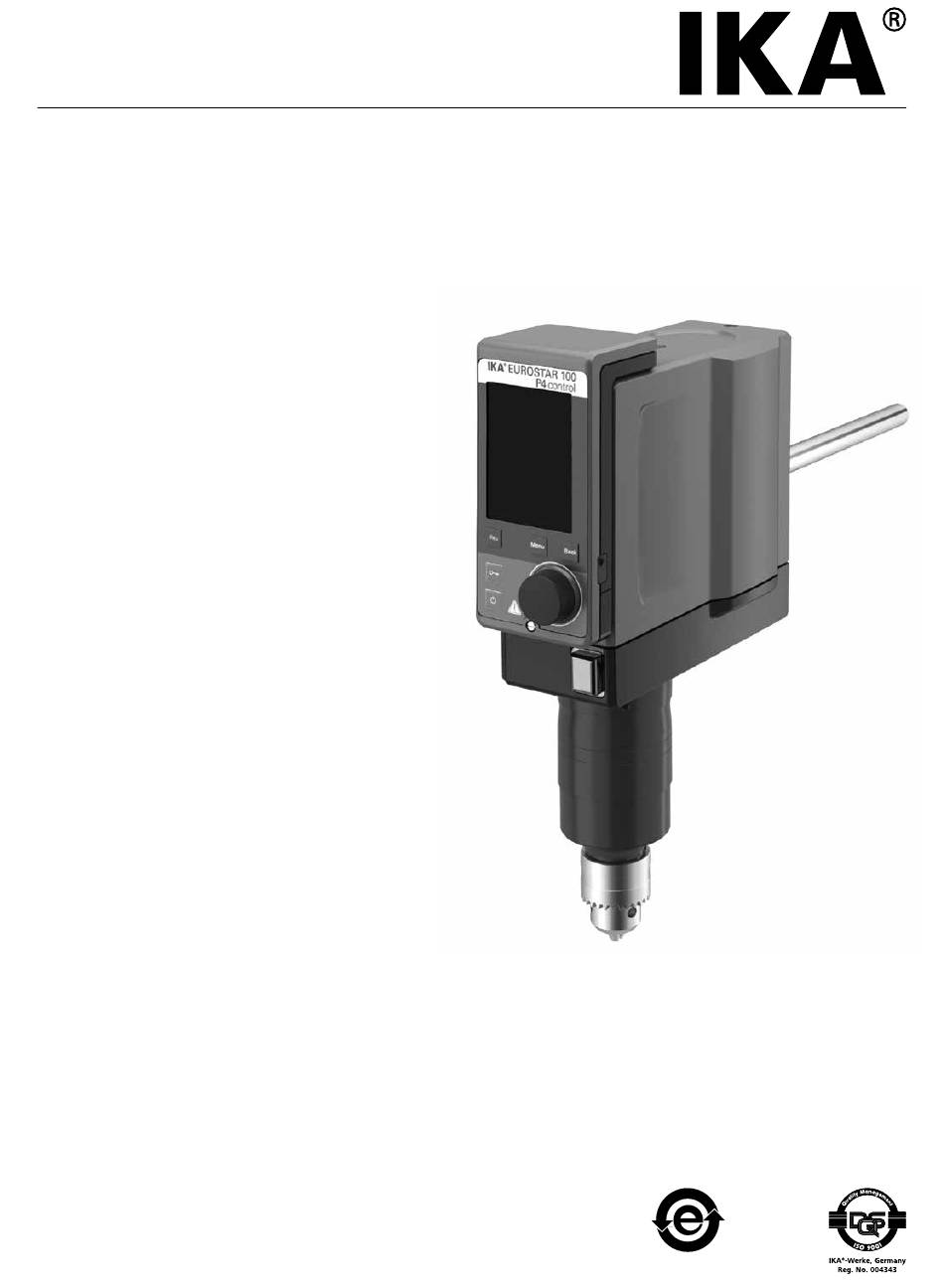

- Page 1 20000015715 EUROSTAR 100 P4 control_112017 EUROSTAR 100 P4 control ® Operating instructions...
- Page 2 EUROSTAR 100 P4 control Wireless Controller station (WiCo) Fig. 2 Fig. 1 Fig. 3 Fig. 4 RS 232 Temp. Sensor Fig. 5 Fig. 6 Fig. 7 Fig. 8...
-
Page 3: Table Of Contents
Drive Error codes Motor protection Warranty Speed – normal operation Accessories Speed – overload operation Permitted IKA ® stirrer tools Output shaft Technical data Speed display Declaration of Conformity We declare under our sole responsibility that this product corresponds to the regulations 2014/35/EU, 2006/42/EC, 2014/30/EU and 2011/65/EU and conforms with the standards or standardized documents EN 61010-1, EN 61010-2-051, EN 61326-1, EN 60529 and EN ISO 12100. -
Page 4: Explication Of Warning Symbols
(e.g. shatter protection). In any case, when using • The device can only be disconnected from the mains supply by critical or hazardous materials in your processes, IKA ® recom- pulling out the mains plug or the connector plug. - Page 5 Disposal instructions: havior of the device and the whole assembly. Glass apparatus • When disposing of the IKA ® battery pack, please tape over the and stirrer containers can be damaged or shattered by this. It...
-
Page 6: Correct Use
- Any damage should be notified immediately to the shipping agent (post, rail or logistic company). • Delivery scope: Adapter Adapter - EUROSTAR 100 P4 control station with a WiCo Europe, Switzerland USA, China - Extension arm - Hexagonal socket screw... -
Page 7: Speed - Overload Operation
Message in the display: Error 4 (see “Error codes” section). Output shaft The clamping chuck and output shaft permit clamping IKA recom- Please see section “Safety instructions“! ®... -
Page 8: Switching On The Device
RB 1 battery pack! - Install the driver automatically, if it is not already installed - Prompt the user to perform a manual installation Open http://www.ika.com/ika/lws/download/usb-driver.zip Switching on the device Check whether the voltage given on the type plate corresponds to The control elements of the WiCo can be disabled by pressing the button (L, see Fig. -
Page 9: Useful Information
Useful information The stirrer is controlled via a WiCo. If the WiCo is attached to the The WiCo can be attached to the stirrer (station), or can be in- EUROSTAR station, data exchange between the stirrer (station) stalled in a safe place easily accessible by you while the stirrer is and WiCo is performed via the contacts (E, Q, see Fig. - Page 10 PC control: Intermittent mode: controlled 00:00 This symbol means that either the EUROSTAR station or the This symbol indicates that the stirrer is in intermittent mode. WiCo is connected to a computer and the stirrer is being con- trolled from the computer. Note: the symbol changes the direction of rotation (clockwise 00:00...
- Page 11 60 % Battery mode 20 % Firmware Update Info activated Sound Volume 100 % Key Tone Factory Settings Communication Device name IKA ES100P4 WiCo Remote Control activated Other Bluetooth activated Max Speed Information Stirring Max Torque Interval Run Interval Stop...
- Page 12 1000 rpm when anchor stirrer torque is shown in the display. A tick shows that the option is 1330 is selected. activated. For detailed information, refer to section “Permitted IKA ® stirrer tools”. Note: Pressing the "Back" button while the device is running resets the torque to 0 Ncm.
- Page 13 Temperature: Programs: In the ”Temperature” menu you can specify that the temperature Under menu "Programs", 5 user-defined speed (rpm)-time pro- sensor is displayed on the display/working screen. A tick shows that files can be created. In addition, you could define the intermittent the option is activated.
- Page 14 View the program in graph: After a program is being edited, press the "Back" button to save the settings. Press the "Back" button again, the screen back to follow screen. Programs Program 1 Program 2 Program 3 Program 4 Program 5 Start Edit Delete...
- Page 15 Example for editing the program: PROGRAM 1 PROGRAM 1 Programs Programs Programs Time Interm. Time Interm. hh:mm Mode hh:mm Mode Program 1 Program 1 Program 1 00:00 00:00 Program 2 Program 2 Program 2 Program 3 Program 3 Program 3 Program 4 Program 4 Program 4...
- Page 16 Settings: Safety: Languages: Time Out: The “Languages“ option allows you to select the desired lan- In the “Time Out“ menu, you can set a time limit. This time limit guage by turning and pressing the rotary/push knob (B). A tick applies if there is a communication failure between the station indicates the language that is set for the system.
-
Page 17: Interfaces And Outputs
PC. With a suitable terminal Install the driver by running the setup file. Then connect the IKA ® or communications programme these commands can be transmit- device through the USB data cable to the PC. - Page 18 Connection capability: WiCo to the EUROSTAR station: USB micro B USB micro A micro A micro B USB 2.0 cable micro A – micro B Connection capability: EUROSTAR station to the computer: 9-pin RS 232 9-pin RS 232 PC 1.1 cable USB 2.0 cable USB A –...
-
Page 19: Maintenance And Cleaning
When ordering spare parts, please give: - machine type Cleaning: - manufacturing number, see type plate - item and designation of the spare part see www.ika.com, For cleaning disconnect the main plug! spare parts diagram and spare parts list - Software version. -
Page 20: Accessories
Stainless steel sensor R 271 Cross sleeve RH 5 Strap clamp H 66.51 Stainless steel sensor, glass-coated R 301 Stirrer shaft protection See more accessories on www.ika.com. Permitted IKA stirrer tools ® max. speed max. speed (rpm) (rpm) R 1330... -
Page 21: Technical Data
Technical data EUROSTAR 100 P4 station Speed range under nominal load 0 / 10–300 Speed adjustment Stepless Speed display TFT / WiCo Speed setting accuracy ± 1 Deviation – speed measurement ± 3 Intermittent operation Reversible direction of rotation Torque trend measurement Torque trend display Max. - Page 22 WiCo Permitted on time Max. communication distance (dependent on the building) m Dimensions (W x D x H) 71 x 74 x 151 Weight 0.28 Ambient temperature °C + 5 ... + 40 Ambient humidity (relative) Protection class according to EN 60529 IP 40 Interface RB 1 Battery pack...
- Page 23 -Werke GmbH & Co.KG ® Janke & Kunkel-Str. 10 D-79219 Staufen Tel. +49 7633 831-0 Fax +49 7633 831-98 sales@ika.de www.ika.com...
