The Model RPC30 (-LON) Room Pressure Controller must be wired to 24 VAC only. Wiring the unit to
110 VAC will cause serious damage to the unit and void the warranty.
The pressure sensor must be mounted through the wall between the controlled space (isolation room) and
referenced space (ante room / hallway).
Go to
www.tsi.com
to download the Operation and Service Manual for the Model RPC30.
These installation instructions guide the installer through the installation of the TSI Model RPC30 (-LON)
PresSura Room Pressure Controller. Please read these instructions thoroughly before beginning installation.
This product is classified by UL as to fire resistive properties only. See UL File R15545.
Figure 1: Typical Installation
_____________________
TSI and TSI logo are registered trademarks of TSI Incorporated. PresSura is a trademark of TSI Incorporated.
BACnet is a trademark of ASHRAE. Modbus is a registered trademark of Modicon, Inc.
LonWorks is a registered trademark of Echelon® Corporation.
MODEL RPC30 (-LON) PRESSURA
ROOM PRESSURE CONTROLLER
WARNING
Component List
Part Number
800243
801913
800983/800984
INSTALLATION INSTRUCTIONS
Qty
Description
1
Pressure sensor
with cable
or
1
Transducer Pick-
ups
1
RPC30 /
RPC30-LON Room
Pressure
Controller
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRESSURA RPC30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TSI Instruments PRESSURA RPC30

Summary of Contents for TSI Instruments PRESSURA RPC30

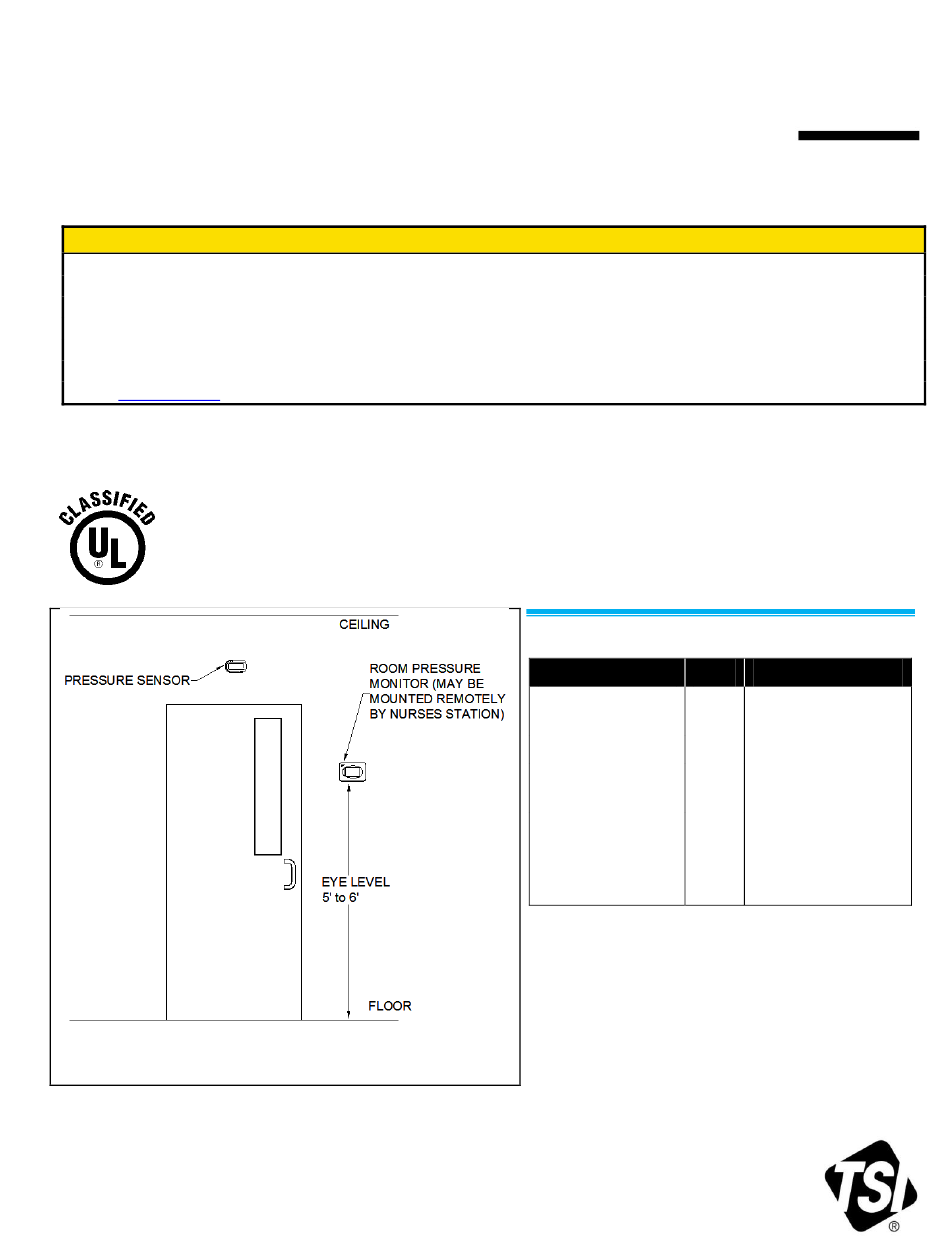

  • Page 1 MODEL RPC30 (-LON) PRESSURA ™ ROOM PRESSURE CONTROLLER INSTALLATION INSTRUCTIONS WARNING The Model RPC30 (-LON) Room Pressure Controller must be wired to 24 VAC only. Wiring the unit to 110 VAC will cause serious damage to the unit and void the warranty. The pressure sensor must be mounted through the wall between the controlled space (isolation room) and referenced space (ante room / hallway).

  • Page 2: Pressure Sensor Installation

    Pressure Sensor Installation WARNING 800243 pressure sensor must be mounted through the wall between the controlled space (isolation room) and referenced space (hallway), exactly as shown in Figure 1 and Figure 3.  Determine pressure sensor location (Figure 1, Figure 3 and Figure 4). Pressure sensor typically mounts in the reference space, and the dummy housing mounts in the isolation room.
  • Page 3 CEILING ½ THE DISTANCE BETWEEN CEILING & DOOR JAMB PRESSURE DUMMY SENSOR COVER BLACK FIRE SEALANT RING MUST INSERT INTO 2 ¼” HOLE CONTROLLED SPACE REFERENCE SPACE (TYPICALLY A HALLWAY) Figure 3: Cutaway View of Mounted Pressure Sensor Figure 4: Pressure Sensor Mounting p.

  • Page 4: Pressure Transducer Installation

    Pressure Transducer Installation mounts in the reference space, and the plate WARNING mounts in the clean room. 801913 pressure plates must be mounted in the wall between the controlled space (clean room) Drill a 2¼-inch hole through each side of the wall ...

  • Page 5: Pressure Controller Installation

    Pressure Controller Installation Pressure Controller Rough-in  Select the mounting location of the pressure controller. The construction plans normally show the mounting location. If no location is specified, then the unit is typically installed as shown in Figure 1. Alternate mounting locations are nurses’ station, other staff areas, etc. ...

  • Page 6: Power Requirements

     Press cover plate onto PresSura Controller. Power Requirements Through the Wall Digital Interface Sensor Each Module (DIM) Each 24VAC, 50/60 Hz, 3VA 24VAC, 50/60 Hz, 3VA WARNING: Controller must be wired exactly as wire diagram shows. Making modifications to the wiring may severely damage the unit.
  • Page 7 WARNING: Controller must be wired exactly as wire diagram shows. Making modifications to the wiring may severely damage the unit. Figure 9: Optional Anteroom Through-The-Wall Sensor Wiring to Model RPC30 p. 7 of 20...
  • Page 8 Figure 10. Wiring Diagram – Pressure Transducer Sensor to Model RPC30 p. 8 of 20...
  • Page 9 Figure 11. Optional Anteroom Pressure Transducer Sensor Wiring to Model RPC30 Figure 12. Optional Supply & Exhaust Flow Switch Wiring to Model RPC30 p. 9 of 20...
  • Page 10 Figure 13. Optional Supply & Exhaust Pressure-Based Flow Station Wiring to Model RPC30 Figure 14. Optional Supply & Exhaust Linear Flow Station Wiring to Model RPC30 p. 10 of 20...
  • Page 11 Figure 15. Optional Supply & Exhaust Venturi Valve Wiring to Model RPC30 Figure 16. Optional Door Switch Wiring to Model RPC30 p. 11 of 20...
  • Page 12 Figure 17. Optional Occupancy Sensor Wiring to Model RPC30 Figure 18. Optional Temperature Sensor Wiring to Model RPC30 p. 12 of 20...
  • Page 13 Figure 19. Optional Keyswitch Wiring to Model RPC30 p. 13 of 20...
  • Page 14 Figure 20. Optional Keyswitch with Remote Alarm Wiring to Model RPC30 p. 14 of 20...
  • Page 15 Figure 21. Optional Relative Humidity Sensor Wiring to Model RPC30 Figure 22. Optional Temperature Setpoint Wiring to Model RPC30 p. 15 of 20...
  • Page 16 24V IN 24V OUT INPUT 1 RELAY 1 RELAY 2 SENS COMM ALARM ALARM INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6 INPUT 7 EXH CNTRL OUTPUT 2 OUTPUT 3 NURSE COMM BAC/LON/MOD TEMPERATURE SENSOR Figure 23. Optional Supply Air Temperature Sensor Wiring to Model RPC30 Figure 24.
  • Page 17 Figure 25. Optional Reheat Actuator Wiring to Model RPC30. NOTE: A 120Ω resistor should be installed on both ends of the RS-485 loop. Figure 26. Wiring Diagram – Optional Nurses Station Communications Wiring to Model RPC30 p. 17 of 20...
  • Page 18 NOTE: A 120Ω resistor should be installed on both ends of the RS-485 loop. Figure 27. Optional Modbus and BACnet MS/TP Communications Wiring to Model RPC30 Figure 28. Optional LONworks Communications Wiring to Model RPC30 p. 18 of 20...
  • Page 19 Figure 29. Proper Communication Wiring Diagram p. 19 of 20...

  • Page 20: Tsi Actuator/Damper Installation

    TSI Actuator/Damper Installation WARNING Building prints normally determine damper location and mounting configuration. They supersede the guidelines below.  The actuators are shipped mounted to the damper. No adjustments are needed prior to mounting the assembly.  The damper must be installed with the damper shaft parallel to the ground (Figure 30). ...
