BIPAC-5100 / 5100W
(Wireless) ADSL Router
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIPAC 5100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billion BIPAC 5100

Summary of Contents for Billion BIPAC 5100

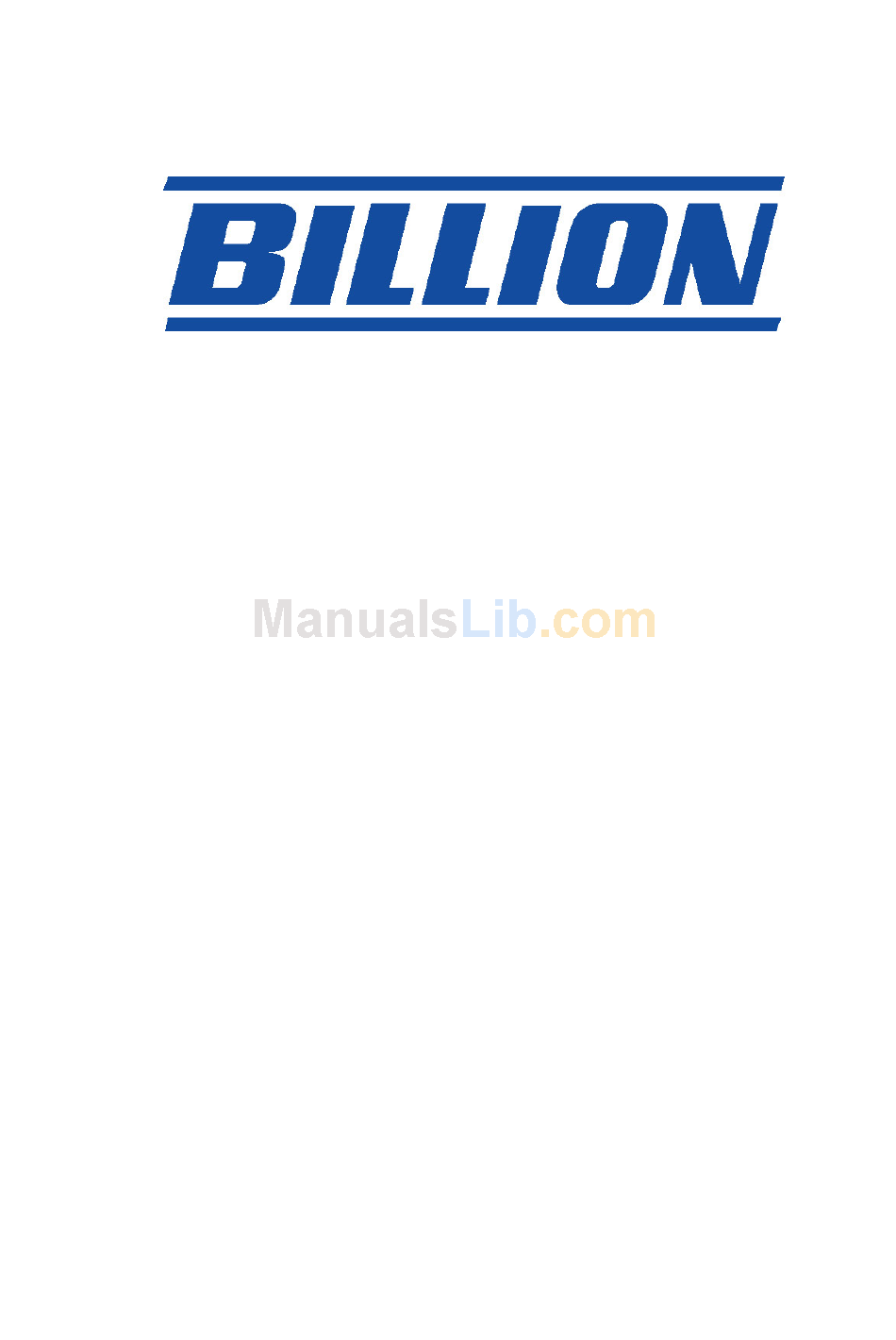

  • Page 1 BIPAC-5100 / 5100W (Wireless) ADSL Router Quick Start Guide...

  • Page 3: Package Contents

    For more detailed instructions on configuring and using the (Wireless) ADSL Firewall Router, please refer to the on-line manual. Package Contents BIPAC-5100 / 5100W ADSL Router CD-ROM containing the online manual RJ-11 ADSL/telephone Cable Ethernet (CAT-5 LAN) Cable AC-DC power adapter (12VDC, 1A) This Quick Start Guide Do not use the BIPAC-5100 / 5100W in high humidity or high temperatures.

  • Page 4: The Front Leds

    Quick Start Guide The Front LEDs PPP : ADSL: LAN Port 1-4: WLAN : (5100W only) SYS : PWR : Meaning Lit steady when there is a PPPoA / PPPoE connection. Lit when successfully connected to an ADSL DSLAM (“linesync”). Lit when connected to an Ethernet device.

  • Page 5: The Rear Ports

    The Rear Ports ＊ ＊ Only the BIPAC-5100W has a wireless interface and antenna. BIPAC-5100 router does NOT have an antenna or wireless interface. Port Power Switch Power ON/OFF switch RESET 1X — 4X (RJ-45 connector) CONSOLE LINE Billion BIPAC-5100 / 5100W ADSL Router Connect the supplied power adapter to this jack.

  • Page 6: Connecting Your Adsl Router

    Quick Start Guide Connecting Your ADSL Router 1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network. 2. Power on the device. 3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit. (For 5100W only: the WLAN LED will be lit steadily).

  • Page 7: Configuring Pc In Windows Xp

    Configuring PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.

  • Page 8: Configuring Pc In Windows 2000

    Quick Start Guide Configuring PC in Windows 2000 Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. 4.

  • Page 9: Configuring Pc In Windows 98/Me

    Configuring PC in Windows 98/Me 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP/IP -> NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC. 3.
  • Page 10 Quick Start Guide Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click OK.
  • Page 11 Configuring Your ADSL Firewall Router To configure this device, you must have IE 5.0 / Netscape 4.5 or above installed Open the web browser and type http://192.168.1.254 address box. This number is the default IP address for this router. Press Enter. 2.

  • Page 12: Product Support And Contact Information

    Quick Start Guide Verifying Your Local Network Connection with the Device To see if this ADSL Router is visible on the local network, go to Start / Run. In the Run dialog box, type “ping 192.168.1.254” then press OK. A command prompt window will pop out.
