Safety, Operation, Maintenance and Parts

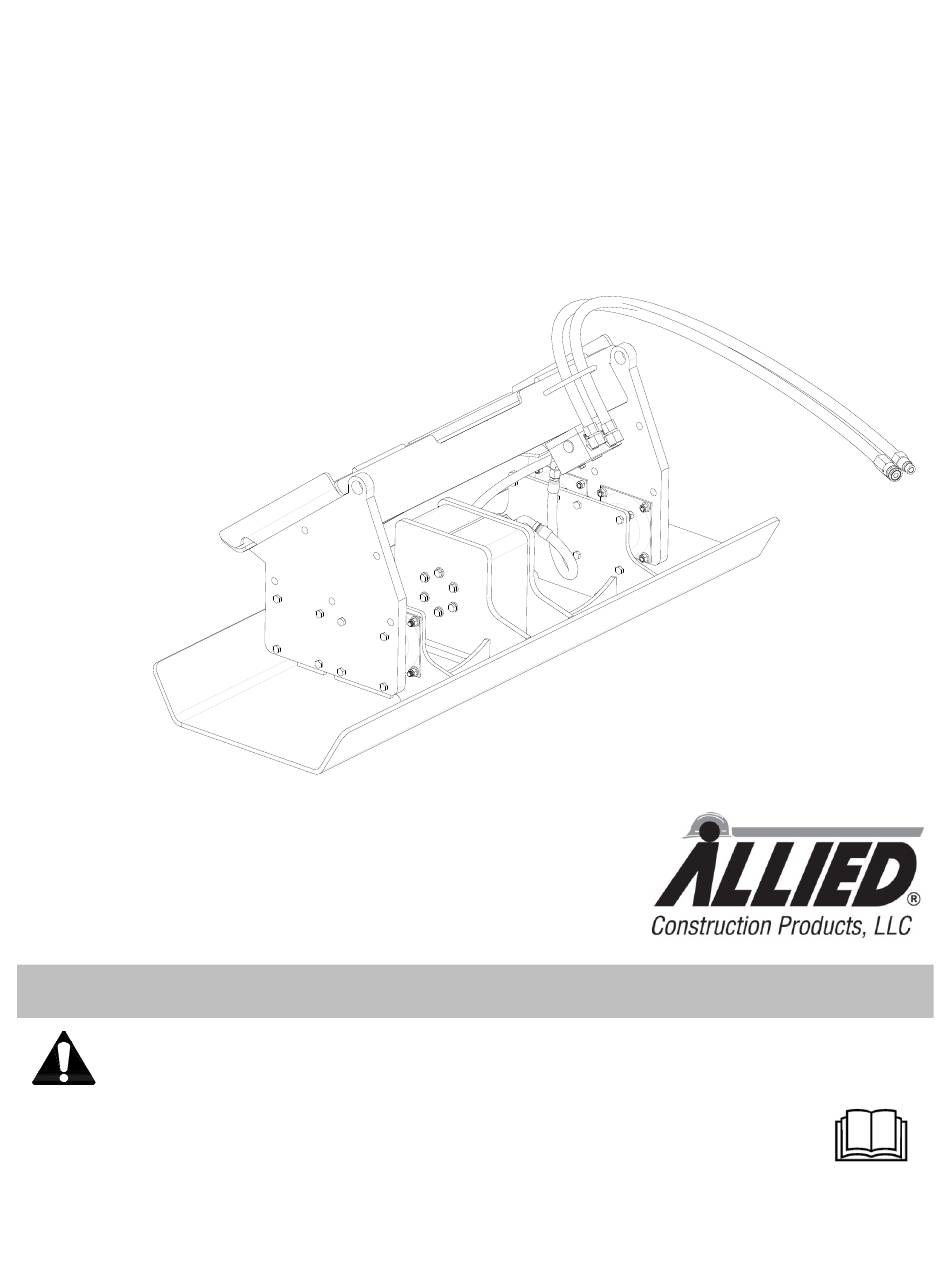

Thoroughly read and understand the content of this manual before using the Allied Skid-Pac. The safe and
efficient use of the Allied equipment depends upon proper installation, operation, maintenance and training.
Keep this manual in a convenient location so that it is easily accessible for future reference. Contact your
Allied Dealer or the Allied Customer Service Department for replacement manuals. Inquiries regarding
the content of this manual must include effective date shown on inside cover.
Skid-Pac
Vibratory Plate
Compactor/Driver
Model 1000 &
TM
1000B
TM573936
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allied Skid-Pac 1000
Summary of Contents for Allied Skid-Pac 1000
- Page 1 1000B Safety, Operation, Maintenance and Parts Thoroughly read and understand the content of this manual before using the Allied Skid-Pac. The safe and efficient use of the Allied equipment depends upon proper installation, operation, maintenance and training. Keep this manual in a convenient location so that it is easily accessible for future reference. Contact your Allied Dealer or the Allied Customer Service Department for replacement manuals.
- Page 2 When changes become necessary, these will be noted in the table below. Specifications are based on published information at the time of publication. Allied Construction Products, LLC, reserves the right to change, edit, delete or modify the content of this document, including descriptions, illustrations and specifications without prior notification. For document updates go to www.alliedcp.com...
- Page 3 Signal Words Safety messages appear throughout this manual and “DANGER”, “WARNING” and “CAUTION” are signal on labels affixed to the Allied equipment. Read and words used to express severity of consequences understand the information communicated in safety should a hazard be encountered.
- Page 4 Pictograms are used to rapidly communicate Falling object information. For the purposes of this manual and Unsupported loads labels affixed to the Allied equipment, pictograms are defined as follows: Read the manual before use. Refer to the manual for further Crush point / Falling part details or procedures.
- Page 5 Lift Point- Decal identifies approved lift points of the Allied work tool. Supply Pressure Tag – A red colored cable tie marked ‘PRESSURE’ is attached to the SUPPLY hose of the Allied work tool for ease of identification between hoses.
- Page 6 Allied Construction Products, LLC www.alliedcp.com SAFETY Information – [cont’d] Skid-Pac 1000B Fig. A - Label Positions Identified Table S.2 Information Labels Type Description Part No. Remarks / Specifications Decal Set – 1000B 578196 1-Set Set includes 1-5,8,9,10.2,11 Decal Set - 1000...
- Page 7 Only qualified personnel may operate and service the Allied equipment. Other manuals, such as those published by the machinery Locating existing underground service and utility used in support of the Allied equipment, should also lines be read. Establishing pedestrian barriers ...
- Page 8 Operational Safety Program components. Reinstall all guards after service or adjustments are completed. The safe and efficient use of the Allied equipment depends upon proper installation, operation, Where it was not possible to prevent an unsafe maintenance and repair. Operational safety programs situation by means of a guard, safety messages must encompass all of these elements.
-
Page 9: Table Of Contents
Allied Construction Products, LLC www.alliedcp.com Table of Contents Section Page Section Page Contact Information & Document Revisions 6.0 Mounting Information….…………..…….. Safety Messages Used in This Manual…………. 6.1 Mounting the Skid Pac………………….. Safety Messages, Alert Symbol, Signal Words, thru Pictograms Identified, Information Labels 7.0 Install &... - Page 10 Safety Alert Symbol…………………………….. Components of Safety Message-Typical…..Meaning of Pictograms………………………. Description of Labels on Allied Equipment…. A- Placement of Labels on Allied Equipment.. 2-1 Location of Serial Number…….……….…. 2-2 Equipment Identification Tag………….…. 4-1 Familiarization of Main Components..…. 5-1 Allied Conversion Kit….………………..…..
-
Page 11: Introduction & Scope
See Inside Cover for future reference. Product Name: Skid-Pac Replacement manuals can be ordered by contacting Generation (Series) your local Allied dealer or Allied Customer Support. See inside cover for contact information. 1000 Applicable Model[s]: 1000B 1.4 Related Publications Years of Manufacture:... -
Page 12: Product Identification
2.0 Equipment Identification 2.1 Serial Number Location 2.3 Owner’s Record of the Equipment Your local Allied dealer requires the Product Name, Model and Serial Number to better assist you with questions regarding parts, warranty, operation, maintenance, or repair. This information should be copied from the Equipment Identification Tag to the space provided below. -
Page 13: Warranty Protection Summary
Copies of purchase order(s) and invoice(s) recommended applications. for repair parts and service. Use the Allied attachment only if it is in sound The name and signature of the person operating condition. Take prompt action to rectify performing the service, maintenance or repair. -
Page 14: Allied Product Policies
3.3 Allied Product Policies In this manual, Allied recommends the use, applications, maintenance and service consistent with industry practices. Allied assumes no responsibility for the results of actions not recommended in this manual and specifically the results of: Improper installation, set-up, calibration ... -
Page 15: Product Information
Skid-Pac. Refer to the Specifications Table for 200 psi (14 bar). operating specifications and carrier requirements. Contact your dealer or Allied if you have any Anti-cavitation circuit - Controls deceleration of questions regarding the installation of this equipment. -
Page 16: Selection And Application Guide
Balance the size of the Allied work tool to the size of the carrier. If too Generally, most machines will require some degree small for the carrier, the work tool can be damaged of conversion to make use of their hydraulic power. -
Page 17: Mounting Information
Allied Construction Products, LLC www.alliedcp.com 6.0 Mounting Information 6.1 Mounting the Skid-Pac The Allied Skid-Pac is a vibratory plate compactor, designed for mounting on skid-steer tired or track- type vehicles. Designed specifically for use with skid- steers, installation of the Skid-Pac requires no additional mounting or hydraulic kits. -
Page 18: Install & Removal From Carrier
Carrier operation. No special tools are required, but the following tools 3. Operator: Maneuver the coupler up to the Allied should be available: work tool bracket. Align the lock pins with the holes in mounting frame and secure latch ... -
Page 19: Removal From Carrier
T2. The supply hose is tagged with a red colored record test results, are found in the Technical Data cable tie marked ‘PRESSURE’. section of this manual. Questions regarding test results or procedures should be directed to Allied Technical Service. 7.3 Removal of Skid-Pac From Carrier CAUTION Some procedures may require an assistant. -
Page 20: Operation
Allied Construction Products, LLC www.alliedcp.com 8.0 Operation 8.1 Pre-operation Checks CAUTION IMPORTANT Injury from flying debris. Personal Unsatisfactory performance and/or equipment protection equipment, including safety damage may result if operated below or above the eyewear, must be worn when operating accepted specifications. -
Page 21: Refer To Compaction Handbook
180 F (80 can help minimize the rubber from heat-aging. The Allied Skid-Pac combines three actions that are The rate of compaction to a 95% Modified Proctor will highly effective in the compaction of granular type vary due to many factors, including variations in soils: operator technique. -
Page 22: Care And Maintenance
9.1.2 Conditional Maintenance Remove the ignition key, engage interlock and apply parking brake. When properly installed, operated and maintained by qualified personnel, the Allied equipment requires a WARNING minimum of maintenance. Crush injury. Never rely on the rotation Table 9.1 specifies how often and what items need to... -
Page 23: Items To Check At Daily Inspection
Obey all local regulations for the disposal IMPORTANT of these fluids. Do not make alterations to the Skid-Pac without written authorization from the Allied Engineering 9.5 Bearing Lubrication System – 1000B Department. Bearings are lubricated for life and sealed. No regular 9.3 10 Hour (Daily) Maintenance... -
Page 24: Pressure Relief Plug
Allied Construction Products, LLC www.alliedcp.com 9.0 Care & Maintenance - [cont’d] Bearing Lubrication – Type (1000) The Allied Skid-Pac is factory filled with premium quality hydraulic oil ISO VG32 combining non-foam and anti-wear additives. The use of other oils shall be permitted only if they have a minimum viscosity of at least 12 cSt at an operating temperature of 66... -
Page 25: How To Drain Oil
Use standard mechanic’s techniques and tools to 4. Clean and lubricate the eccentric shaft. disassemble and assemble the Skid-Pac. 5. Slip bearing/housing onto shaft. NOTE: Close Questions regarding maintenance, repair or operation tolerance slip fit. can be directed to Allied Technical Service. For TM103349_SP1000B_15sep... -
Page 26: Spring Mount Replacement
Allied Construction Products, LLC www.alliedcp.com 9.0 Care & Maintenance - [cont’d] 6. Repeat steps 1-4 with other bearing and housing. 7. Tighten bolt to proper torque. Refer to Table 9.2. 7. Install the bearings and eccentric in to the eccentric housing. Install bolts. -
Page 27: Hydraulic Motor & Flow Regulator Valve
Allied Construction Products, LLC www.alliedcp.com 9.0 Care & Maintenance - [cont’d] Table 9.2 Standard Tightening Torque Bolts should be systematically tightened starting from the most rigid part of the joint. Bolt head identification markings. SAE Grade and for metric bolts, the Property Class is indicated. -
Page 28: Lifting, Transport & Storage
Allied Construction Products, LLC www.alliedcp.com 10.0 Lifting, Transport & Storage WARNING Seal hydraulic connections to protect against Crush hazard. Injury may result if the contamination Skid-Pac shifts or falls. Do not lift the Skid-Pac by the whip hose. The ... -
Page 29: Troubleshooting
Oil level too high Check oil level. Do not overfill (Model 1000) This Allied work tool is not self-powered and its Use a flow meter to measure oil delivery and to verify performance level will be impaired by a hydraulic the cracking pressure of the relief valve. -
Page 30: Technical Information
A series of tests are conducted under varied conditions, including temperature, work mode, engine The performance of the Allied work tool is impaired speed and load. The results of these tests gives a by a hydraulic system that is not operating correctly good indication of whether or not the carrier can or set outside the accepted specifications. -
Page 31: Oil Pressure Check
Prevent accidental start. Engage (values given in GPM / LPM) necessary for the safe interlock, shut off engine and apply and efficient operation of the Allied work tool. parking brake. Follow all safety and operating instructions provided by the The motor is coupled to the eccentric mass. The carrier manufacturer. -
Page 32: Hydraulic Motor Options
Allied Construction Products, LLC www.alliedcp.com 12.0 Technical Information – [cont'd] Operating Pressure – A measure of the hydraulic oil Static Relief Pressure – Also referred to as “Full pressure (values given in PSI / BAR) taken in the Relief Pressure”. The pressure measured at the attachment’s supply line during operation. -
Page 33: Motor / Valve Combination
Fig. 12-4 Connections At Valve & Motor Identified 4. Return line check valve - Prevents reverse flow to the hydraulic motor. Also provides a nominal back-pressure to ensure the proper operation of priority flow control valves, such as Allied’s AC40 and AC75. TM103349_SP1000B_15sep... -
Page 34: Technical Data - General Specifications
Allied Construction Products, LLC www.alliedcp.com 12.0 Technical Information 12.8 Technical Data Table 12.1 General Specifications – Skid-Pac 1000 and 1000B Impulse Force 8,000 [35,586] Lbs [N] Cycles Per Minute 2000 1/min 12 [45] Motor Oil Flow 18 [68] Option [lpm]... -
Page 35: Dimension Diagrams
As previously stated, there are three motor options available. For each motor there is a matching control valve. Fig. 12-5 Side View of Motor - Measure Body “L” Fig. 12-6 Skid-Pac 1000 & 1000B General Dimensions TM103349_SP1000B_15sep... -
Page 36: Parts Information
Allied Construction Products, LLC www.alliedcp.com 13.1 Spare Parts Skid-Pac 1000 Fig. 13-1 Assembly Parts For Skid-Pac 1000 Table 13.1 For use with Skid-Pac model 1000. Item Description Part No. Remarks / Specifications Skid-Pac 1000 571430 Standard Assembly Dynamic Assembly - 1000... -
Page 37: Skid Pac 1000 Dynamic Assembly
Allied Construction Products, LLC www.alliedcp.com 13.1 Spare Parts Skid-Pac 1000 [cont’d] Fig 13-2 Dynamic Assembly Parts for Skid-Pac 1000 Table 13.2 For use with Skid-Pac model 1000 Item Description Part No. Remarks / Specifications Dynamic Assembly - 1000 571428 Includes items 1-15... -
Page 38: Skid-Pac 1000B Parts Identification
Allied Construction Products, LLC www.alliedcp.com 13.2 Spare Parts Skid-Pac 1000B Fig. 13-3 Assembly Parts for Skid-Pac 1000B Table 13.3 For use with Skid-Pac model 1000B Item Description Part No. Remarks / Specifications Skid-Pac 1000B 573790 Standard Assembly Dynamic Assembly 573791... -
Page 39: Skid-Pac 1000B Dynamic Assembly
Allied Construction Products, LLC www.alliedcp.com 13.2 Spare Parts Skid-Pac 1000B [cont’d] Fig. 13-4 Dynamic Assembly Parts for Skid-Pac 1000B Table 13.4 For use with Skid-Pac model 1000B Item Description Part No. Remarks / Specifications Dynamic Assembly 573791 Eccentric Frame with Plate... -
Page 40: Motor And Valve Parts Identification
[114] 4-3/4 21 [79] 102867 (103305) 102652 A103008 [121] *Package includes one (1x) Motor and one (1x) Flow Regulator Valve. **Seal kit for motor. The flow regulator valve has no user-serviceable parts. Contact Allied Technical Service for further information. TM103349_SP1000B_15sep... - Page 41 Part number(s) Quantity NOTE: Check that the model number of your Allied equipment corresponds to the model information described in Sections 1 and 2 of this manual. 13.2 Scope of This Manual Figures illustrate and describe the various parts used in the assembly of the model identified in Section 1 of this manual.
- Page 42 13.5 Spare Parts Order Form Your local Allied dealer requires the Product Name, Product Skid-Pac Model and Serial Number to better assist you with questions regarding parts, warranty, operation, Model 1000 1000B maintenance, or repair. This information should be noted in Section 2.3 of this manual.
- Page 43 Notes: TM103349_SP1000B_15sep...
- Page 44 TM103349_SP1000B_15sep...
