Do you have a question about the HM 200 and is the answer not in the manual?
Questions and answers
Lee
February 19, 2025

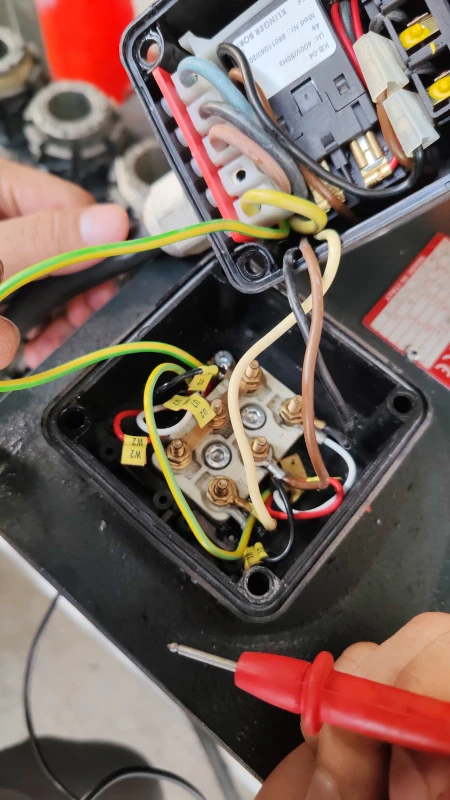

Motor circuit digram
1 comments:
Mr. Anderson
February 19, 2025
The motor circuit diagram for the Uniflex HM 200 is referred to as the "Elektroplan (Steuerteil) / Electric Circuit Diagram (Control Part)" on page 34 and the "Elektroplan (Leistungsteil) / Electric Circuit Diagram (Power Section)" on page 35 of the manual.
This answer is automatically generated
Subscribe to Our Youtube Channel
Summary of Contents for Uniflex HM 200
Page 1

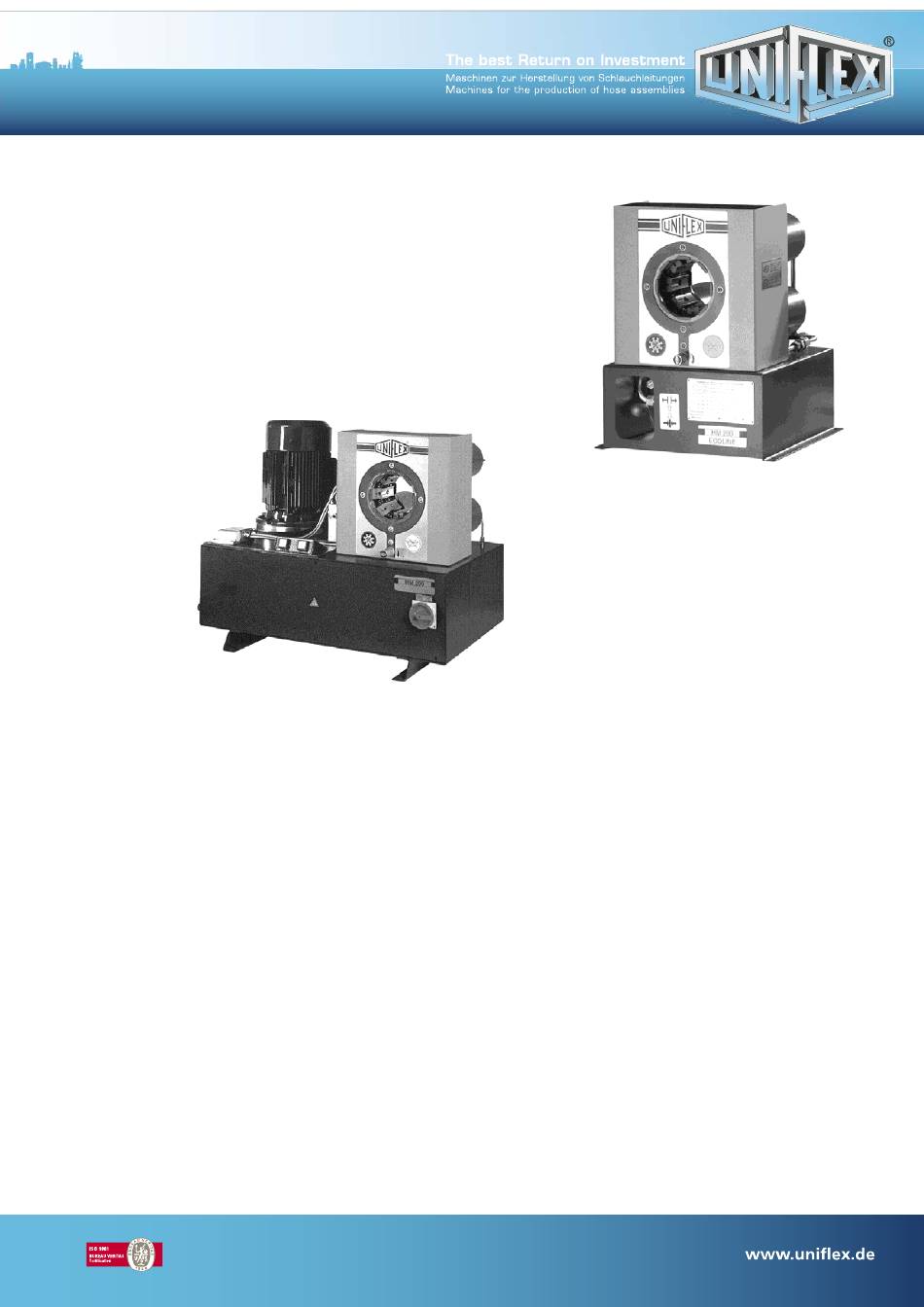

OPERATING MANUAL - HM 200 - HM 200 Ecoline - HM 200 Ecoline DC - HM 250 - HM 260 Technical Details subject to change Copying and distributing this document and the use or communication of the contents thereof are forbidden without expressed authority.
CE-Declaration of Conformity within the meaning of Directive Machines 2006/42/EC. The following machine HM 200 / HM 200 Ecoline / HM 200 Ecoline DC HM 250 HM 260 was developed, designed and manufactured in accordance with Directive 2006/42/EC under the sole responsibility...
Introduction General information regarding the operating instructions This operating manual forms part of the scope of delivery of your UNIFLEX machine and it is intended for the user and maintenance / service staff. The manual describes how the hose crimper works, provides information on hazards that may arise during its operation, contains detailed information on how to operate the machine, and describes the steps necessary for servicing and checking the accuracy of the hose crimper.
Obligations of the personnel All persons authorized to work with this Uniflex machine are obliged to observe the basic regulations on work safety and accident prevention and read the operating manual. Hazards when operating the machine This machine has been constructed according to state-of-the-art engineering and acknowledged safety regulations.
Usage to the intended purpose This UNIFLEX machine is designed only for crimping hose assemblies. Any other usage or any usage exceeding the tasks described above shall not be considered usage to the intended purpose. Operating the machine in a potentially explosive atmosphere is prohibited.
The machine may not be modified and no parts may be built on or modified without the manufacturer’s approval. Any modifications need to be confirmed in writing by UNIFLEX-Hydraulik GmbH. Any parts that are not in perfect working order should be replaced immediately. Only original spare parts and wearing parts should be used. It cannot be guaranteed that other parts are designed and manufactured in such a way that they will meet the load and safety requirements.
Warning: Switch off the machine using the main switch during all maintenance and setting works! Danger: When the machine is handled improperly, there is the danger of hands getting caught and crushed! UNIFLEX-Hydraulik - 9 - www.uniflex.de...
Chapter 3 Description of the system Design HM 200 Ecoline / HM 200 Ecoline DC HM 2.. HM 2.. B HM 2.. E 1 Crimp tool 3 Hydraulic-oil tank 2 Control 4 Main Switch Warning: Always keep a safety distance of at least 120 mm to the crimp tool if the machine is switched on.
For optimal operation of the machine the surrounding temperature has to be between 10°C and 35°C. Unpacking / set up The UNIFLEX machine was tested prior to delivery and is delivered ready for operation. How to prevent damage when unpacking: ...
Motor power max. 3 KW, Pump delivery rate 9 l /min 280 bar max. pressure. Warning: For security reasons the HM 200 Ecoline DC is restricted to 280 bar pressure internally. Connect the plug of the hydraulic power unit as shown on the pictures to the socket in the rear of the machine.
If the motor does not rotate in the direction indicated by the arrow, two phases must be switched as shown: Attention: The motor will be damaged if it rotates in the wrong direction for some time. UNIFLEX-Hydraulik - 14 - www.uniflex.de...
If the motor does not rotate in the right direction, two phases must be switched as shown: Attention: The motor will be damaged if it rotates in the wrong direction for some time. UNIFLEX-Hydraulik - 15 - www.uniflex.de...
To disrupt the battery there needs to be a main switch in the working area of the hose crimper! Warning: The hydraulic power unit is not fit for permanent operation. The maximum on-time is 30 crimp processes per hour. UNIFLEX-Hydraulik - 16 - www.uniflex.de...
To take out the crimp dies do the above in reverse order. Attention: Holding pins or crimp dies will be damaged if they do not slide in the bore holes of the base or intermediate dies. UNIFLEX-Hydraulik - 17 - www.uniflex.de...
XX,XX mm - mm = ZZ,ZZ mm 19,20 mm – 19,00 mm = 0,20 mm Attention: Always insert 8 equal crimp dies with equal marking! And respectively 7 crimp dies and one corresponding embossing crimp dies! UNIFLEX-Hydraulik - 18 - www.uniflex.de...
Always insert a full set of equal crimp dies with equal marking and diameter! Control of the hose crimper For operating the UNIMATIControl B-Plus please refer to Operating Manual Control. HM 200 HM 200 Ecoline UNIFLEX-Hydraulik - 19 - www.uniflex.de...
When a hose is replaced, care must be taken that the new one is of the same quality. The hose assembly must be replaced at least within six years of the production date (see marking). UNIFLEX-Hydraulik - 20 - www.uniflex.de...
Remove the screws on the cover or front plate and take it off. Loosen the counternut of the contact screw. 2,5 rotations of the contact screw are equal to 1 mm change in the crimp value. Counternut Contactscrew UNIFLEX-Hydraulik - 21 - www.uniflex.de...
The insertion happens screw driver. the other way around. Important: If there are balancing plates underneath the slide bearings, they must be replaced to their original position. UNIFLEX-Hydraulik - 22 - www.uniflex.de...
Seriennummer / Serial-Number / Le numéro de série / Número de serie Baujahr / Year of production / L’année de construction / Año de construcción Spannung / Voltage / La tension de service / Voltaje UNIFLEX-Hydraulik - 31 - www.uniflex.de...
HM 200 Ecoline Elektroplan für Unteröl-Aggregat PUU 45L 3.0_04/ Electric Circuit Diagram for Aggregate under oil PUU 45L 3.0_04 (440V-60Hz-3~) UNIFLEX-Hydraulik - 33 - www.uniflex.de...
I also declare that I have read and understood this operating manual in full. Par la présente, je déclare avoir suivi une formation dans l’entreprise pour m’initier à l’utilisation de la machine UNIFLEX et avoir été informé de tous les détails liés à la sécurité.
