SSANGYONG RODIUS 2007.07 Manual page 183

0-10
8710-01

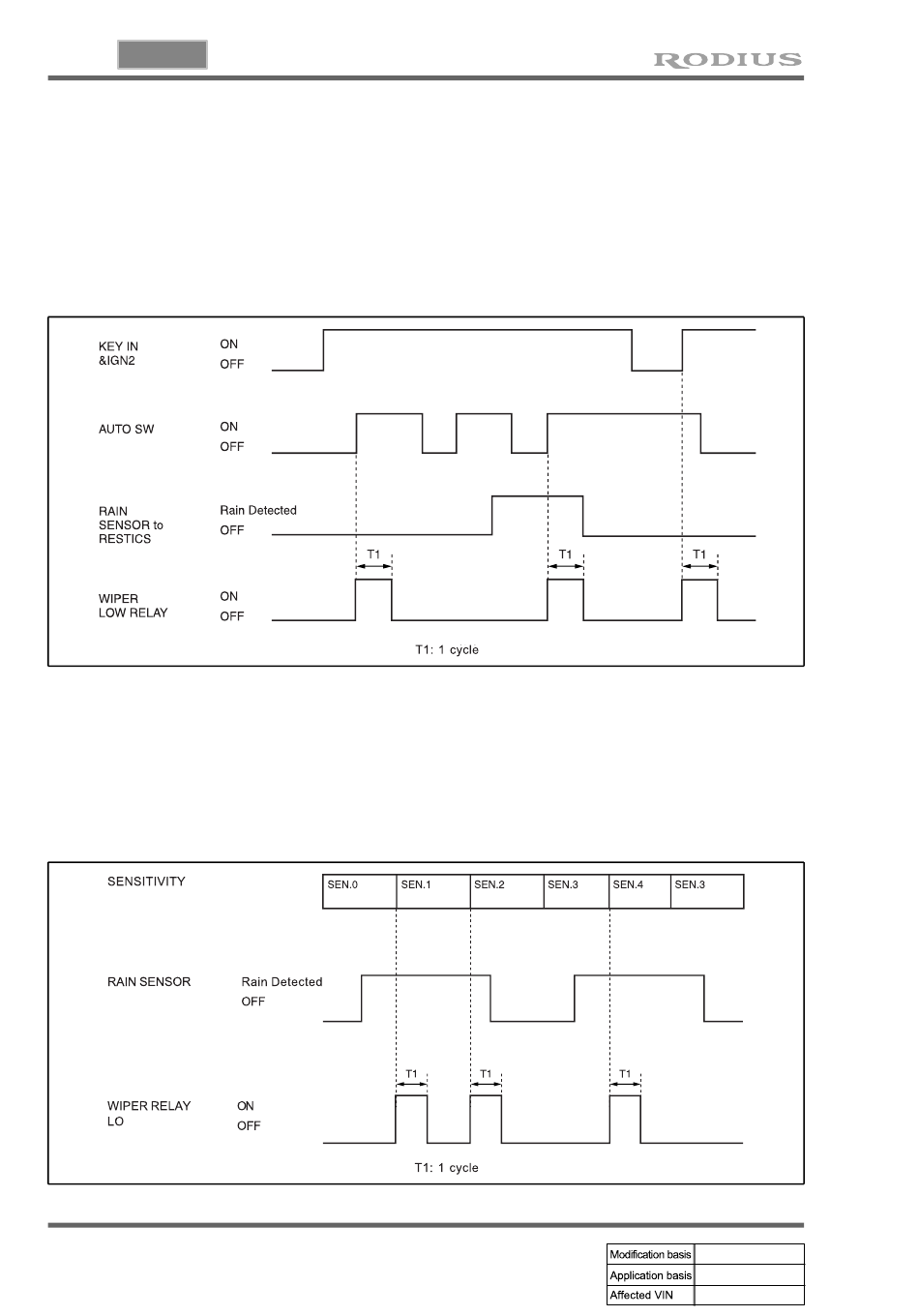

▶ Rain sensing operation point
1) The wiper relay is turned on and the wiper motor runs one cycle when the ignition key is
turned to "ON" position (while the wiper switch is in "AUTO" position).
2) The wiper relay (LO) is turned on and the wiper motor runs one cycle when changing the
wiper switch to "AUTO" position from any other positions (while the ignition key is in
"ON" position). When the wiper switch is turned to "AUTO" position again from other
positions, the system drives the wiper relay (LO) to run the wiper motor one cycle only when
the rain sensor detects the "Rain
▶ Rain sensing sensitivity control
The wiper relay is turned on and the wiper motor runs one cycle when the volume sensitivity is
increased (ex: from 0 to 1) (while the ignition key is in "ON"
in "AUTO" position, and the wiper motor is in "Parked" position). However, the wiper
motor can be operated only when the rain sensor detects the "Rain
* If the volume sensitivity is changed more than 2 stages within 2 seconds, the wiper motor runs
only one cycle.
STICS
RODIUS 2007.07
Detected" signal.
position, the wiper switch is
Detected" signal.
