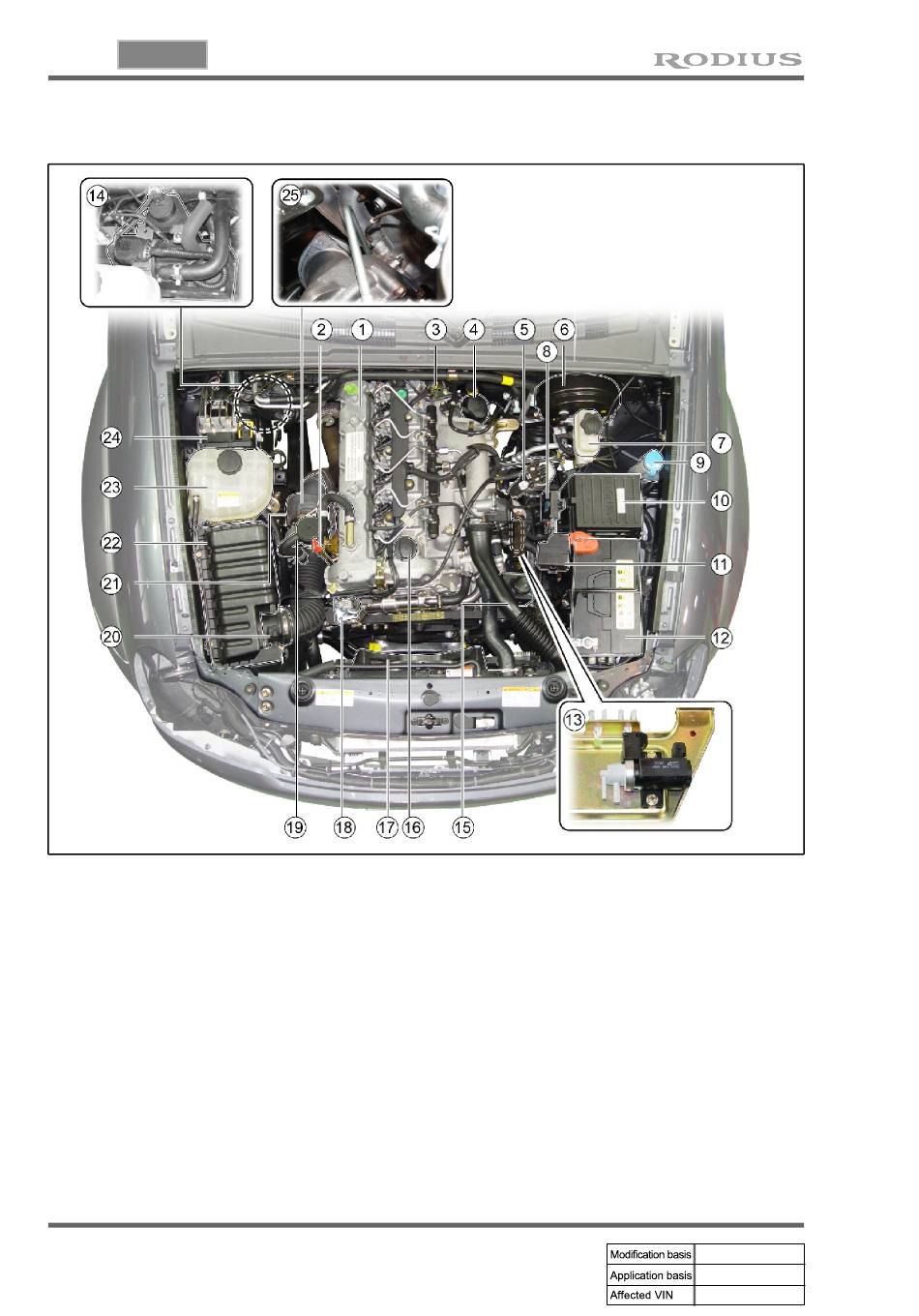

▶Engine Compartment Layout
1. Engine assembly
2. Engine oil dipstick
3. Vacuum pump
4. Oil filter and cooler
5. Fuel filter and priming pump
6. Brake booster
7. Brake oil tank
8. AQGS unit
9. Washer fluid filler cap
10. Engine compartment fuse box
11. PTC relay box
12. Battery
13. Vacuum modulator (for VGT turbo charger)
ENGINE GENERAL
RODIUS 2007.07
14. FFH Assembly (Only for vehicle with FFH)
15. Power steering oil tank
16. Engine oil filler cap
17. Fan shroud
18. E-EGR Valve
19. High-capacity PCV oil separator
20. HFM sensor (6.0)
21. VGT turbo charger
22. Air cleaner housing
23. 2Coolant surge tank
24. ABS/ESP HECU (Including TPMS function:
optional)
25. Exhaust gas FRT Temp. sensor (T3)
