SSANGYONG RODIUS 2007.07 Manual page 146

0-3
0000-00
2321-01
ENGINE INTAKE SYSTEM

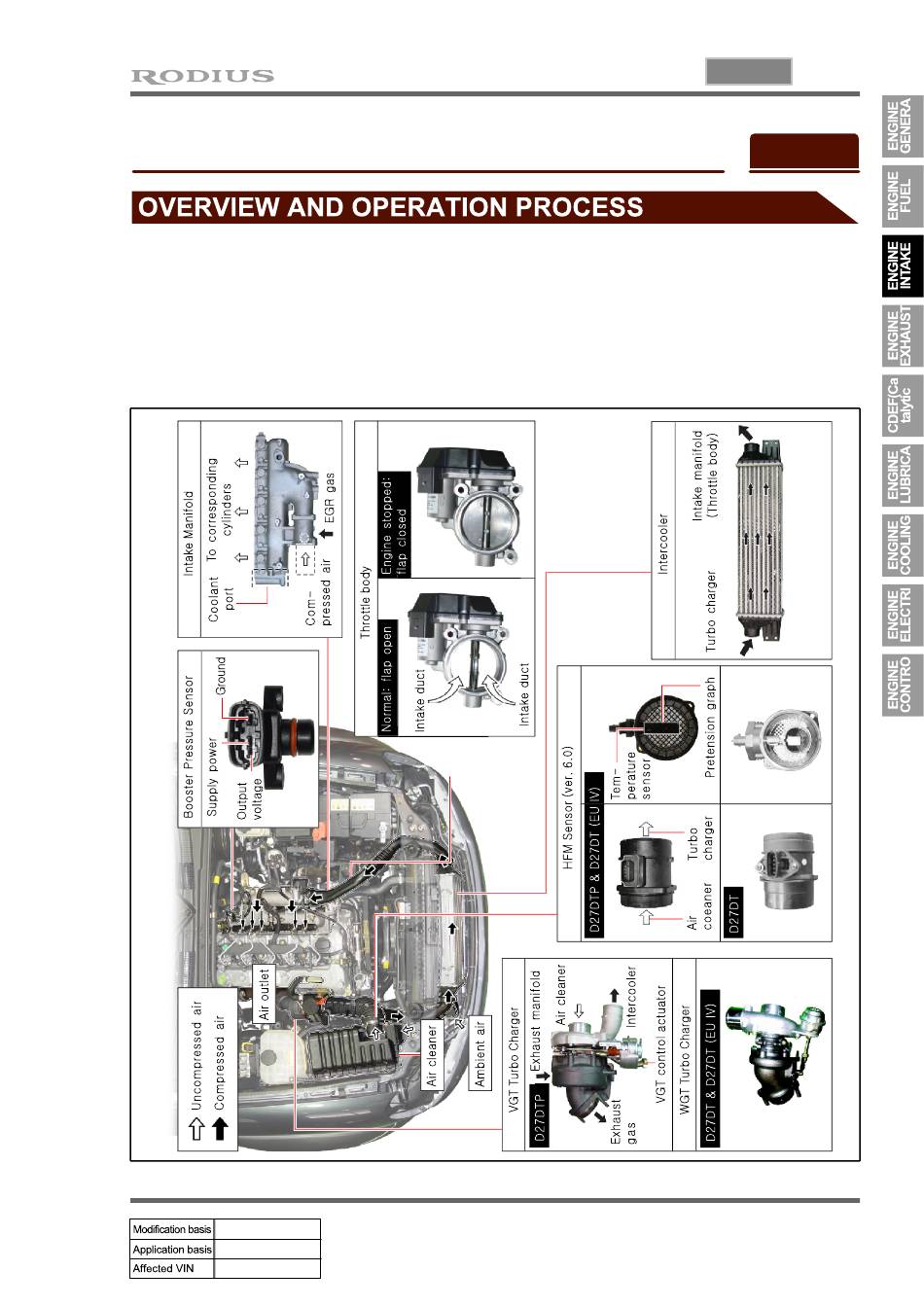

1. INTAKE SYSTEM LAYOUT
The intake system for the D27DTP (POWER UP) engine is equipped with the throttle body that
has a flap to block the air coming to the engine when the engine is switched off. Therefore, the
structure of the intake manifold has been changed.
Also, the improved HFM sensor (from HFM5.0 to HFM6.0) has been installed to control the
intake air precisely so that the NOx in the exhaust gas can be decreased.
ENGINE INTAKE SYSTEM
RODIUS 2007.07
