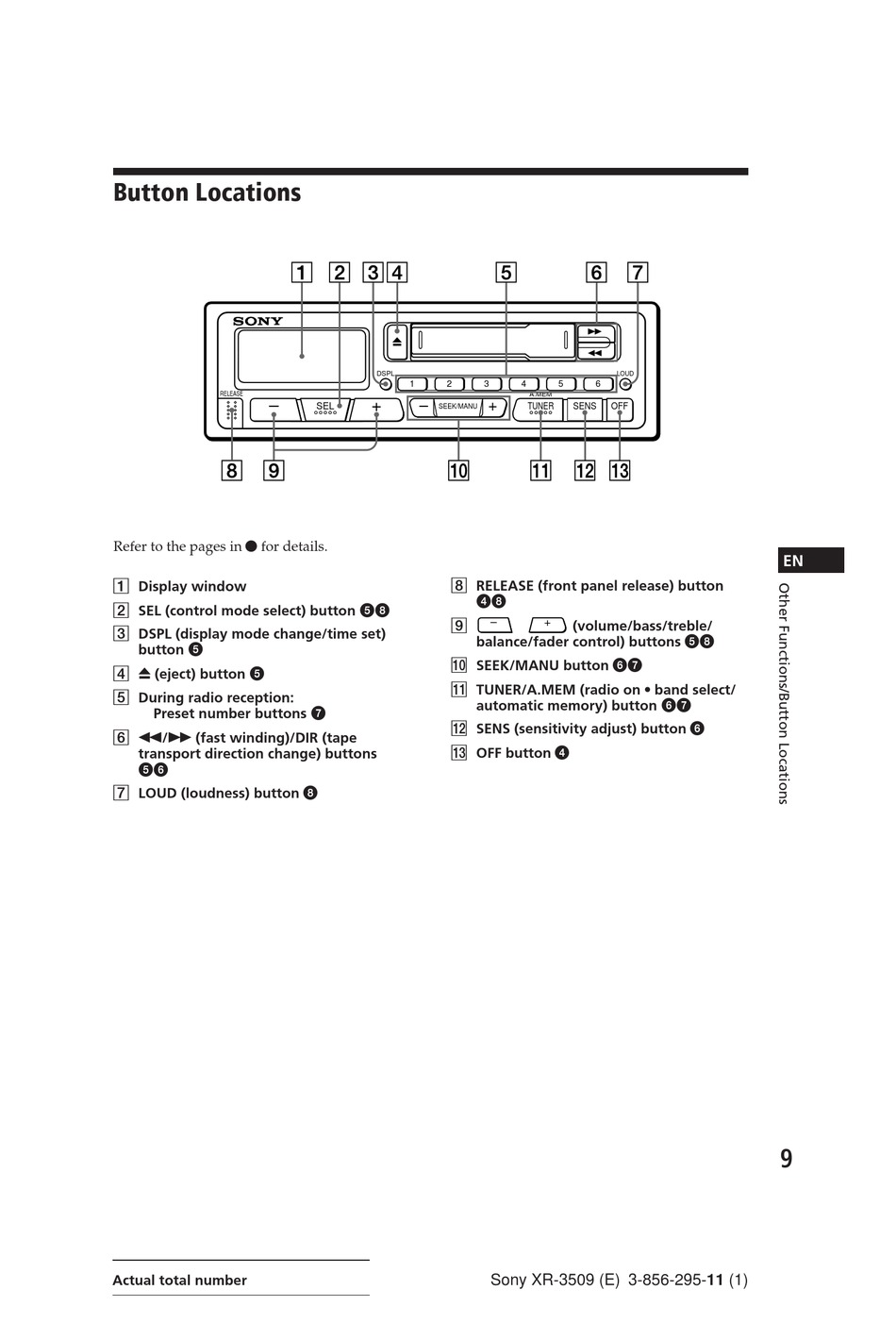

Button Locations

RELEASE
Refer to the pages in r for details.
1 Display window
2 SEL (control mode select) button 58
3 DSPL (display mode change/time set)
button 5
4 6 (eject) button 5
5 During radio reception:
Preset number buttons 7
6 0/) (fast winding)/DIR (tape
transport direction change) buttons
56
7 LOUD (loudness) button 8
Actual total number
DSPL
1
2
3
+
SEL
SEEK/MANU
8 RELEASE (front panel release) button
48
9
balance/fader control) buttons 58
0 SEEK/MANU button 67
!¡ TUNER/A.MEM (radio on band select/
automatic memory) button 67
!™ SENS (sensitivity adjust) button 6
!£ OFF button 4
LOUD
4
5
6
A.MEM
+
TUNER
SENS
OFF
+
(volume/bass/treble/
