Summary of Contents for Stanley SXPG42603

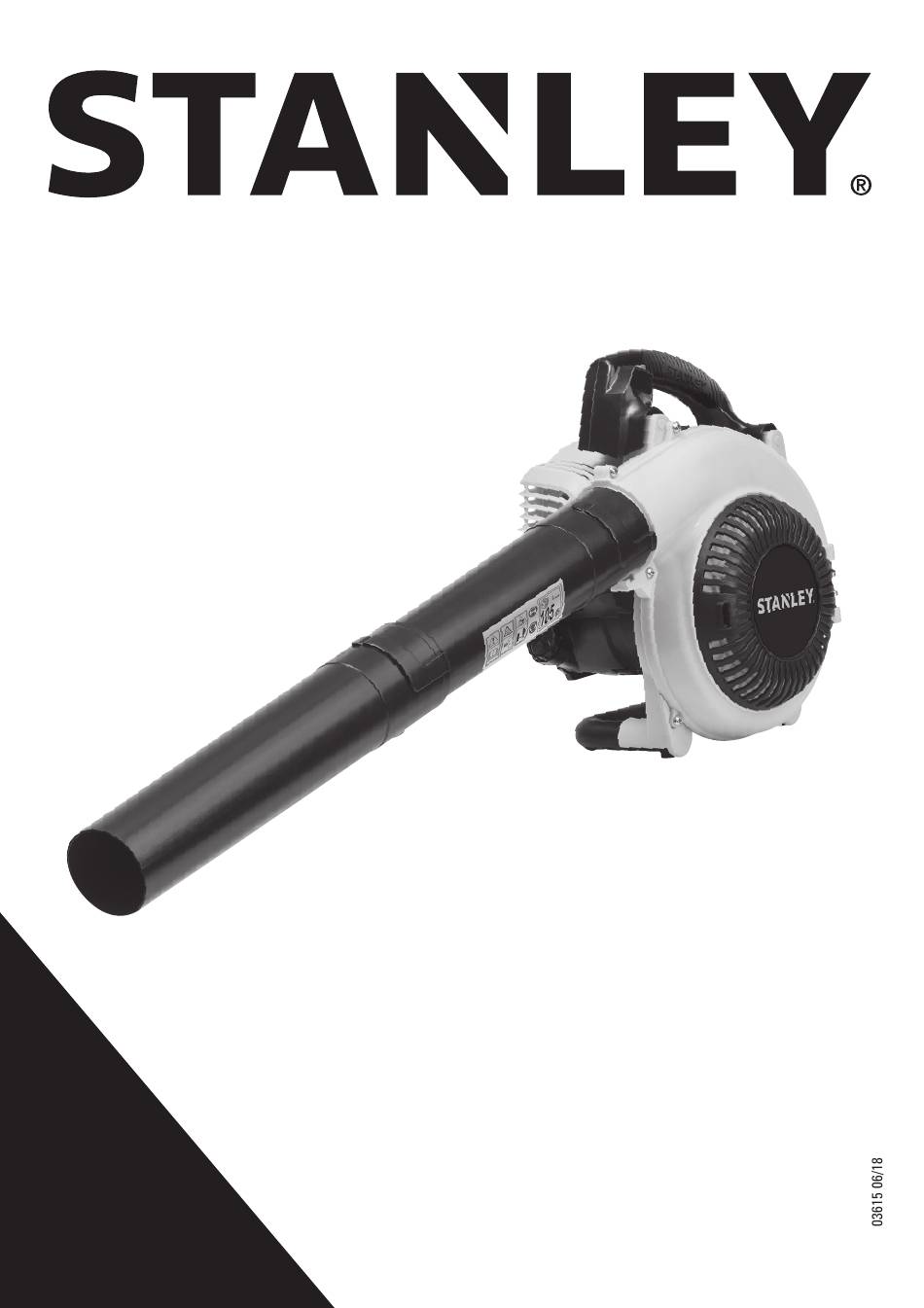

- Page 1 PETROL BLOWER 4 STROKE 26CC For service, spare parts or product information, please contact Smart Marketing Group Pty. Ltd. MODEL NO. AUST. 1300 660 457 N.Z. 0800 474 876 SXPG42603 www.stanleyproducts.com.au...
-
Page 2: Table Of Contents
CONTENTS Section Page Section Page Contents Unpacking Suggested Applications Assembly 2 Years Warranty / Serial Number Operation 12 - 14 Specifications Maintenance 14 -16 Introduction Trouble Shooting Express Warranty Statement Service Log Complete Warranty Statement Notes Important Safety Instructions 7 - 9 Contact Information Description &... -
Page 3: Suggested Applications
SUGGESTED APPLICATIONS These are some suggested articles which could be used by this Blower: • Driveways • Paths and walkways • Patios • Trees 2 YEARS WARRANTY YEARS WARRANTY Please take note of serial number and write here for ease of PLEASE CONTACT CUSTOMER SERVICE reference: Serial Number:... -
Page 4: Specifications
4 STROKE PETROL BLOWER Your new petrol blower has been engineered and manufactured to STANLEY’s high standard of dependability, ease of operation and operator safety. Properly cared for, it will give you years of rugged, trouble free performance. If you use your petrol blower properly and only for what it is intended, you will enjoy years of safe, reliable service. -
Page 5: Introduction
INTRODUCTION CUSTOMER SERVICE Dear Customer, Thank you for purchasing this Blower which has passed through Australia: 1300 660 457 our extensive quality assurance processes. Every care has New Zealand: 0800 474 876 been taken to ensure that it reaches you in perfect condition. However, in the unlikely event that you should experience a Operating times: Monday –... -
Page 6: Complete Warranty Statement
COMPLETE WARRANTY STATEMENT - PETROL BLOWER As soon as you have purchased the Blower, we recommend costs associated with the service will be charged to the owner. that you check to make sure it is intact and that you read the Blockages caused by spider webs, insects, dirt, accumulated operating instructions carefully before using it. -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SPECIFIC SAFETY INSTRUCTIONS The purpose of safety rules is to attract your attention to possible dangers. The safety symbols and the explanations Read the instructions with due care. Familiarise yourself with with them, require your careful attention and understanding. the settings and proper operation of the machine. - Page 8 IMPORTANT SAFETY INSTRUCTIONS Never start or run the product inside a closed room or Always install the blower tubes. building. Fumes from the exhaust contain dangerous carbon Never use blower near fires, fireplaces, hot ashes, barbecue monoxide. pits, etc., which may cause fire to spread. Never attempt to make engine adjustments while the unit Do not point the blower nozzle in the direction of people or is running.
- Page 9 IMPORTANT SAFETY INSTRUCTIONS RESIDUAL RISKS Before proceeding to adjust or repair the unit, be sure to stop the engine and detach the spark plug. Even when the unit is used as prescribed it is not possible to When the machine is placed in storage for a long time, drain eliminate all residual risk factors.
-
Page 10: Description & Components
DESCRIPTION For information regarding spare parts, please refer to contact details on the front of this manual 9. Muffler 1. Fuel tank cap 10. Spark plug 2. Primer button 11. Oil tank cap 3. Choke lever 12. Starter handle 4. Air filter 5. -
Page 11: Unpacking
UNPACKING CAUTION. If any parts are found to be missing, please contact customer service (details on page 5). Do not throw the packaging away, This packaging contains sharp objects. Take care when keep it safe throughout the warranty period, then recycle if unpacking. -
Page 12: Operation
OPERATION WARNING. Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING. Always wear eye protection with side shields marked to comply with Australian Standards, along with hearing protection. - Page 13 OPERATION NOTE: Visually inspect to see if fuel level is low. If fuel is low, NOTE: The choke lever is only used when starting a cold engine. refill with unleaded fuel carefully without overfilling and tighten Never move the choke lever to the right position once the the fuel tank cap immediately.
-
Page 14: Maintenance
OPERATION ENGAGE AIR BLOWING Conserve water by using power blowers instead of hoses for many lawn and garden applications including areas such as Air blowing will be engaged if the operator presses the throttle gutters, screens, patios, grills, porches, and gardens. trigger to increase the engine speed. - Page 15 MAINTENANCE ITEM HOURS OF OPERATION Engine lubricant oil level Every time before use Loosened or lost screws Every time before use Damage of any part Every time before use Function of control elements Every time before use Fuel level Every time before use Leakage of oil or fuel Every time before use Engine oil replacement...
- Page 16 MAINTENANCE CLEANING THE AIR FILTER The air filter elements should be cleaned to provide the engine abundant clean air which benefits the starting, power and life time of the engine. To clean or replace the air filter, press the release button on the air filter housing, Fig.5 (1), remove the cover (2) and take out the air filter cartridge, Fig.6.
-
Page 17: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Check spark. Remove spark plug. Reattach the spark plug cap and lay spark plug on metal cylinder. Pull the starter rope No spark and watch for spark at spark plug tip. If there is no spark, repeat test with a new spark plug. -
Page 18: Service Log
This Service is to be complete within 20 hours or This Service is to be complete within 40 hours or 3 months of purchase, which ever comes first. 6 months of purchase, which ever comes first. Replace Replace Replace Replace Air filter Spark plug Air filter... -
Page 19: Notes
NOTES... -
Page 20: Contact Information
For any queries or assistance call Customer Service AUST. 1300 660 457 NZ 0800 474 876 www.stanleyproducts.com.au Hours of operation: Monday to Friday 8.00am - 5.00pm AEST Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 2 year warranty.
