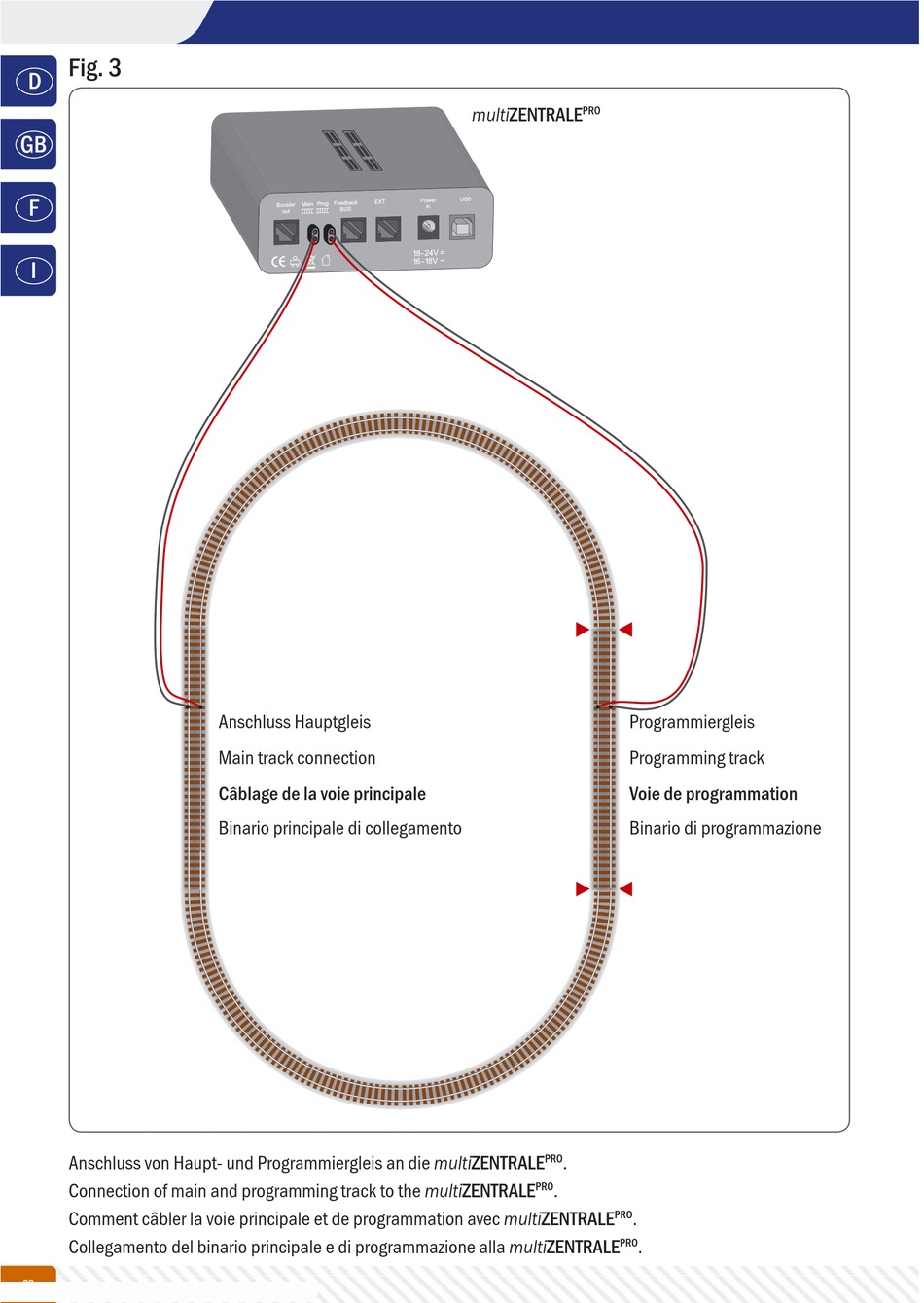

Fig. 3
�
��
�
�
Anschluss von Haupt- und Programmiergleis an die multiZENTRALE
Connection of main and programming track to the multiZENTRALE
Comment câbler la voie principale et de programmation avec multiZENTRALE
Collegamento del binario principale e di programmazione alla multiZENTRALE
90
Anschluss Hauptgleis
Main track connection
Câblage de la voie principale
Binario principale di collegamento
multiZENTRALE
PRO
Programmiergleis
Programming track
Voie de programmation
Binario di programmazione
.
PRO
.
PRO
.
PRO
.
PRO
