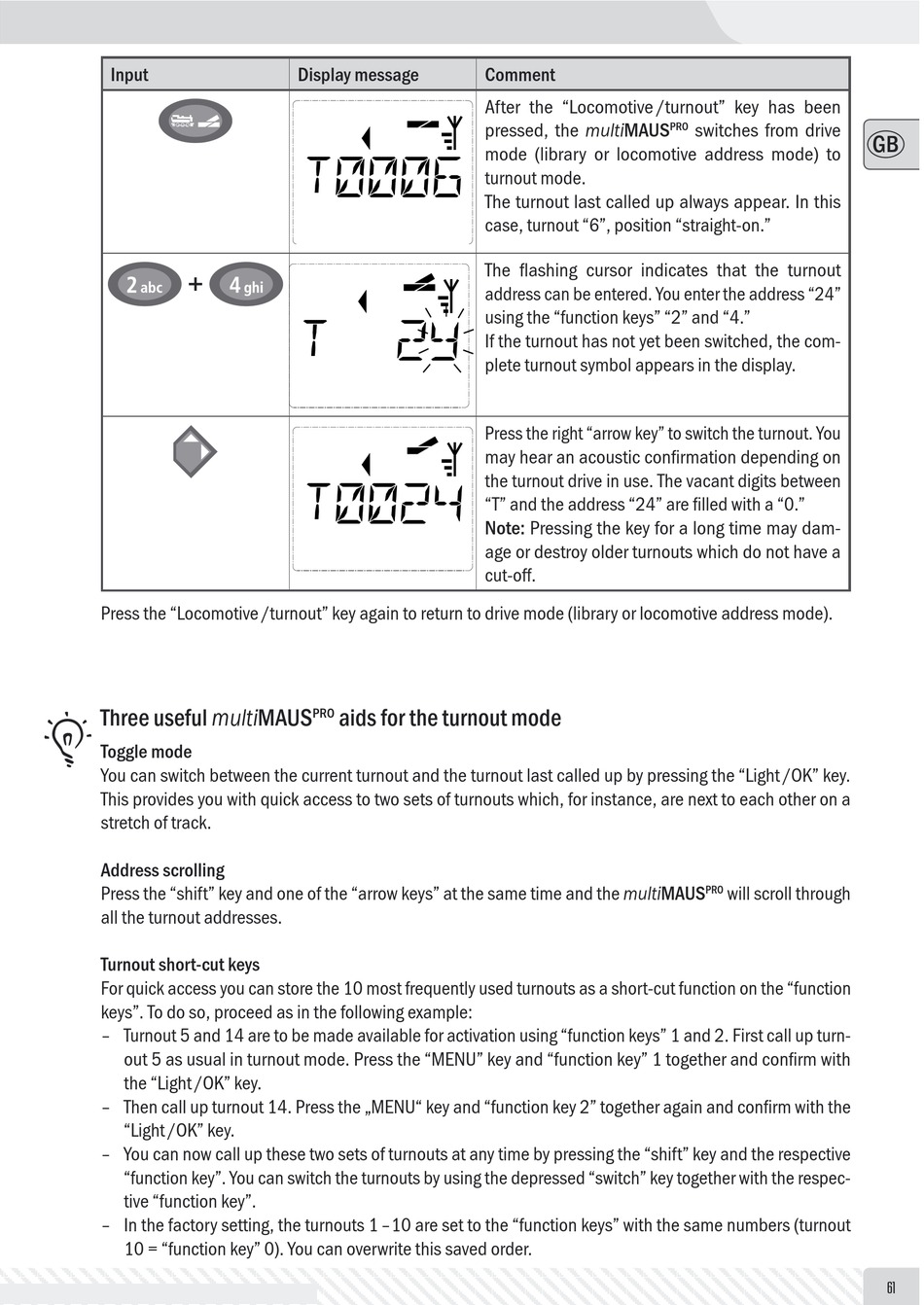

roco multiMAUSPRO Getting Started page 16

Input
Press the "Locomotive /turnout" key again to return to drive mode (library or locomotive address mode).
Three useful multiMAUS
Toggle mode
You can switch between the current turnout and the turnout last called up by pressing the "Light /OK" key.
This provides you with quick access to two sets of turnouts which, for instance, are next to each other on a
stretch of track.
Address scrolling
Press the "shift" key and one of the "arrow keys" at the same time and the multiMAUS
all the turnout addresses.
Turnout short-cut keys
For quick access you can store the 10 most frequently used turnouts as a short-cut function on the "function
keys". To do so, proceed as in the following example:
– Turnout 5 and 14 are to be made available for activation using "function keys" 1 and 2. First call up turn-
out 5 as usual in turnout mode. Press the "MENU" key and "function key" 1 together and confirm with
the "Light /OK" key.
– Then call up turnout 14. Press the „MENU" key and "function key 2" together again and confirm with the
"Light /OK" key.
– You can now call up these two sets of turnouts at any time by pressing the "shift" key and the respective
"function key". You can switch the turnouts by using the depressed "switch" key together with the respec-
tive "function key".
– In the factory setting, the turnouts 1 –10 are set to the "function keys" with the same numbers (turnout
10 = "function key" 0). You can overwrite this saved order.
Display message
aids for the turnout mode
PRO
Comment
After the "Locomotive /turnout" key has been
pressed, the multiMAUS
mode (library or locomotive address mode) to
turnout mode.
The turnout last called up always appear. In this
case, turnout "6", position "straight-on."
The flashing cursor indicates that the turnout
address can be entered. You enter the address "24"
using the "function keys" "2" and "4."
If the turnout has not yet been switched, the com-
plete turnout symbol appears in the display.
Press the right "arrow key" to switch the turnout. You
may hear an acoustic confirmation depending on
the turnout drive in use. The vacant digits between
"T" and the address "24" are filled with a "0."
Note: Pressing the key for a long time may dam-
age or destroy older turnouts which do not have a
cut-off.
switches from drive
PRO
will scroll through
PRO
��
61
