Calibration/verification of the Braun
ThermoScan device
A Welch Allyn authorized service center must perform individual module calibration and verification
activities.
NOTE: The tests are product specific.
Welch Allyn service test equipment and training is available. Contact Welch Allyn Customer
Service for information.
Braun ThermoScan display and error codes

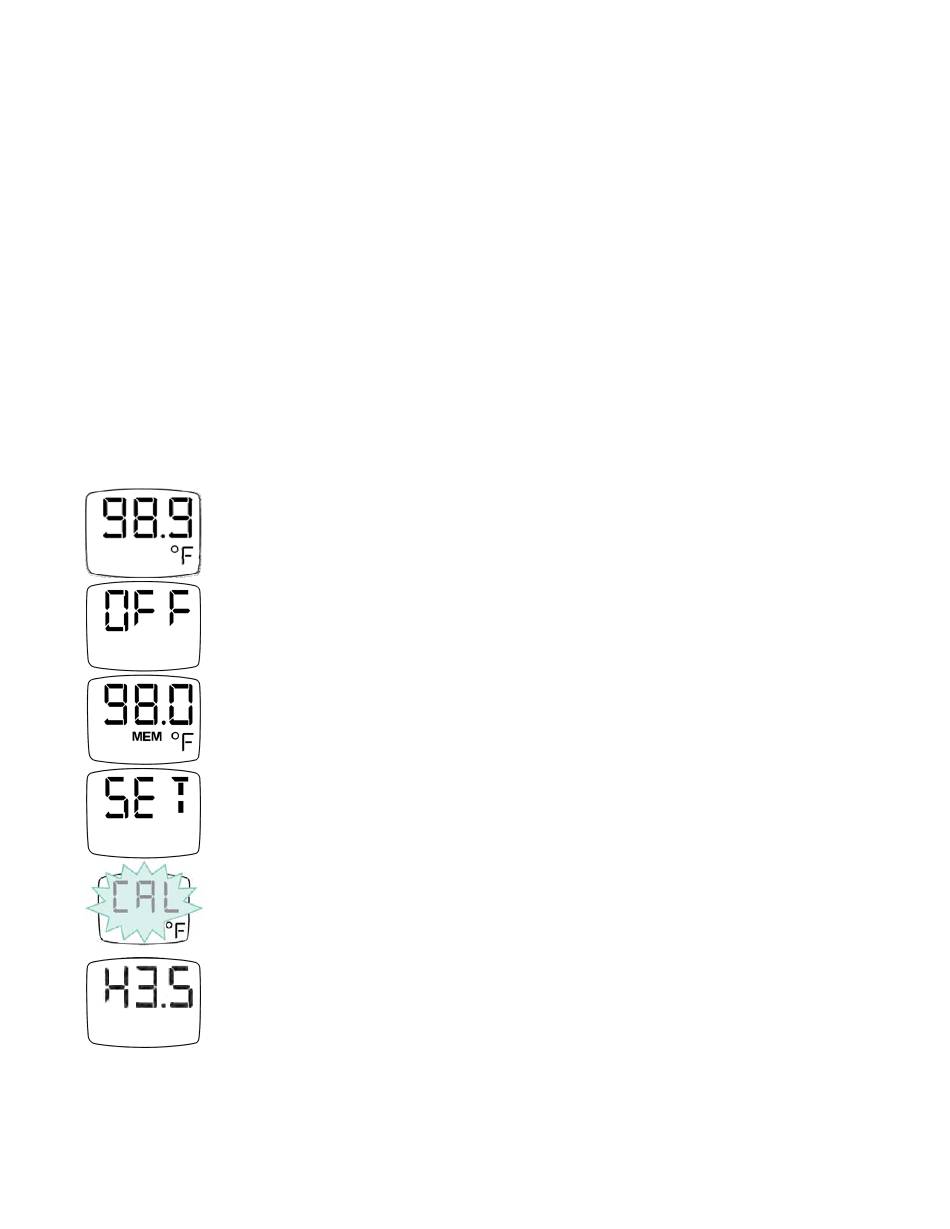

Display
Definition/Description
Display indicates normal operation
after reading is taken.
Display indicates normal operation
after device is turned off.
Display indicates reading stored in
memory.
Setting used to change the default
temperature scale.
Calibration mode.
Setting displays hours remaining
before anti-theft function of the device
is enabled and device is locked.
Anti-theft function of the device is
enabled; device is locked.
file://C:\Documents and Settings\grahamw1\Local Settings\Temp\~hhD427.htm
Required action
None.
None.
Turn device on.
None.
See manufacturer's instruction
guide.
See manufacturer's instruction
guide.
See manufacturer's instruction
guide.
None.
See manufacturer's instruction
guide.
Return device to station for
unlocking.
See manufacturer's instruction
Page 1 of 5
9/28/2010
