Braun ThermoScan 6 (IRT 6515) Manual

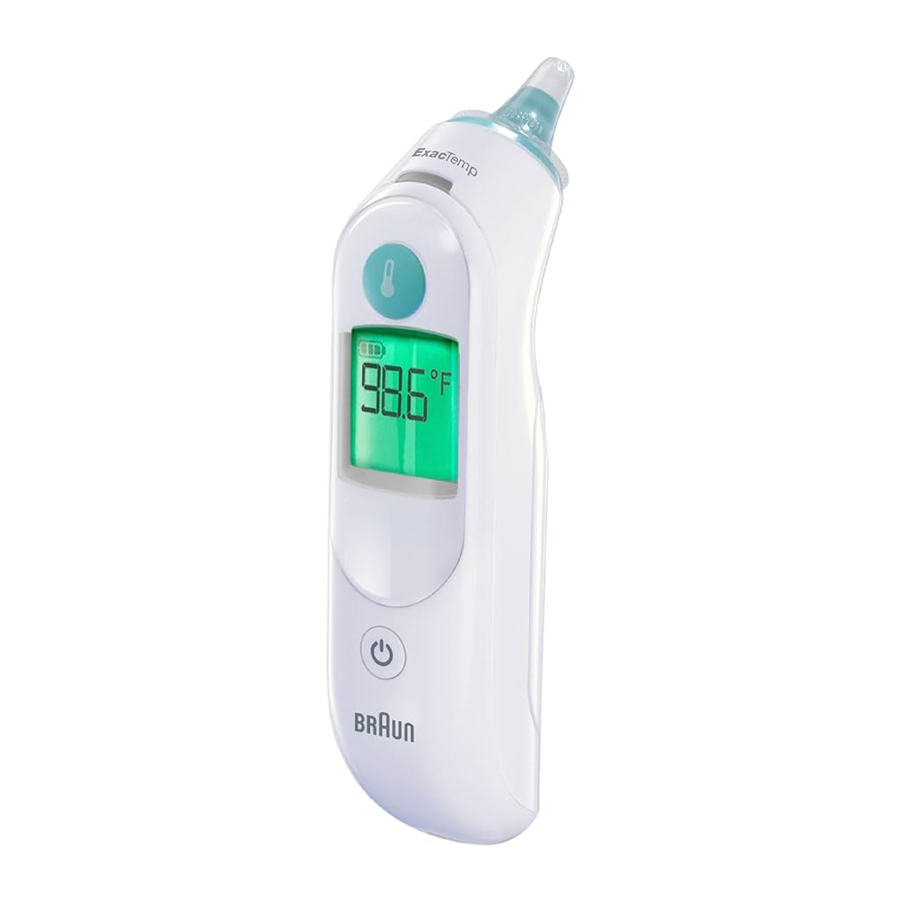

Product description

1. Lens filter (Box of 20)
2. Probe tip
3. Probe
4. ExacTemp ® light
5. Lens filter ejector

6. Display
7. Power button
8. Start button
9. Battery door
10. Protective case

The Braun ThermoScan thermometer has been carefully developed for accurate, safe and fast temperature measurements in the ear.
The shape of the thermometer probe prevents it from being inserted too far into the ear canal, which can hurt the eardrum.
However, as with any thermometer, proper technique is critical to obtaining accurate temperatures. Therefore, read the instructions carefully and thoroughly.
The Braun ThermoScan thermometer is indicated for intermittent measurement and monitoring of human body temperature for people of all ages. It is intended for household use only.
Use of IRT6515 along with Fever guidance feature is not intended as a substitute for consultation with your physician.

Body temperature

Normal body temperature is a range. It varies by site of measurement, and it tends to decrease with age. It also varies from person to person and fluctuates throughout the day. Therefore, it is important to determine normal temperature ranges. This is easily done using Braun ThermoScan. Practice taking temperatures on yourself and healthy family members to determine the normal temperature range.
Note: When consulting your physician, communicate that the ThermoScan temperature is a temperature measured in the ear and if possible, note the individual's normal ThermoScan temperature range as additional reference.

Fever guidance feature

Temperature guidance helps you to better understand the meaning of your child's temperature with the color indicated on the display. The screen displays a green, yellow, or red backlight depending on the temperature reading.
It is important to note that a patient's temperature may be impacted by age, gender or medical condition, or by factors such as ambient temperature, time of day, medications taken or the temperature measurement site1.

Note: Backlight remains OFF when below temperature readings are registered: 93.2≤T≤ 108°F (34 ≤ T ≤ 42.2°C)

How does Braun ThermoScan work?

Braun ThermoScan measures the infrared heat generated by the eardrum and surrounding tissues. To help avoid inaccurate temperature measurements, the probe tip is warmed to a temperature close to that of the human body. When the Braun ThermoScan is placed in the ear, it continuously monitors the infrared energy. The measurement is finished and the result displayed when the thermometer detects that an accurate temperature measurement has been taken.

Why measure in the ear?

The goal of thermometry is to measure core body temperature^[2], which is the temperature of the vital organs. Ear temperatures accurately reflect core body temperature,^[3] since the eardrum shares blood supply with the temperature control center in the brain,^[4] the hypothalamus. Therefore, changes in body temperature are reflected sooner in the ear than at other sites. Axillary temperatures measure skin temperature and may not be a reliable indicator of core body temperature. Oral temperatures are influenced by drinking, eating and mouth breathing. Rectal temperatures often lag behind changes in core body temperature and there is a risk of cross-contamination.

How to use your Braun ThermoScan

1. Remove the thermometer from the protective case.

2. Push the Power button . During an internal self-check, the display shows all segments. Then the last temperature taken will be displayed for 5 seconds.

3. The lens filter indicator will blink to signal one is needed. To achieve accurate measurements, make sure a new, clean lens filter is in place before each measurement. Attach a new lens filter by pushing the thermometer probe straight into the lens filter inside the box and then pulling out. Note: The Braun ThermoScan will not work unless a lens filter is attached. The thermometer is ready to take a temperature when the display looks like the following image:



4. Fit the probe snuggly into the ear canal, then push and release the Start button .

5. ExacTemp light will pulse while temperature measurement is in progress. The light will remain solid for 3 seconds to indicate that a successful temperature reading has been achieved.
   NOTE: If the probe has been properly inserted into the ear canal during the measurement, a long beep will sound to signal the completed measurement. If the probe has NOT been constantly placed in a stable position in the ear canal, a sequence of short beeps will sound, the ExacTemp light will go out and the display will show an error message (POS = position error).
   See «Errors and troubleshooting» section for more information.

6. The confirmation beep indicates that an accurate temperature measurement has been taken. The result is shown on the display. Temperature reading displayed is an equivalent of oral temperature. To repeat Go to step 3.
7. For the next measurement, press Eject button to remove and discard used lens filter, and put on a new, clean lens filter. The Braun ThermoScan ear thermometer turns off automatically after 60 seconds of inactivity. The thermometer can also be turned off by pressing the Power button . The display will briefly flash OFF and it will go blank.


Temperature-taking hints

ALWAYS replace disposable lens filters to maintain accuracy and hygiene. A measurment taken in the right ear may differ from a measurement taken in the left ear. Therefore, ALWAYS take the temperature in the same ear. The ear must be free from obstructions or excess earwax build-up to take an accurate reading.
External factors may influence ear temperatures, including when an individual has:

Factor	Affects
Poor probe placement
Used lens filter
Dirty lens
In the cases below, wait 20 minutes prior to taking a temperature.
Extreme hot and cold room temperature
Hearing aid

Use the untreated ear if ear drops or other ear medications have been placed in the ear canal. Use the ear that has been facing upwards, if an individual has been lying down on their side with an ear facedown on a pillow.

Memory mode

1. The last temperature taken is stored in the memory and will be automatically displayed for 5 seconds when it is turned on again.


Night light feature

The thermometer includes a convenient night light to illuminate the display in a dim environment.
The light will turn on when you press any button. It will stay on until the thermometer is inactive for up to 15 seconds even after temperature is taken.

Changing the temperature scale

Your Braun ThermoScan is shipped with the Fahrenheit (°F) temperature scale activated. If you wish to switch to Celsius (°C) and/or back from Celsius to Fahrenheit, proceed as follows:

1. Make sure the thermometer is turned off.
2. Press and hold down the Power button the display will show this sequence: °F / SET / °C / SET. . After about 3 seconds
3. Release the Power button when the desired temperature scale is shown. There will be a short beep to confirm the new setting, then the thermometer is turned off automatically.

Care and cleaning

The probe tip is the most delicate part of the thermometer.
It must be clean and intact to ensure accurate readings.
If the thermometer is ever accidentally used without a lens filter, clean the probe tip as follows:
Very gently wipe the surface with a cotton swab or soft cloth moistened with alcohol. After the alcohol has completely dried out, you can put a new lens filter on and take a temperature measurement.
If the probe tip is damaged, please contact Consumer Relations.
Use a soft, dry cloth to clean the thermometer display and exterior. DO NOT use abrasive cleaners. NEVER submerge this thermometer in water or any other liquid. Store thermometer and lens filters in a dry location free from dust and contamination and away from direct sunlight.
Additional lens filters (LF 40) are available at most stores carrying Braun ThermoScan.

Replacing the batteries

1. The thermometer is supplied with two 1.5 V type AA (LR 06) batteries. For best performance, we recommend Duracell^® alkaline batteries. Insert new batteries when the battery symbol appears on the display.
2. Open the battery compartment. Remove the batteries and replace with new batteries, making sure the poles are in the right direction. Snap battery door into place.
3. Only discard empty batteries. To protect the environment, dispose of empty batteries at your retail store or at appropriate collection sites according to national or local regulations.

Calibration

The thermometer is initially calibrated at the time of manufacture. If this thermometer is used according to the use instructions, periodic re-adjustment is not required. If at any time you question the accuracy, please contact Consumer Relations.

Errors and troubleshooting

Error message	Situation	Solution
	No lens filter is attached.	Attach new, clean lens filter.
	The thermometer probe was not positioned securely in the ear. An accurate measurement was not possible. POS = position error	Check if the positioning of the probe is correct and remains stable. Replace lens filter and reposition. Press Start button to begin a new measurement.
	Ambient temperature is not within the allowed operating range (50 – 104°F or 10 – 40°C).	Allow the thermometer to remain for 30 minutes in a room where the temperature is between 50 and 104°F or 10 and 40°C.
	Temperature taken is not within typical human temperature range (93.2 – 108°F or 34 – 42.2°C). HI = too high LO = too low	Make sure the probe tip and lens are clean and a new, clean lens filter is attached. Make sure the thermometer is properly inserted. Then, take a new temperature.
	System error – self-check display flashes continuously and will not be followed by the ready beep and the ready symbol or screen is blank. If error persists, If error persists, If error still persists,	Wait 1 minute until the thermometer turns off automatically, then turn on again. ... reset the thermometer by removing the batteries and putting them back in. ... replace the batteries with new batteries. ... please contact the Service Center.
	Battery is low, but thermometer will still operate correctly.	Insert new batteries.
	Battery is too low to take correct temperature measurement.	Insert new batteries.

Product specifications

Clinical accuracy characteristics and calibration procedures are available upon request.
This thermometer is specified to operate at a pressure of 1 atmosphere or at altitudes with an atmospheric pressure up to 1 atmosphere. (700 - 1060 hPa).

Type BF Applied Part	See Instructions for use	Operating temperature	Storage temperature	Keep it dry	Attention, consult accompanying documents

WARNINGS AND PRECAUTIONS

• Please consult your physician if you see symptoms such as unexplained irritability, vomiting, diarrhea, dehydration, changes in appetite or activity, seizure, muscle pain, shivering, stiff neck, pain when urinating, etc. in spite of any color of the background light or absence of fever.
• Please consult your physician if the thermometer shows elevated temperature (yellow or red background lights).

The operating ambient temperature range for this thermometer is 50 – 104°F (10 – 40°C).
DO NOT expose the thermometer to temperature extremes (below –13°F / –25°C or over 131°F / 55°C) or excessive humidity (> 95% RH). This thermometer must only be used with genuine Braun ThermoScan lens filters (LF 40).
To avoid inaccurate measurements ALWAYS use this thermometer with a new, clean lens filter attached. If the thermometer is accidentally used without a lens filter attached, clean the lens (see «Care and cleaning» section). Keep lens filters out of reach of children.
This thermometer is intended for household use only. Use of this thermometer is not intended as a substitute for consultation with your physician.
This thermometer is not intended for pre-term babies or small-for-gestational-age babies. This thermometer is not intended for pre-term babies or small-for-gestational age newborn (birth to 4 weeks of age) babies. Pre-term is defined as babies born before 37 weeks of gestation. Small-forgestational-age is defined as a newborn baby, born at 37 weeks or later, with a weight below the 10th percentile for newborn babies of the same gestational age.
Nursing mothers should not take a temperature measurement on themselves or have their temperature measured by another individual while or immediatley after nursing a baby, as nursing can affect body temperature.
It is not intended to interpret hypothermic temperatures. If the device displays a temperature of 97.5°F (36.4°C) or less with an LED backlight color of green or white, and the individual is exhibiting atypical symptoms or behaviors, contact your doctor or health care professional.
DO NOT allow children under 12 years to take their temperature unattended.
DO NOT modify this equipment without authorization of the manufacturer.
People who are on antibiotics, analgesics, or antipyretics should not be assessed solely on temperature readings to determine the severity of their illness.
Temperature elevation may signal a serious illness, especially in neonates and infants, or in adults who are elderly, frail, or have a weakened immune system. Please seek professional advice immediately when there is a temperature elevation and if you are taking temperature on:

• Neonates and infants under 3 months (Consult your physician immediately if the temperature exceeds 99.4°F or 37.4°C).
• Individuals having diabetes mellitus or a weakened immune system (e.g. HIV positive, cancer chemotherapy, chronic immunosuppressant treatment, splenectomy)
• Individuals who are bedridden (e.g. paraplegia, quadriplegia, stroke, chronic illness, surgical recovery, nursing home patient, stroke, chronic illness, recovering from surgery).
• A transplant recipient (e.g., liver, heart, lung, kidney).
  This thermometer contains small parts that can be swallowed or produce a choking hazard to children. Keep out of reach of children under 12 years.
