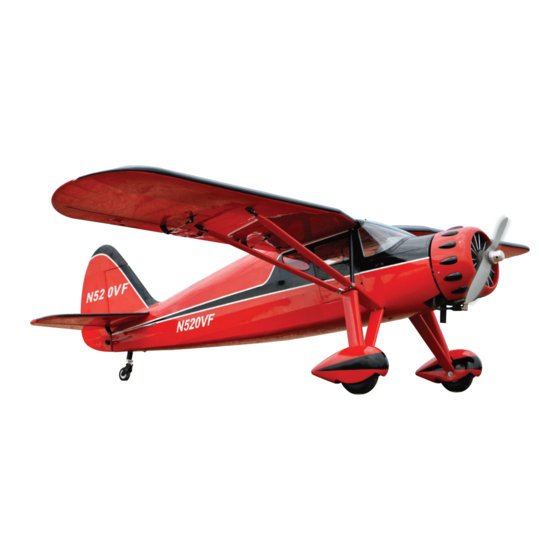

FAIRCHILD 24W
Gas and EP
ONLY INCLUDING OLEO STRUTS.
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
95% ALMOST READY TO FLY
SPECIFICATION
- Wingspan: 2,357 mm (92.79 in).
- Length: 1,610 mm (63.38 in).
- Weight: 7 kg (15.4 lbs).
- Wing area: 78.1 dm2.
- Wing loading: 89.62 g/dm2.
- Servo mount: 42mm x 21mm.
- Wing type: Naca Airfoil.
- Spinner: scale type (not included).
- Main gear type: Oleo struts,
for tail gear (included).
Instruction Manual Book
Parts listing required (not included):
- Radio: 06 channels minimum.
- Servo: 08 servos.
- Engine: 30 – 35cc gas (NGH 35cc recommended)
- Motor: Brushless outrunner 2500 - 3000W,
245KV.
- Propeller: Suit with your engine.
Recommended Motor and Battery set up
(not included):
- Motor: Admiral GP26 6330-245kV
- Lipo cell: 8-10 cells 4000 – 5500 mAh.
- Receiver battery: 6V/ 1200 – 2000 mAh.
- ESC: 80 - 120A.
Item code: BH177
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAIRCHILD 24W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model FAIRCHILD 24W

Summary of Contents for Black Horse Model FAIRCHILD 24W

  • Page 1 Instruction Manual Book Item code: BH177 FAIRCHILD 24W Gas and EP ONLY INCLUDING OLEO STRUTS. ALL BALSA - PLY WOOD CONSTRUCTION. COVERED WITH ORACOVER. 95% ALMOST READY TO FLY SPECIFICATION Parts listing required (not included): - Wingspan: 2,357 mm (92.79 in).

  • Page 2: Table Of Contents

    Thank you for purchasing Black Horse Model products. With over 18 years experience in production and fly testing, Black Horse Model is committed to bring the best quality products and good service to customers. Along with a team of creative engineers and skilled workers, we will always accompany with customers by our great experiences, fully enthusiasm...

  • Page 3: Warranty

    In that Black Horse Model has no control over the final assembly or material used for final assembly, SUGGESTION Black Horse Model is not responsible for loss of use , or other incidental or consequential damages. To avoid scratching your new airplane, do not...

  • Page 4: Covering Tools

    FAIRCHILD Item code: BH177 Instruction Manual FLIGHT WARNINGS ADHESIVES AND REQUIRED TOOLS When ready to fly, first extend the transmitter aerial. Thin CA Switch on the transmitter. 30-minute epoxy Switch on the receiver. 6-minute epoxy Check that the wings are correctly fitted to the Threadlocker thread locking cement fuselage.
  • Page 5 FAIRCHILD Item code: BH177 Instruction Manual • Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within the Team AMA Program Document. (AMA Document #718.) (j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A.) 3.

  • Page 6: Parts Listing (Not Included)

    FAIRCHILD Item code: BH177 Instruction Manual PARTS LISTING (NOT INCLUDED). Servo extension leads....pcs. 330mm ..2 pcs. Engine: 33 - 35 cc gas 220mm ..4 pcs. Propeller. Suit with your engine. LiPo. 4S - 14.8V- 4,000 - 5,500mAh. 2 Packs Motor: Admiral GP26 6330 ..
  • Page 7 FAIRCHILD Item code: BH177 Instruction Manual : Wing struts aluminium (15a, 15b). : Fuselage. : Wing panel ( 2a, 2b ). : Plastic cover oleo struts gear (16a, 16b). : Horizontal stabilizer ( 3a, 3b ). : Steel oleo struts gear (17a, 17b). Vertical stabilizer : Steel struts gear (18a, 18b).

  • Page 8: Preparations

    FAIRCHILD Item code: BH177 Instruction Manual PREPARATIONS Use a covering iron with a covering sock on high heat to tighten the covering if necessary. Apply pressure over sheeted areas thoroughly bond the covering to the wood. INSTALLING THE AILERONS AND FLAPS 44mm Pinned hinge - - - - - - - - - - - - - 6 Main Wing...

  • Page 9: Installing The Ailerons And Flap Servos

    FAIRCHILD Item code: BH177 Instruction Manual Left wing Bottom view Right wing Bottom view INSTALLING THE AILERON AND FLAP SERVO Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, remove the Install the rubber grommets and brass eyelets masking tape and the servo lead from the...
  • Page 10 FAIRCHILD Item code: BH177 Instruction Manual 3mm Flat Washer Horn Ball link 3x15mm Tp Screw 2x10mm Tp Screw - - - - - - - 6 - - - - 4 - - - - 8 - - - - 2 - - - - 16 3x12mm Cap Screw Plastic...
  • Page 11 FAIRCHILD Item code: BH177 Instruction Manual Aileron Aileron servos. 2 mm approx.16mm 3mm Flat Washer Aileron Aileron 3mm Hex Nut 3x12mm Cap Screw Aileron Aileron 1.5mm Screw 2x10mm Tp Screw Aileron 1.5mm Cut off shaded portion Drill holes using the stated. carefully.
  • Page 12 FAIRCHILD Item code: BH177 Instruction Manual For Flaps For Aileron 2x10mm Tp Screw Bottom View Aileron Aileron Aileron 3x15mm Tp Screw Horn 3x12mm Cap Screw Aileron Aileron C . A Bottom View Flap Flap Flap 3x12mm 3x15mm Tp Screw Cap Screw Horn Cut off shaded portion carefully.

  • Page 13: Installing The Main Landing Gear And Main Wing Struts

    FAIRCHILD Item code: BH177 Instruction Manual INSTALLING THE MAIN LANDING GEAR AND MAIN WING STRUTS 5 x 60mm Socket Head 4 x 20mm Cap Screw Cap Screw 115mm - - - - 2 4mm Flat Washer 5mm Hex Nut 5mm Collar Nylon 4mm Spring Washer 3 x 10mm Button Screw 16x5mm Flat Washer...
  • Page 14 FAIRCHILD Item code: BH177 Instruction Manual Wheel Pants BOTTOM VIEW Aluminium Man Gear Aluminium Man Gear Wing Struts Aluminium Wing Struts Aluminium 4x20mm 4mm Flat Cap Screw Washer 4mm Spring Washer Apply threadlocker (screw cement).
  • Page 15 FAIRCHILD Item code: BH177 Instruction Manual BOTTOM VIEW Balsa Plywood Balsa Plywood Cover Aluminium Cover Aluminium Gear Gear BOTTOM VIEW Apply epoxy glue.
  • Page 16 FAIRCHILD Item code: BH177 Instruction Manual BOTTOM VIEW Balsa Wood Cover Wing Struts Aluminium Balsa Wood Cover Wing Struts Aluminium Apply epoxy glue.
  • Page 17 FAIRCHILD Item code: BH177 Instruction Manual Plastic Cover Oleo Struts Gear Steel Oleo Struts Gear 35mm Apply epoxy glue. Assemble left and right sides the same way.
  • Page 18 FAIRCHILD Item code: BH177 Instruction Manual 3x6mm Button Screw 3x6mm Button Screw Collar Collar BOTTOM VIEW...
  • Page 19 FAIRCHILD Item code: BH177 Instruction Manual Close Screw BOTTOM VIEW Assemble left and right sides the same way.
  • Page 20 FAIRCHILD Item code: BH177 Instruction Manual 5x50mm Socket Head Cap Screw 16x5mm Flat Washer 5mm Collar Nylon 16x5mm Flat Washer 5mm Hex Nut 5mm Hex Nut 16x5mm Flat Washer 115mm Wheel BOTTOM VIEW Wheel Pant Steel Oleo Struts Gear 16x5mm Flat Washer Aluminium Main gear 5mm Hex Nut...
  • Page 21 FAIRCHILD Item code: BH177 Instruction Manual BOTTOM VIEW Assemble left and right sides the same way. BOTTOM VIEW...
  • Page 22 FAIRCHILD Item code: BH177 Instruction Manual 4x20mm Cap Screw TOP VIEW 4x20mm Cap Screw 4mm Spring Wahser 4mm Spring Washer 4mm Flat Wahser 4mm Flat Washer TOP VIEW Close Screw Assemble left and right sides the same way.

  • Page 23: Horizontal Stabilizer Installation

    FAIRCHILD Item code: BH177 Instruction Manual TOP VIEW HORIZONTAL STABILIZER INSTALLATION 1. Using a modeling knife, cut away the covering When you are sure that everything is aligned correctly, mix up a generous amount of 30 minute from the fuselage for the stabilizer and remove it. epoxy.
  • Page 24 FAIRCHILD Item code: BH177 Instruction Manual Pinned Hinge Warning! Make certain plane is aligned accurately per the diagram. A mis-aligned plane can fly erraticaliy and cause accidents. TOP VIEW C . A TOP VIEW Apply instant glue (C.A glue, super glue). Apply epoxy glue C .

  • Page 25: Rudder Installation

    FAIRCHILD Item code: BH177 Instruction Manual B’ A’ RUDDER INSTALLATION 67mm Pinned Hinge - - - - 4 Pinned Hinge TOP VIEW Apply epoxy glue Cut off shaded portion...

  • Page 26: Installing The Rudder Linkages

    FAIRCHILD Item code: BH177 Instruction Manual INSTALLING THE RUDDER LINKAGES 3x12mm Cap Screw 3mm Flat Washer Horn - - - - - 1 Horn - - - - - - - - - - - - 1 3x12mm Cap Screw Aluminium ball - - - - - - 2 - - - - - - - - - - - - 2...
  • Page 27 FAIRCHILD Item code: BH177 Instruction Manual 3x12mm 3mm Flat Washer Rudder servo 3mm Hex Nut Pay close attention here Must be purchased separately! Cut off shaded portion...

  • Page 28: Installing The Elevator Linkages

    FAIRCHILD Item code: BH177 Instruction Manual INSTALLING THE ELEVATOR LINKAGES Repeat these step as installing the aileron linkages. Horn 3x12mm Cap Screw - - - - - - 4 Aluminium ball 3x15mm Tp Screw - - - - - - 4 3mm Flat Washer Aluminium ball 2.6 x 956mm Push rod...
  • Page 29 FAIRCHILD Item code: BH177 Instruction Manual 3x12mm Cap Screw 3mm Flat Washer 3mm Hex Nut Elevator Servo 3mm Flat Washer 3x12mm Cap Screw Rudder Servo 3mm Hex Nut Elevator Servo...

  • Page 30: Installing The Tail Gear - Rudder

    FAIRCHILD Item code: BH177 Instruction Manual INSTALLING THE TAIL GEAR - RUDDER 5x25mm Socket Head 47mm Wheels Cap Screw - - - - - - - - 1 1100mm Cable rod - - - - - 2 5mm Lock Nut - - - - - 1 3x16mm Button Head Cap Screw...
  • Page 31 FAIRCHILD Item code: BH177 Instruction Manual Crimp Crimp Cable rod Cut off excess. 3mm Flat Washer 3mm Spring Washer 3x16mm Button Head Cap Screw BOTTOM VIEW...
  • Page 32 FAIRCHILD Item code: BH177 Instruction Manual BOTTOM VIEW Servo tail gear Metal Clevis Cab link Hex Nut Cut off excess. Must be purchased Cut off shaded portion separately! carefully. Drill holes using the stated. (in this case 1.5mm 1.5mm Pay close attention here.
  • Page 33 FAIRCHILD Item code: BH177 Instruction Manual TOP VIEW Bottom View...
  • Page 34 FAIRCHILD Item code: BH177 Instruction Manual BOTTOM VIEW Open / Close BOTTOM VIEW...
  • Page 35 FAIRCHILD Item code: BH177 Instruction Manual 44mm Pinned hinge - - - - - - - - - - - - - 4 TOP VIEW TOP VIEW Open / Close Cut off shaded portion carefully. Apply epoxy glue. Assemble left and right sides the same way.
  • Page 36 FAIRCHILD Item code: BH177 Instruction Manual INSTALLING THE ENGINE May be you also need to trim some wood from the tri-angle Using plate of plywood (supplied with the kit) mark the holes wood for the installation is easy. onto the fire wall for installing the engine mount for DLE-35CC or OS-33CC.

  • Page 37: Installing The Engine

    FAIRCHILD Item code: BH177 Instruction Manual INSTALLING THE ENGINE 12x60mm Aluminium 5mm Flat Washer 16x5mm Flat Washer Connector M5 Blind Nut - - - - - - - 4 - - - - - - - 4 - - - - - - - 4 - - - - - - - - 1 - - - - - - - - 4 5x90mm Socket Head...

  • Page 38: Installing The Throttle

    FAIRCHILD Item code: BH177 Instruction Manual TOP VIEW Throttle Lever Choke Lever INSTALLING THE THROTTLE Connector 1. Plug the throttle servo into the receiver and turn on the radio system. Check to ensure that the throttle servo output shaft is moving in the correct direction.
  • Page 39 FAIRCHILD Item code: BH177 Instruction Manual TOP VIEW Throttle servo 1.5mm...

  • Page 40: Installing The Stopper

    FAIRCHILD Item code: BH177 Instruction Manual INSTALLING THE STOPPER Cut off shaded portion...

  • Page 41: Installing The Fuel Tank

    FAIRCHILD Item code: BH177 Instruction Manual INSTALLING THE FUEL TANK 5. When satisfied with the alignment of the stopper assembly tighten the 3mm x 20mm machine screw until the rubber stopper expands and 1. Using a modeling knife, cut one length of silicon seals the tank opening.

  • Page 42: Mounting The Cowl

    FAIRCHILD Item code: BH177 Instruction Manual MOUNTING THE COWL 4. While holding the cowl firmly in position, drill 1. Remove the muffler and needle valve assembly four 1,6mm pilot holes through both the cowl from the engine. Slide the fiberglass cowl over the and the side edges of the firewall.
  • Page 43 FAIRCHILD Item code: BH177 Instruction Manual TOP VIEW...
  • Page 44 FAIRCHILD Item code: BH177 Instruction Manual TOP VIEW C . A 3x12mm Tp Screw TOP VIEW C . A 3x12mm Tp Screw Drill holes using the stated. (in this case 2.5mm 2.5mm Apply instant glue (C.A glue, super glue). C . A...

  • Page 45: Installing The Propeller

    FAIRCHILD Item code: BH177 Instruction Manual INSTALLING THE PROPELLER TOP VIEW TOP VIEW Must be purchased separately!

  • Page 46: Installing Balsa Plywood Wing Struts

    FAIRCHILD Item code: BH177 Instruction Manual INSTALLING BALSA PLYWOOD WING STRUTS Ball link 3x12mm Cap Screw - - - - - - 4 - - - - - - - 4 3mm Spring W asher Machined Strut Attachment - - - - - - - 4 Steel Strut Attachment - - - - - - 4 Hair Pin...

  • Page 47: Secure The Wing To The Fuselage

    FAIRCHILD Item code: BH177 Instruction Manual SECURE THE WING TO THE FUSELAGE 25mm Aluminium tube. Attach the wings to the fuselage and secure the 732mm wing panels. TOP VIEW 4x15mm TOP VIEW...

  • Page 48: Installing The Receiver And Battery

    FAIRCHILD Item code: BH177 Instruction Manual Cap screw for main wing fixture TOP VIEW INSTALLING THE RECEIVER AND BATTERY INSTALLING THE SWITCH 1. Plug the servo leads and the switch lead into the 1. The switch should be mounted on the fuselage receiver.

  • Page 49: Installing The Electric Motor (Ep Version)

    FAIRCHILD Item code: BH177 Instruction Manual Switch TOP VIEW Battery Receiver Battery Switch Must be purchased separately! INSTALLING THE ELECTRIC MOTOR (EP VERSION) 4mm Flat Washer 10x20mm Aluminium - - - - - - - - 4 - - - - - 4 4 mm Spring Washer 4x40mm Socket Head Cap Screw...
  • Page 50 FAIRCHILD Item code: BH177 Instruction Manual 10x20mm Aluminium 4mm Spring Washer 4mm Flat Washer 4x40mm Socket Head Cap Screw TOP VIEW 4mm Spring Washer 4mm Flat 12x60mm Washer Aluminium 5x90mm Socket Head Cap Screw Apply threadlocker Must be purchased (screw cement). separately!
  • Page 51 FAIRCHILD Item code: BH177 Instruction Manual Battery Cord TOP VIEW Zip tie When rotating clock wise, change the connection of 2 wires. TOP VIEW Must be purchased separately!

  • Page 52: Installing Cockpit Fuselage

    FAIRCHILD Item code: BH177 Instruction Manual INSTALLING COCKPIT FUSELAGE Position the canopy so the rear frame on the canopy is aligned with the rear edge of the cockpit opening. Use canopy glue to secure the canopy to the canopy hatch. Use low-tack tape to hold the canopy in position until the glue fully cures.
  • Page 53 FAIRCHILD Item code: BH177 Instruction Manual Adhesive tape. Canopy glue TOP VIEW Open / Close TOP VIEW Apply epoxy glue.

  • Page 54: Balancing

    FAIRCHILD Item code: BH177 Instruction Manual LATERAL BALANCE BALANCING 1. It is critical that your airplane be balanced correctly. After you have balanced a plane on the C.G. Improper balance will cause your plane to lose You should laterally balance it. Doing this will control and crash.
  • Page 55 FAIRCHILD Item code: BH177 Instruction Manual Cut off excess. In order to obtain the CG specified, reposition the receiver and other equipment. If not obtain the CG specified, add a weight and Do not fly before confirming the adjust. correct location of the CG. If the CG is incorrect, you lose control of your airplane which leads to accidents.

  • Page 56: Control Throws

    FAIRCHILD Item code: BH177 Instruction Manual FLIGHT PREPARATION PRE FLIGHT CHECK CONTROL THROWS 1) Completely charge your transmitter and We highly recommend setting up a plane using receiver batteries before your first day of flying. the control throws listed. 2) The control throws should be measured at the 2) Check every bolt and every glue joint in your widest point of each control surface.

  • Page 57: For Your Radio Installation Basic Connection For Airplane And Adjustment Of Servos

    FAIRCHILD Item code: BH177 Instruction Manual 25mm Flap Control FOR YOUR RADIO INSTALLATION BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS Example of connection For more information, refer to radio system instruction manual. Follow instruction manual of Engine and Battery. Aileron Servo Aileron Engine...

  • Page 58: Main Gear Dimensional Detail

    FAIRCHILD Item code: BH177 Instruction Manual MAIN GEAR DIMENSIONAL DETAIL 81mm 39mm 66mm 41mm 245mm TAIL GEAR DIMENSIONAL DETAIL 47mm 134mm...

  • Page 59: Decoration

    FAIRCHILD Item code: BH177 Instruction Manual DECORATION Top view Bottom view < Side view > Left < Side view > Right #21- 023 - Ferri Red #21- 071 - Black #21- 010 - White...

  • Page 60: Exploded View

    FAIRCHILD Item code: BH177 Instruction Manual...
  • Page 61 I/C FLYING WARNINGS Always operate in open areas, away from fly near power lines,aerials or AL WAYS adjust the engine from behind NEVER factories, hospitals, schools, buildings other dangerous areas including airports, the propeller, and do not allow any part of and houses etc.
