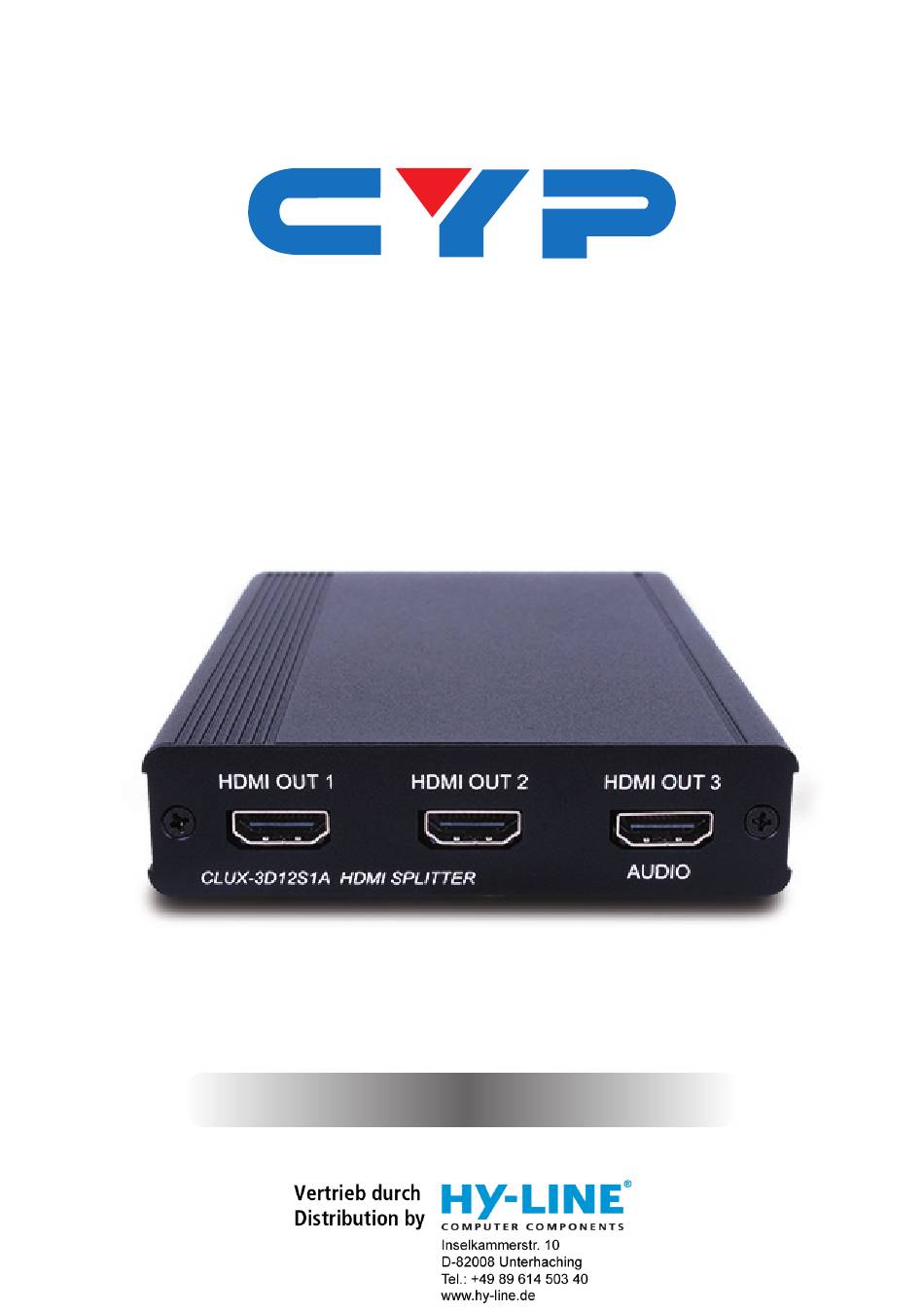

- Page 1 CLUX-3D12S1A 1 × 2 HDMI Splitter with 3D Audio to Amplifier Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8. -
Page 6: Introduction
1. INTRODUCTION The 1 x 2 HDMI Splitter with audio is fully compliant with HDMI and allows the output from any HDMI equipped device to be split and allow connection to up to two HDTV displays e.g. an LCD TV and a projector in the same room. -
Page 7: Features
5. FEATURES • HDMI, HDCP1.1 and DVI 1.0 compliant Receiver • Deep Color video up to 12-bit, 1080p@24/60 Hz • One HDMI source to connect up to two HDMI displays simultaneously • One audio-only HDMI output connected to AVR • Splits a HDMI source to two outputs without signal loss •... -
Page 8: Operation Controls And Functions

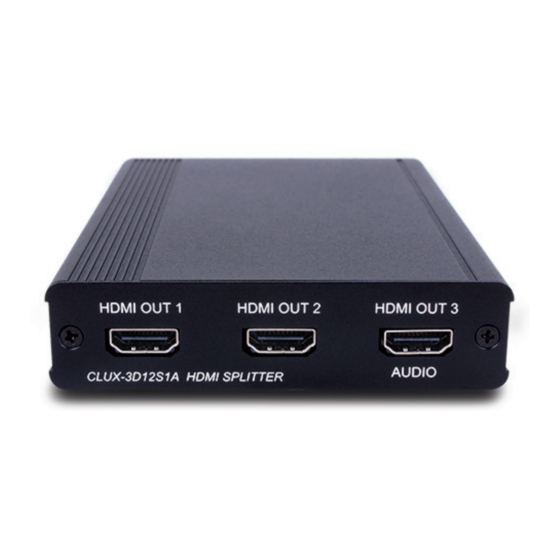

HDMI OUT 1 HDMI OUT 2 HDMI OUT 3 AUDIO CLUX-3D12S1A HDMI SPLITTER HDMI OUT 1 & 2 Connect each of the output ports to a HDMI equipped video display such as TV or projector. HDMI OUT 1 is the master video port and the device will send the video content according to that connected display's EDID information. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V HDMI IN POWER HDMI IN Connect the HDMI or DVI output of your source equipment such as 3D Blu-ray player or set-top box. POWER/3D INDICATOR When the system is ON the RED LED will illuminate when the system detects a 3D formatted video signal the GREEN LED will illuminate. -
Page 10: Connection Diagram
POWER Front HDMI OUT 1 HDMI OUT 2 HDMI OUT 3 AUDIO CLUX-3D12S1A HDMI SPLITTER HDMI AVR with HDMI Input (Non-3D Ready) 3D Ready TV Projector In this example, when the input signal is of 3D format, only HDMI OUT 1 will have picture, while HDMI OUT 2 won't because the projector is non 3D-ready. -
Page 11: Specifications
8. SPECIFICATIONS Input Port 1×HDMI Output Port 2×HDMI 1×HDMI (For audio only with Blue Screen) Input Resolution 480i ~1080p 50/60, VGA~WUXGA Output Resolution 480i ~1080p 50/60, VGA~WUXGA HDMI Cable In/Out Up to 15M with 8 or 12 bits Distance Audio output Up to 192kHz ESD Protection Human Body model:... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDMI High Definition Multimedia Interface Audio Video Receiver... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
